Professional Outdoor Gobo Projection Light

TheZoom IP 600W/700W Rotating Gobo Projector Light is designed for architectural lighting, landmark projection and large outdoor events.

Featuring a powerful modular light source, rotating gobo effects and precise zoom control, it delivers bright, sharp and dynamic image projection for buildings, landscapes and stage environments.

Zoom IP 600w/700w 7pcs Picture Rotating Pattern Gobo Projector Light Application Scenarios
Bluesea Lighting's Zoom IP 600w/700w 7pcs Picture Rotating Pattern Gobo Projector Light is ideal for: architectural projection, landmark lighting, cultural tourism projects, building façade projection, theme parks, festivals and outdoor landscape lighting, creating vivid image projection and dynamic visual effects.

1. Light Source & Power

Input Voltage: AC100–240V / 50–60Hz
Maximum Power: 620W / 720W
Power Factor: PFC >0.98
Light Source Type: 600W / 700W Modular Light Source
Lamp Color Temperature: 7500K

2. Optics & Projection Effects

Beam Angle: 6°–50° Electronic Zoom
Electronic Focus: 10%–0–10%
Spot Shape: Circular
Flicker Speed: 1–20Hz / second

Color Wheel: 8 Colors + White
Rotating Pattern Wheel: 1 Rotating Disc + 7 Patterns + White
Pattern Rotation: Forward / Reverse with Positioning Function

Prism Effect: Rotating 4-Prism Effect (Customizable)
Framing System: 8 Controllable Light Cutters for Irregular Shape Projection

3. Control & Operation

Control Channels: 11–30 Channels
Control Protocol: DMX512 / RDM Bidirectional Control
Connection Method: Daisy-chain Connection

Display:LCD Color Screen (Chinese / English Switchable, Screen Flip)
Signal Interface: Waterproof Connector + XLR Male/Female Interface

Offline Operation Mode
Manual Adjustment System
Quick Image Change Window

4. Build, Cooling & Environment

Housing Material: Aluminum Alloy
Heat Dissipation: Conductive Cooling System
Ventilation:Equipped with Vent Valve and Air Vents

Protection System: Overheat Protection + Electronic Moisture-proof Treatment
Protection Rating: IP66 Waterproof

Operating Temperature: -25°C ~ +35°C
Noise Level: 35dB (0.5m)
Salt Spray Protection: Outdoor UV & Salt Spray Resistant Coating

Product Size: 547.5 × 298 × 358.6 mm
Net Weight: 28 kg

Zoom IP 600w/700w 7pcs Picture Rotating Pattern Gobo Projector Light Benefits

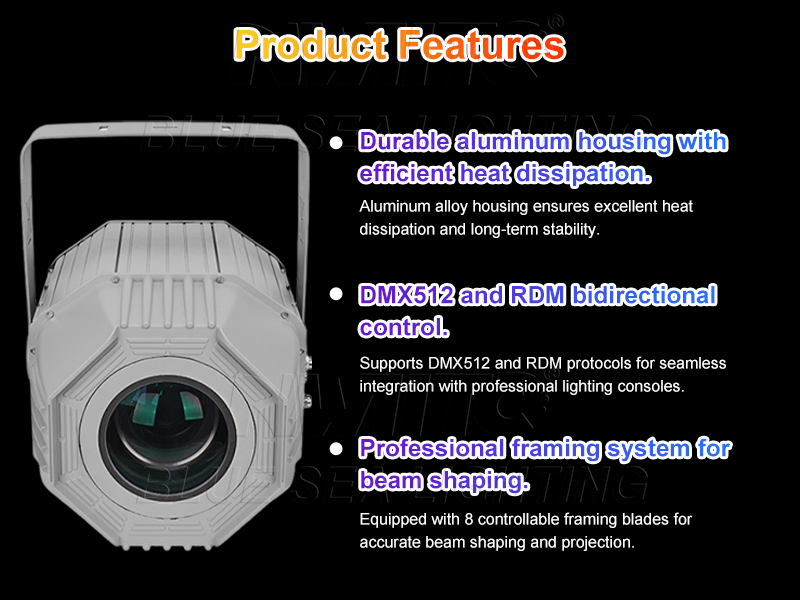

Durable Professional Design and Control

Built with a durable aluminum alloy housing and efficient heat dissipation system, the fixture ensures stable long-term performance.

It supports DMX512 and RDM bidirectional control, allowing seamless integration with professional lighting systems and enabling precise beam shaping with the framing system.

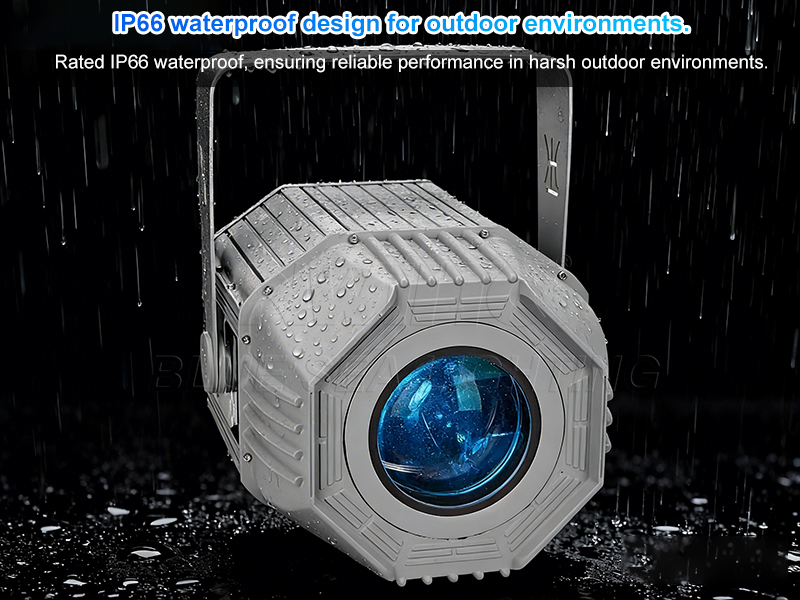

IP66 Waterproof for Outdoor Environments

Designed for demanding outdoor conditions, the projector features an IP66waterproof rating that ensures reliable performance in rain, humidity and harsh weather.

The robust structure makes it suitable for permanent outdoor installations, landscape lighting and architectural projection projects.

High-brightness Modular Light Source

Equipped with a 600W/700W modular light source, the projector delivers powerful brightness, sharp image projection and vivid gobo effects.

It is ideal for long-distance architectural lighting, helping patterns and graphics remain clear, bright and eye-catching on building surfaces.

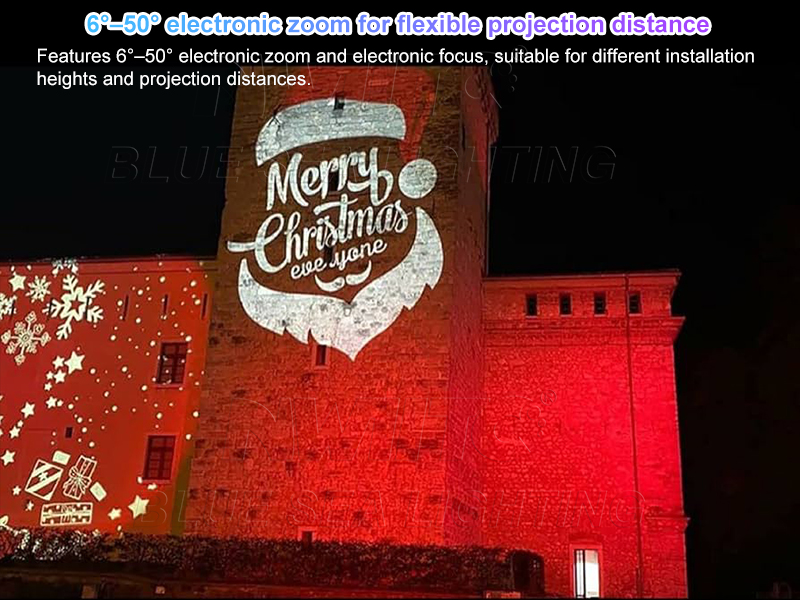

Flexible 6°–50° Electronic Zoom

The projector features a 6°–50° electronic zoom system with electronic focus, allowing flexible adjustment for different installation heights and projection distances.

This ensures clear image projection and accurate beam controlfor architectural lighting and outdoor projection mapping.

Why Choose Bluesea Lighting's Zoom IP 600w/700w 7pcs Picture Rotating Pattern Gobo Projector Light?

High-End Stage Lighting Quality — Without the High-End Price

With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, andcompetitive pricingto deliveroutstanding valuefor lighting professionals worldwide.

Dynamic Rotating Gobo Projection Effects

Equipped with a rotating gobo wheel and multiple projection patterns, the fixture creates vibrant and dynamic visual effects.

Ideal for architectural projection, cultural tourism lighting, landmark decoration and stage events, it allows buildings and landscapes to display creative graphic projections.

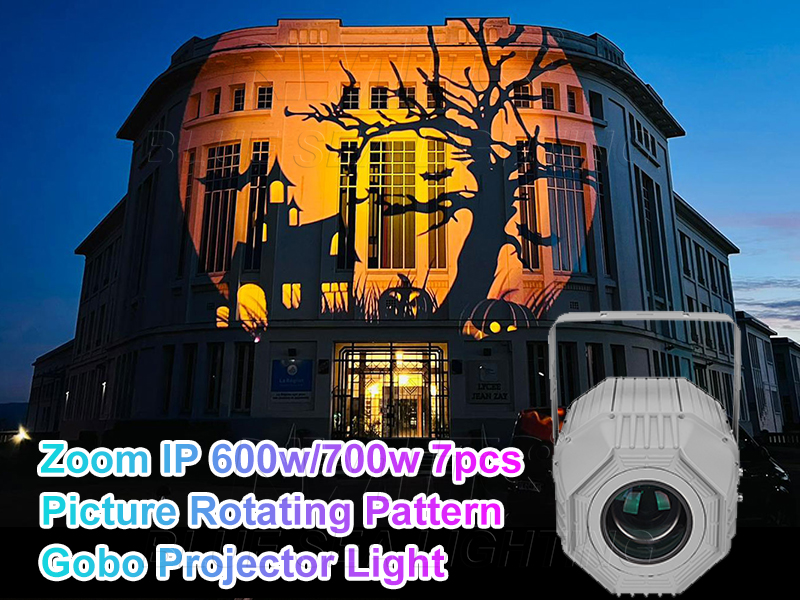

Creative Architectural Projection Effects

The projector creates vivid and large-scale architectural projection effects, transforming buildings into dynamic visual displays.

With sharp image clarity and vibrant colors, it is ideal for landmarks, cultural tourism lighting, festivals, theme parks and outdoor events, bringing creative patterns, graphics and animations to architectural surfaces.
