1. Product Overview

TheZoom IP 600W/700W Picture Rotating Pattern Gobo Projector Light with CMYK is designed for professional architectural projection and outdoor lighting applications.

Featuring high-brightness modular light sources, advanced CMYK color mixing, and rotating gobo projection, it deliversclear, vivid image projection and dynamic lighting effects for buildings, landmarks, events, and stage environments.

Zoom IP 600w/700w 7pcs Picture Rotating Pattern Gobo Projector Light With CMYK Application Scenarios
Bluesea Lighting's Zoom IP 600w/700w 7pcs Picture Rotating Pattern Gobo Projector Light With CMYK is ideal for: architectural projection, landmark lighting, cultural tourism projects, building façade projection, theme parks, festivals and outdoor landscape lighting, creating vivid image projection and dynamic visual effects.

1. Light Source & Power

Input Voltage: AC100–240V / 50–60Hz
Maximum Power: 620W / 720W
Power Factor: PFC >0.98
Light Source Type: 600W / 700W Modular Light Source
Lamp Color Temperature: 7500K

2. Optics & Projection Effects

Beam Angle: 6°–50° Electronic Zoom
Electronic Focus: 10%–0–10%
Spot Shape: Circular
Flicker Speed: 1–20Hz / second
Modulation Curve: Level 1

Color System: 8 Colors + White Light

Light Cutting System:
8 Controllable Framing Blades for Irregular Beam Shaping

Pattern System:
1 Rotating Pattern Disc + 7 Gobos + White

Pattern Rotation:
Forward / Reverse Rotation with Pattern Positioning

Prism Effect:
Rotating 4-Prism Effect (Customizable Prisms)

3. Control & Operation

Control Channels: 11–30 Channels

Control Protocol:
DMX512 / RDM Bidirectional Control

Connection Method: Daisy-chain Connection

Display:
LCD Color Screen (Chinese / English Switchable, Screen Flip)

Signal Interface:
Waterproof Connector + XLR Male/Female Interface

Operation Features:
Offline Automatic Operation
Manual Adjustment System
Quick Image Change Window

4. Build, Cooling & Environment

Housing Material: Aluminum Alloy

Heat Dissipation: Conductive Cooling System

Ventilation:Equipped with Vent Valve and Air Vents

Protection Functions:
Overheat Protection
Real-time Temperature Monitoring

Operating Environment: -25°C ~ +35°C

Noise Level: 35dB (0.5m)

Protection Level: IP66 Waterproof

Surface Treatment:
Professional Outdoor Paint, UV and Salt Spray Resistant

Product Dimensions: 547.5 × 298 × 358.6 mm
Product Weight: 28 kg

Zoom IP 600w/700w 7pcs Picture Rotating Pattern Gobo Projector Light With CMYK Benefits

2. CMYK Color Mixing System

Equipped with an advanced CMYK color mixing system, the projector deliverssmooth and precise color transitions.

This system allows flexible color adjustment for creative projection mapping, decorative lighting, and architectural illumination, producing rich and vibrant projection visuals.

3. 6°–50° Electronic Zoom Projection

The projector features 6°–50° electronic zoom with motorized focus, enabling flexible adjustment for different projection distances and installation heights.

This capability ensures sharp and clear image projection on buildings, walls, and large outdoor surfaces.

4. High-Brightness Modular Light Source

Powered by a 600W / 700W high-brightness modular light source, the fixture delivers strong illumination and stable projection performance.

The powerful optical system ensures uniform brightness and high-contrast image projection, ideal for architectural lighting and outdoor projection projects.

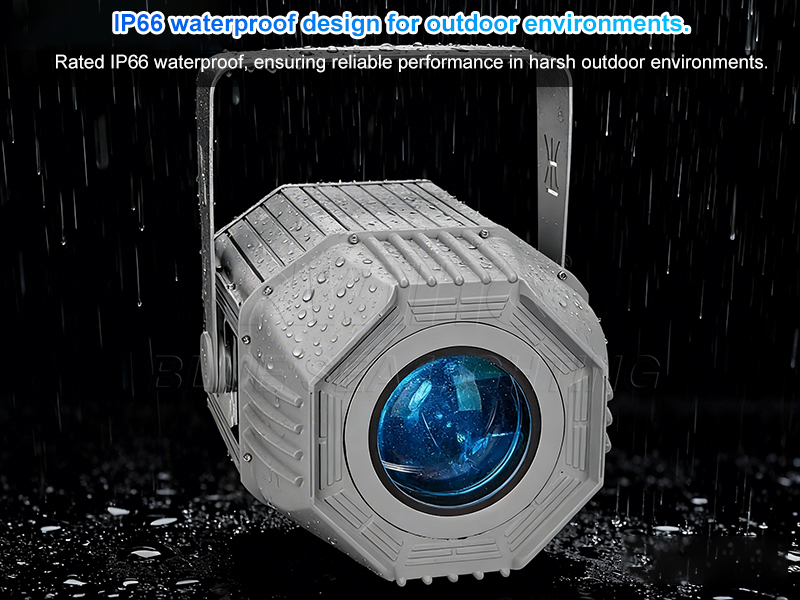

5. IP66 Waterproof Outdoor Design

Designed with IP66 waterproof protection, the projector performs reliably in challenging outdoor environments.

The robust housing protects internal components from rain, dust, and harsh weather conditions, ensuring stable operation for long-term outdoor installations.

Why Choose Bluesea Lighting's Zoom IP 600w/700w 7pcs Picture Rotating Pattern Gobo Projector Light With CMYK?

High-End Stage Lighting Quality — Without the High-End Price

With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, andcompetitive pricingto deliveroutstanding valuefor lighting professionals worldwide.

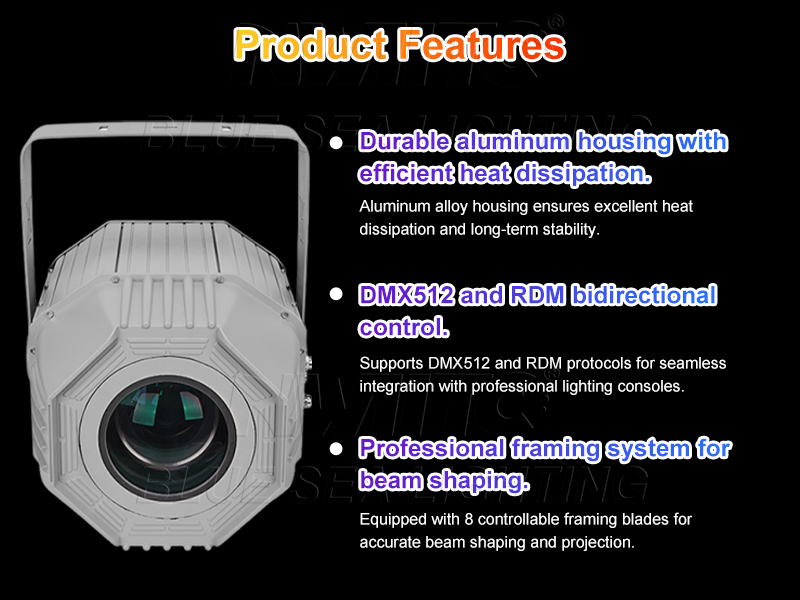

6. Durable Structure and Professional Control

The projector features a durable aluminum alloy housing with efficient heat dissipation, ensuring stable performance during continuous operation.

It supports DMX512 and RDM bidirectional control, allowing seamless integration with professional lighting control systems for precise projection management.

7. Creative Projection Applications

The rotating gobo system enables dynamic image projection for buildings, landmarks, events, and entertainment venues.

With multiple patterns and customizable projection effects, the fixture createsimmersive architectural visuals and eye-catching decorative lighting displays for festivals, tourism lighting, and commercial promotions.
