1. Product Overview

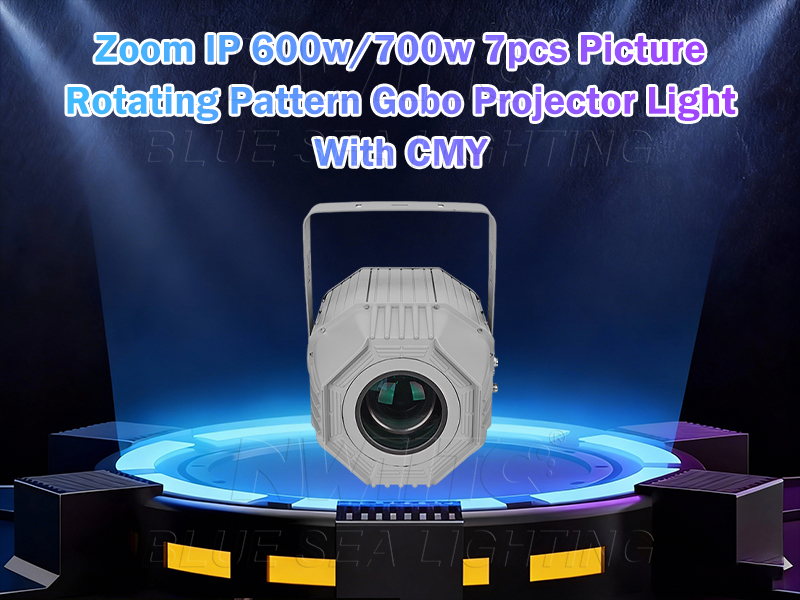

TheZoom IP 600W/700W 7pcs Picture Rotating Pattern Gobo Projector Light with CMY is designed for professional architectural projection and outdoor lighting applications.

Featuring a powerful modular light source, rotating gobo projection system, and advanced CMY color mixing, it delivers bright, clear image projection and creative lighting effects for buildings, landmarks, events, and entertainment venues.

Zoom IP 600w/700w 7pcs Picture Rotating Pattern Gobo Projector Light With CMY Application Scenarios

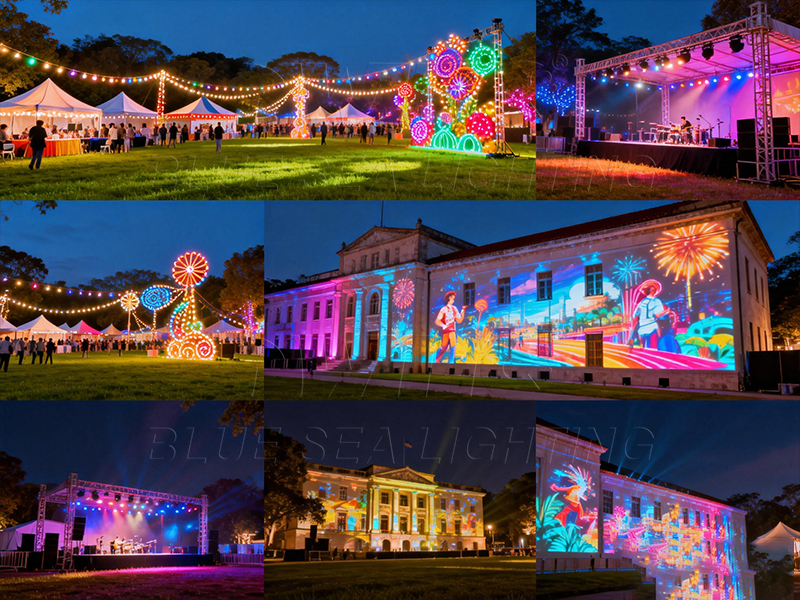

Bluesea Lighting's Zoom IP 600w/700w 7pcs Picture Rotating Pattern Gobo Projector Light With CMY is ideal for: architectural projection, landmark lighting, cultural tourism projects, building façade projection, theme parks, festivals and outdoor landscape lighting, creating vivid image projection and dynamic visual effects.

1. Light Source & Power

Input Voltage: AC100–240V / 50–60Hz
Maximum Power: 620W / 720W
Power Factor: PFC >0.98
Light Source Type: 600W / 700W Modular Light Source
Lamp Color Temperature: 7500K

2. Optics & Projection Effects

Beam Angle: 6°–50° Electronic Zoom
Electronic Focus: 10%–0–10%
Spot Shape: Circular
Flicker Speed: 1–20Hz / second
Modulation Curve: Level 1

Color Wheel: 8 Colors + White

Light Cutting System:
8 Controllable Light Cutters for Irregular Beam Shaping

Rotating Pattern Wheel:
1 Rotating Disc + 7 Patterns + White

Pattern Rotation:
Forward / Reverse Rotation with Pattern Positioning Function

Prism Effect:
Rotating 4-Prism Effect (Customizable Prisms)

3. Control & Operation

Control Channels: 11–30 Channels

Control Protocol:
DMX512 / RDM Bidirectional Control

Connection Method: Daisy-chain Connection

Display:
LCD Color Screen (Chinese / English Switchable, Screen Flip)

Signal Interface:
Waterproof Connector + XLR Male/Female Interface

Operation Modes:
Offline Automatic Operation
Manual Adjustment System
Quick Image Change Window

4. Build, Cooling & Environment

Housing Material: Aluminum Alloy

Heat Dissipation: Conductive Cooling System

Ventilation:Equipped with Vent Valve and Air Vents

Protection System:
Overheat Protection
Electronic Moisture-proof Treatment
Real-time Temperature Monitoring

Operating Environment: -25°C ~ +35°C

Noise Level: 35dB (0.5m)

Surface Treatment:
Professional Outdoor Paint, UV Resistant & Salt Spray Resistant

Protection Level: IP66 Waterproof

Product Dimensions: 547.5 × 298 × 358.6 mm
Product Weight: 28 kg

Zoom IP 600w/700w 7pcs Picture Rotating Pattern Gobo Projector Light With CMY Light Benefits

2. CMY Color Mixing System

Equipped with an advancedCMY color mixing system, the projector providessmooth and precise color transitions.

This technology allows flexible color adjustment for architectural lighting and projection mapping, producing rich, vibrant visuals and dynamic decorative projection effects.

3. 6°–50° Electronic Zoom Projection

The fixture features6°–50° electronic zoom with motorized focus, enabling flexible adjustment for different projection distances and installation heights.

This ensures sharp image projection and accurate beam control for buildings, walls, and large outdoor surfaces.

4. High-Brightness Modular Light Source

Powered by a 600W / 700W high-brightness modular light source, the projector delivers strong brightness and stable performance.

The optical system produces uniform projection with vivid patterns, making it ideal for long-distance architectural projection and outdoor lighting projects.

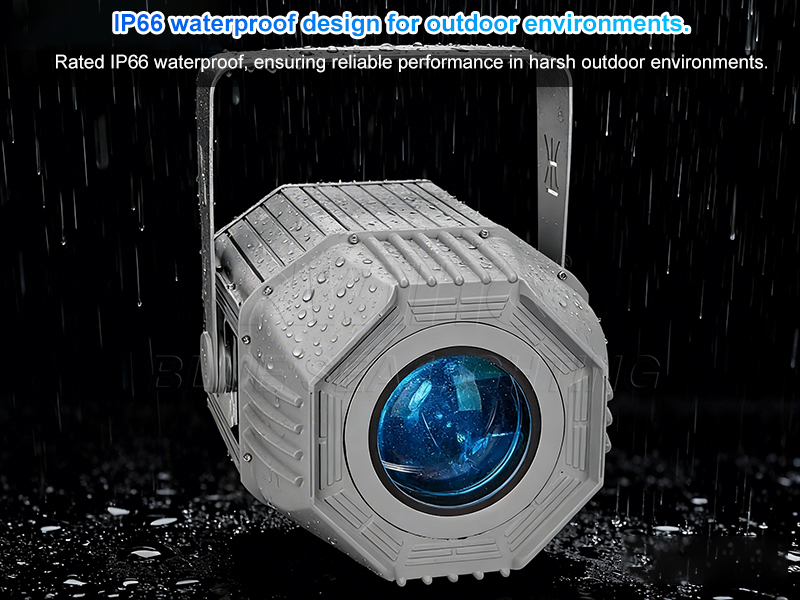

5. IP66 Waterproof Outdoor Design

Built with IP66 waterproof protection, the projector ensures reliable performance in harsh outdoor environments.

The robust housing protects internal components from rain, dust, and environmental conditions, providing stable operation for long-term outdoor installations.

Why Choose Bluesea Lighting's Zoom IP 600w/700w 7pcs Picture Rotating Pattern Gobo Projector Light With CMY?

High-End Stage Lighting Quality — Without the High-End Price

With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, andcompetitive pricingto deliveroutstanding valuefor lighting professionals worldwide.

6. Durable Structure and Professional Control

The projector features a durable aluminum alloy housing with efficient heat dissipation, ensuring long-term reliability.

It supports DMX512 and RDM bidirectional control, allowing seamless integration with professional lighting consoles for precise control and flexible operation.

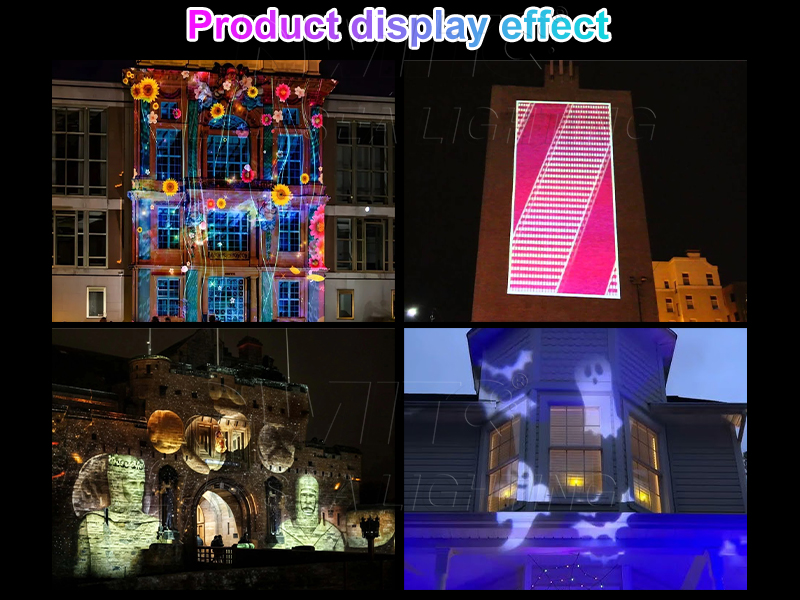

7. Creative Projection Effects

The rotating gobo system enables dynamic image projection for architectural decoration, festivals, events, and commercial displays.

Multiple patterns and projection effects create eye-catching visuals on buildings and landmarks, enhancing night-time landscapes and entertainment lighting designs.
