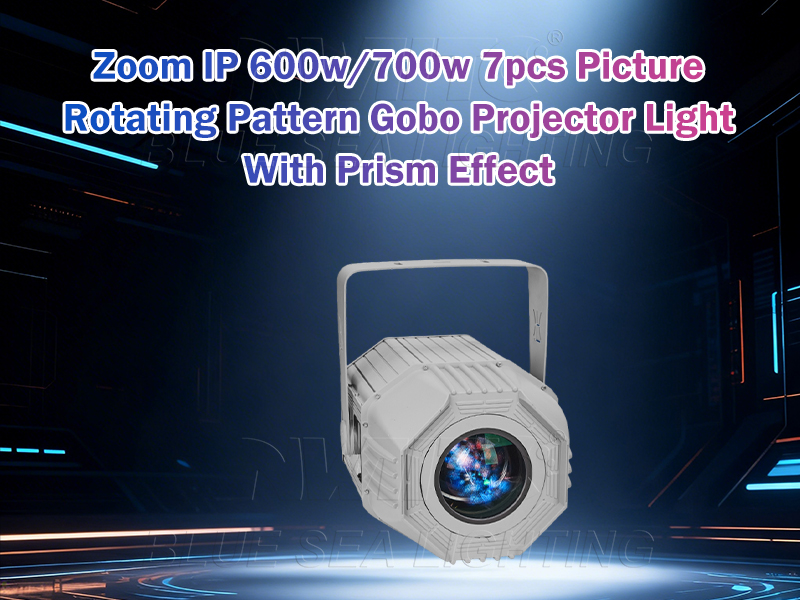

High-Power Outdoor Gobo Projector with Prism Effect

A professional lighting solution designed for architectural and stage applications, combining600W/700W modular light source, IP66 protection, and precision optical performance.

It delivers strong brightness, sharp projections, and stable operation, making it ideal for long-distance projection and outdoor environments.

Zoom IP 600w/700w 7pcs Picture Rotating Pattern Gobo Projector Light With Prism Effect Application Scenarios
Bluesea Lighting's Zoom IP 600w/700w 7pcs Picture Rotating Pattern Gobo Projector Light With Prism Effect is ideal for: architectural projection, landmark lighting, cultural tourism projects, building façade projection, theme parks, festivals and outdoor landscape lighting, creating vivid image projection and dynamic visual effects.

1. Light Source & Power

Input Voltage: AC100–240V / 50–60Hz
Maximum Power: 620W / 720W
Power Factor: PFC >0.98
Light Source Type: 600W / 700W Modular Light Source
Lamp Color Temperature: 7500K

2. Optics & Projection Effects

Beam Angle: 6°–50° Electronic Zoom
Electronic Focus: 10%–100%
Spot Shape: Circular
Flicker Speed: 1–20Hz / second
Modulation Curve: Level 1

Color Wheel: 8 Colors + White Light
Light Cutting System: 8 Controllable Blades (Irregular Shape Splicing)
Pattern:1 Rotating Gobo Wheel + 7 Patterns + White Light
Pattern Rotation: Bi-directional Rotation + Positioning Function
Prism Effect: Rotating 4-Prism (Customizable)

3. Control & Operation

Control Channels: 11–30 Channels
Control Protocol: DMX512 / RDM Bidirectional Control
Connection Method: Daisy-chain Connection

Display:LCD Color Screen (Chinese/English Switchable, Screen Flip)
Signal Interface: Waterproof Connector + XLR Male/Female

Control System: Manual + Self-editing Control System
Offline Mode: Automatic Operation
Adjustment Angle: Tilt >90°
Temperature Control: Real-time Monitoring
Noise Level: 35dB (0.5m)

4. Build, Cooling & Environment

Housing Material: Aluminum Alloy
Heat Dissipation: Conductive Cooling System
Ventilation:Vent Valve + Air Vents

Protection System: Overheat Protection + Moisture-proof Treatment
Power Device: Full Power Overheat Protection
Salt Spray: UV Resistant & Corrosion Resistant Coating

Operating Temperature: -25°C ~ +35°C
Protection Rating: IP66

Quick Image Change Window
Adjustment Method: Manual

Product Size: 547.5 × 298 × 358.6 mm
Net Weight: 28KG

Zoom IP 600w/700w 7pcs Picture Rotating Pattern Gobo Projector Light With Prism Effect Benefits

Durable Professional Design and Control

Built with a durable aluminum alloy housing and efficient heat dissipation system, the fixture ensures stable long-term performance.

It supports DMX512 and RDM bidirectional control, allowing seamless integration with professional lighting systems and enabling precise beam shaping with the framing system.

IP66 Waterproof for Outdoor Environments

Designed for demanding outdoor conditions, the projector features an IP66waterproof rating that ensures reliable performance in rain, humidity and harsh weather.

The robust structure makes it suitable for permanent outdoor installations, landscape lighting and architectural projection projects.

Dynamic Prism Effect for Enhanced Visual Depth

Integrated rotating prism system createsmulti-layered beam effects and dynamic visual expansion.

The prism effect enhances projection depth and movement, delivering more immersive, eye-catching lighting visualsfor stages, shows, and large-scale installations.

Flexible 6°–50° Electronic Zoom

The projector features a 6°–50° electronic zoom system with electronic focus, allowing flexible adjustment for different installation heights and projection distances.

This ensures clear image projection and accurate beam controlfor architectural lighting and outdoor projection mapping.

Why Choose Bluesea Lighting's Zoom IP 600w/700w 7pcs Picture Rotating Pattern Gobo Projector Light With Prism Effect?

High-End Stage Lighting Quality — Without the High-End Price

With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, andcompetitive pricingto deliveroutstanding valuefor lighting professionals worldwide.

Rich Pattern Projection with High Brightness Output

Equipped with a high-brightness modular light source, producing vivid and clear projections across various surfaces.

Supportsmultiple gobo patterns, vibrant colors, and detailed image projection, allowing flexible use in building mapping, event decoration, and creative lighting designs.

Creative Architectural Projection Effects

The projector creates vivid and large-scale architectural projection effects, transforming buildings into dynamic visual displays.

With sharp image clarity and vibrant colors, it is ideal for landmarks, cultural tourism lighting, festivals, theme parks and outdoor events, bringing creative patterns, graphics and animations to architectural surfaces.
