Product Overview

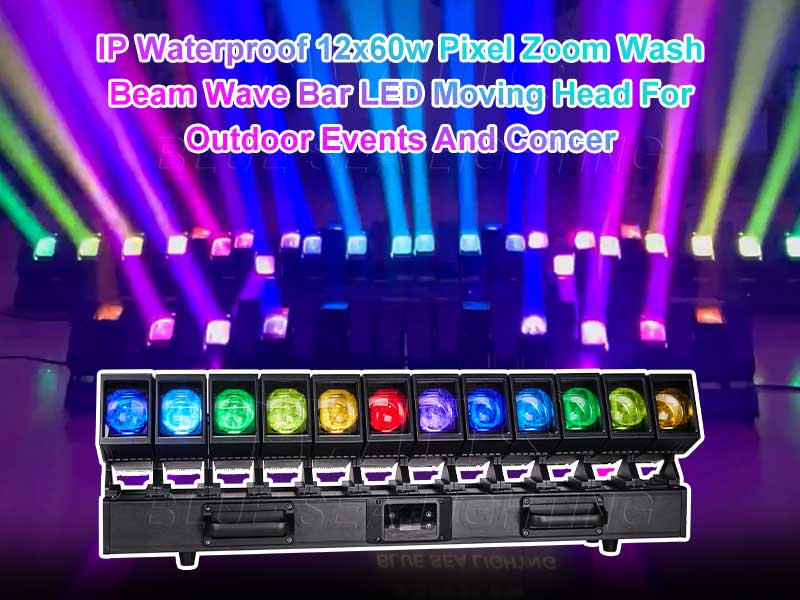

The 12×60W Pixel Zoom Wash Beam Wave Bar LED Moving Head is a high-performance outdoor lighting fixture designed for large-scale events and stage productions.

Featuringpowerful output, pixel control, and flexible zoom, it delivers dynamic beam, wash, and wave effects for professional lighting applications.

IP Waterproof 12x60w Pixel Zoom Wash Beam Wave Bar LED Moving Head For Outdoor Events And Concert Application Scenarios
Bluesea Lighting's IP Waterproof 12x60w Pixel Zoom Wash Beam Wave Bar LED Moving Head For Outdoor Events And Concert is ideal for: outdoor concerts, music festivals, touring stages, architectural lighting, and large-scale event productions.

1. Light Source & Brightness

Main Light Source: 12pcs × 60W RGBW 4-in-1 LEDs
Single LED Control: Each LED individually controllable

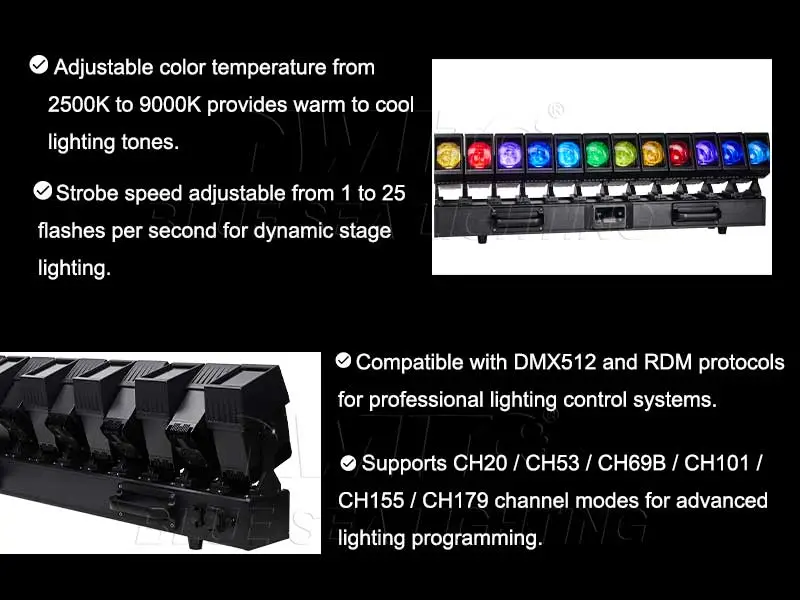

Color Temperature: 2500K–9000K adjustable
Lamp Lifespan: Approx. 50,000 hours
Power Consumption: 900W
Input Voltage: AC100–240V, 50/60Hz

2. Optics & Effects

Zoom Range: 4°–36° motorized zoom
Illuminance:22,000 lux @ 5m (minimum angle)
Effects:Wash, beam, pattern, and special effects
Dimming:0–100% linear dimming
Strobe:1–25 times/second

3. Control & Modes

Control Methods: DMX512 / RDM
Channel Modes: CH20 / CH53 / CH101 / CH155 / CH169A / CH169B / CH179
DMX Interface: 3-pin (optional 5-pin)
Display:1.77-inch color LCD

4. Build & Protection

Waterproof Rating: IP65
Software Update: Firmware update via DMX connection

IP Waterproof 12x60w Pixel Zoom Wash Beam Wave Bar LED Moving Head For Outdoor Events And Concert Benefits

Dynamic Pixel Effects

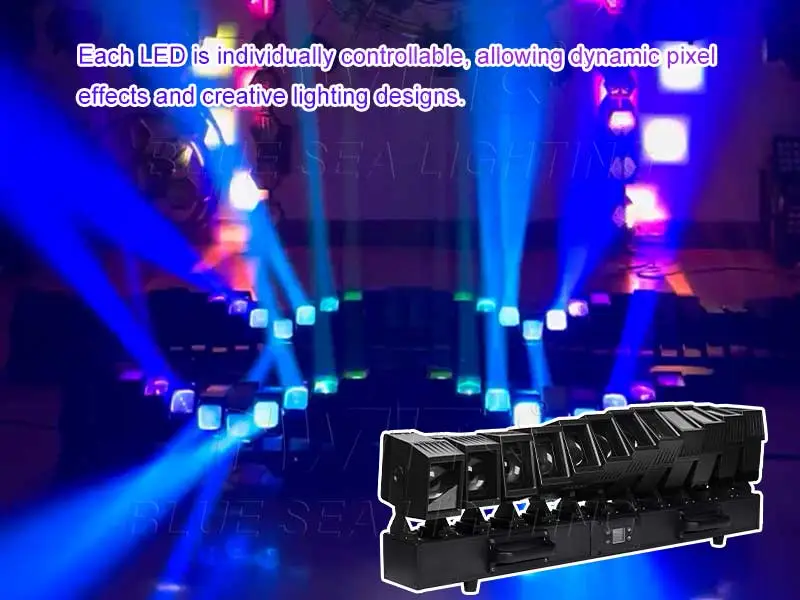

Each LED is individually controllable, enabling creative pixel mapping and dynamic visual effects.

This allows designers to create wave, chase, and layered lighting effects that enhance stage depth and visual impact.

Outdoor Waterproof Performance

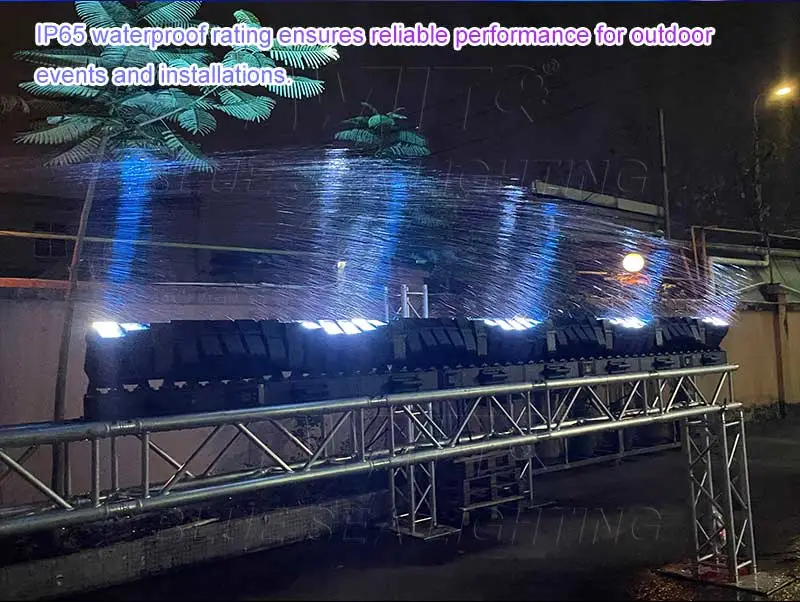

With an IP65 waterproof rating, the fixture ensures reliable operation in outdoor environments, including rain and humidity.

Ideal for concerts, festivals, and outdoor installations, maintaining stable performance in harsh conditions.

Zoom & Beam Flexibility

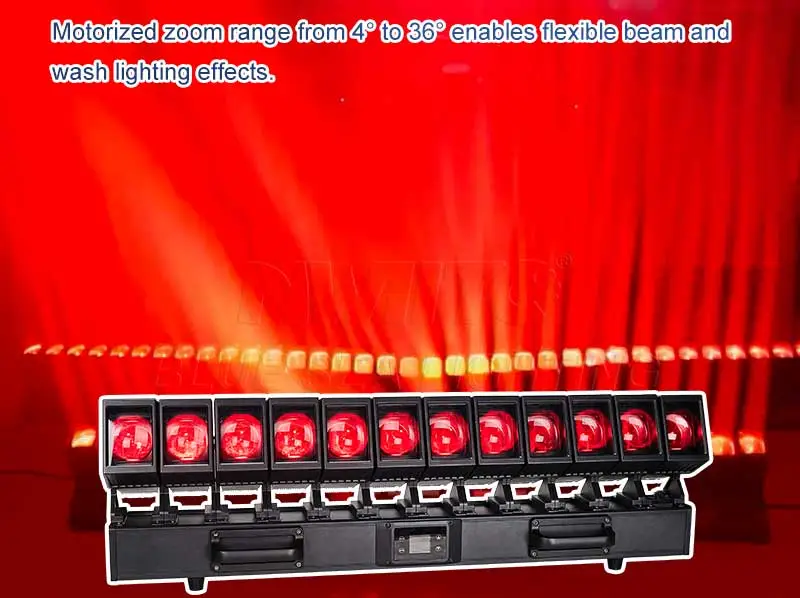

Equipped with a motorized zoom range from 4° to 36°, allowing smooth transition between tight beams and wide wash effects.

Combined withhigh brightness output, it delivers powerful and versatile lighting performance for various stage scenarios.

Control & System Compatibility

SupportsDMX512 and RDM protocols, ensuring seamless integration with professional lighting control systems. Multiple channel modes including CH20 / CH53 / CH69B / CH101 / CH155 / CH179provideadvanced programming flexibility for complex lighting designs.

Why Choose Bluesea Lighting's IP Waterproof 12x60w Pixel Zoom Wash Beam Wave Bar LED Moving Head For Outdoor Events And Concert?

High-End Stage Lighting Quality — Without the High-End Price

With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, andcompetitive pricingto deliveroutstanding valuefor lighting professionals worldwide.
