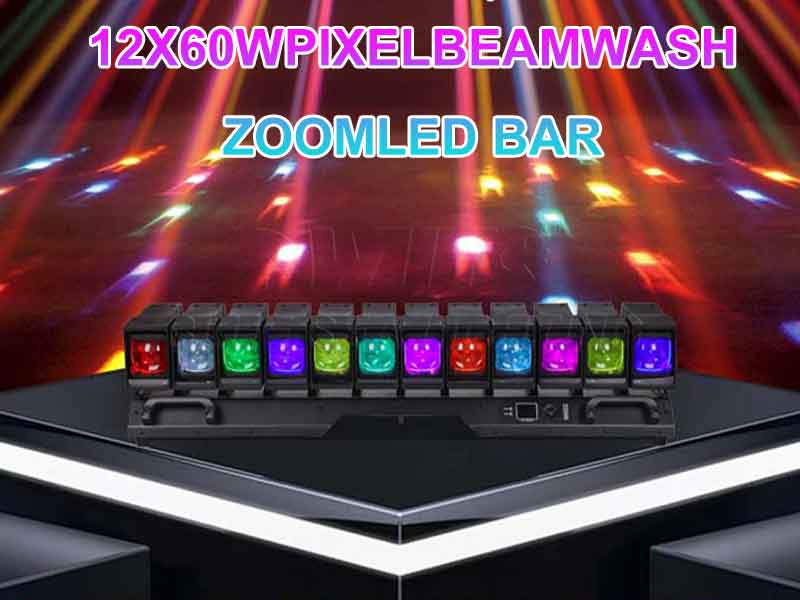

12x60w Pixel Beam Bar Zoom LED Moving Head Light

BLBM1260P

★ Equipped with 12pcs 60W high-brightness LEDs for powerful beam output.

★ Combines individual pixel movement, color mixing, and beam effects for dynamic stage performances.

★ Linear zoom function enables smooth transition from narrow beams to wide-area coverage.

★ Supports DMX512, Master-Slave, Sound Control, and RDM for flexible and convenient operation.

★ 32-bit 0-100% linear dimming ensures smooth, flicker-free fading for professional applications.

Quantity:

Contact Now

add to cart

12x60w Pixel Beam Bar Zoom LED Moving Head Light Product Description
12x60W Pixel Beam Bar Zoom LED Moving Head Light A powerful lighting fixture combining beam, wash, and pixel effectsin one unit. Equipped with 12 individually controllable 60W LEDs, it delivers dynamic aerial effects, vibrant colors, and flexible zoom performance for concerts, stages, clubs, and live events.
12x60w Pixel Beam Bar Zoom LED Moving Head Light Application Scenarios Bluesea Lighting's 12x60w Pixel Beam Bar Zoom LED Moving Head Light is ideal for: concerts, clubs, bars, theaters, TV studios, music festivals, stage performances, and entertainment venues.
12x60w Pixel Beam Bar Zoom LED Moving Head Light Technical Specifications
1. Light Source & Output Light Source: 12 × 60W High-Power LEDs Total Power:800W Pixel Control: Individual LED Control Dimming: 32-bit 0–100% Linear Dimming Effect Combination: Pixel Beam + Wash Effects 2. Effects & Performance Lighting Effects: Beam / Wash / Pixel Effects Movement Feature: Individual Tilt Control for Each Head Refresh Rate: 1–30 Hz Operating Temperature: -30°C to 50°C Color Performance: Smooth Color Mixing and Dynamic Pixel Effects	3. Control & Connectivity DMX Channel Modes: 20CH / 53CH / 101CH / 155CH / 169A CH / 169B CH / 179CH Control Modes: DMX512 / Auto Run / Master-Slave / Sound Control / RDM Signal Connection: DMX512 Input & Output Power Connection: Power Input & Output 4. Build & Installation Housing Material: Metal Construction Housing Color:Black IP Rating:IP20 Product Dimensions: 1000 × 300 × 165 mm Net Weight: 26.5 kg
12x60w Pixel Beam Bar Zoom LED Moving Head Light Benefits

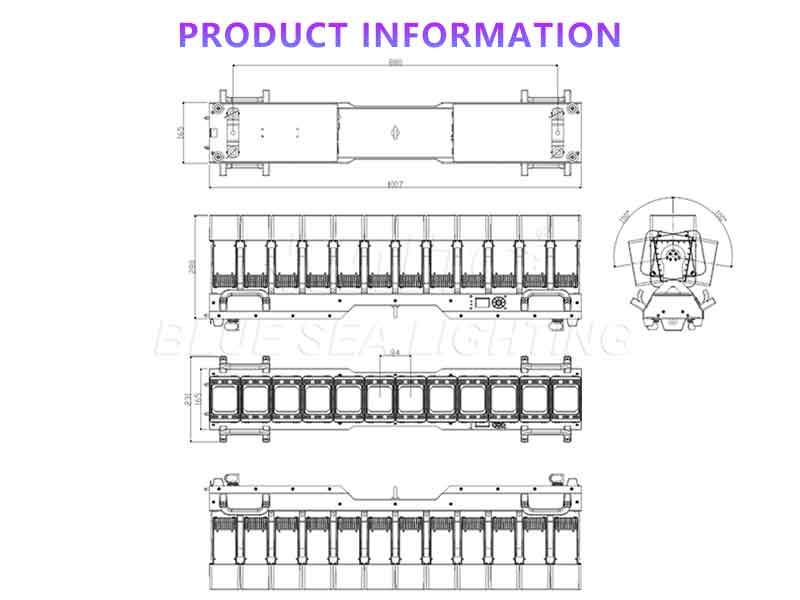

Product Dimensions & Structural Design The technical drawing provides a clear overview of the fixture's dimensions and mechanical structure. The compact linear design ensures efficient installation while maintaining excellent stability. Precisely engineered construction supports smooth movement, reliable performance, and convenient integration into professional lighting systems.

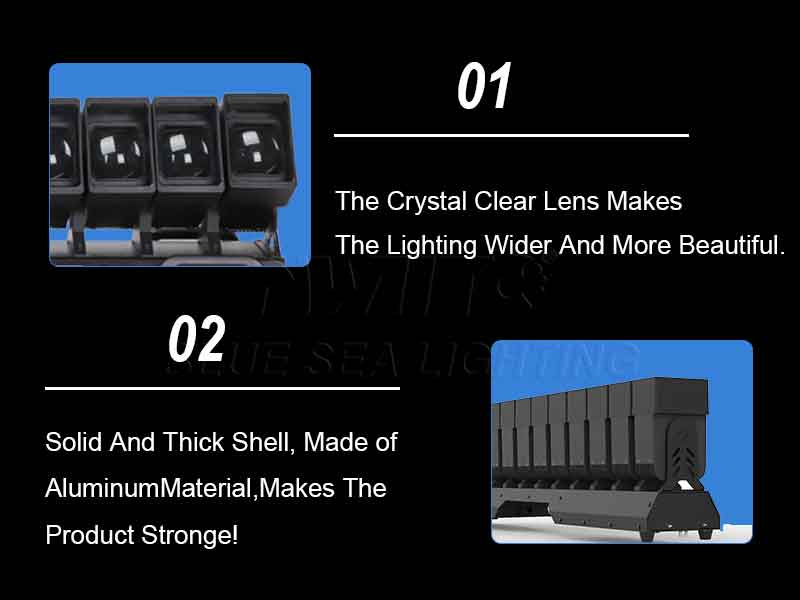

	Premium Optics & Rugged Housing Equipped with high-transparency optical lenses, the fixture delivers bright, sharp, and well-defined light output. The housing is manufactured from durable aluminum and metal materials, providing excellent strength, heat dissipation, and long-term reliability for demanding stage and event applications.
Independent Movement with Beam & Wash Effects Each LED module features individual tilt control, allowing dynamic motion effects and creative pixel programming. With90° pan movement and 190° tilt movement, the fixture can produce sweeping beam effects, colorful washes, and eye-catching visual patterns, making it ideal for concerts, clubs, stages, and live productions.

Why Choose Bluesea Lighting's 12x60w Pixel Beam Bar Zoom LED Moving Head Light? High-End Stage Lighting Quality — Without the High-End Price With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, andcompetitive pricingto deliveroutstanding valuefor lighting professionals worldwide.
