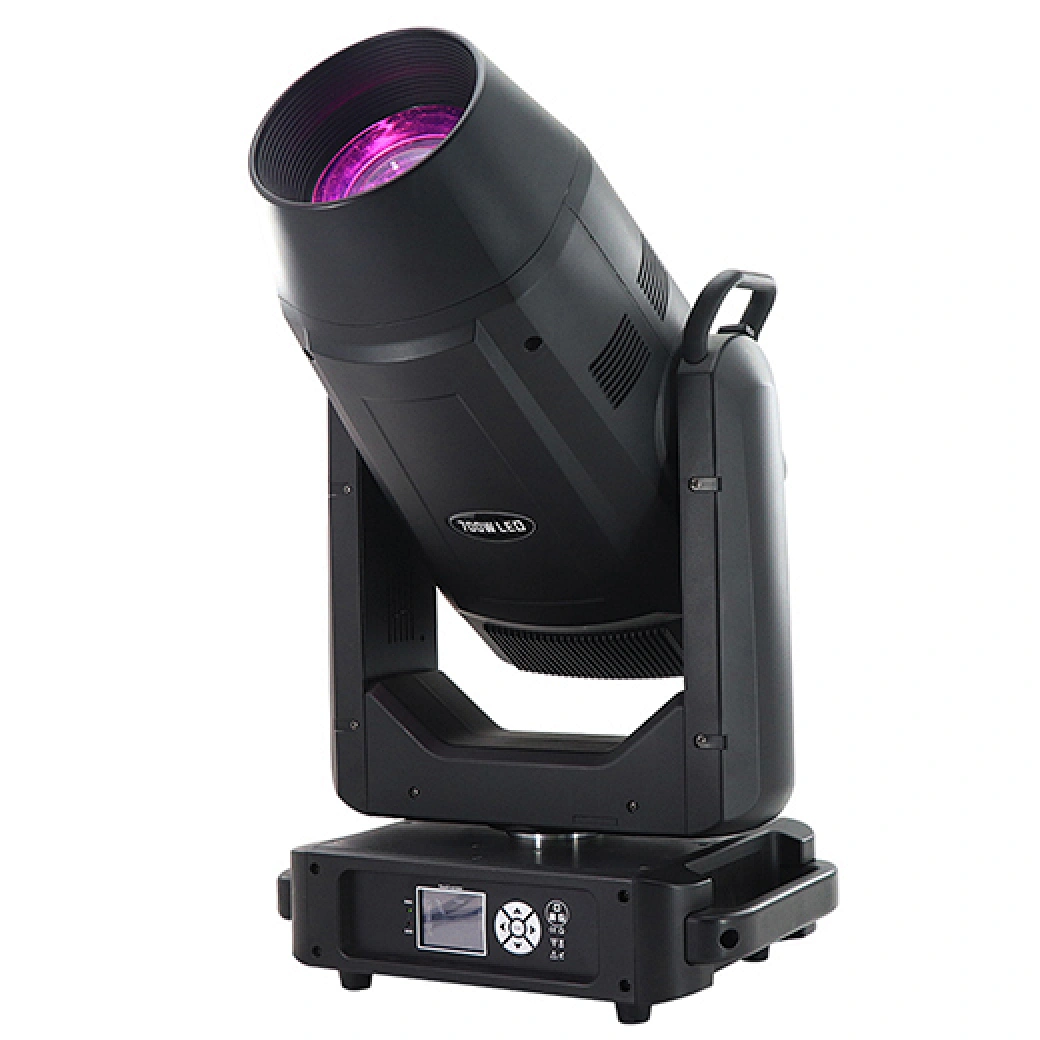

700W Profile CMY CTO Zoom LED Moving Head Light
700W Profile CMY CTO Zoom LED Moving Head Light
700W Profile CMY CTO Zoom LED Moving Head Light
moving head light

700W Profile CMY CTO LED Moving Head Light

BLM700P
700W Profile CMY CTO Zoom LED Moving Head Light is a finely crafted, powerful fixture with an output and optical precision beyond its peers. It combines a limitless CMY color mixing system. It also features rotating gobos, fixed gobos, iris, zoom system and rotating prism. While perfectly presenting the 4 functions of beam, spot, wash and profile, it also has an independent CTO system and CMY system. It is an 700w beam moving head light that integrates multiple powerful functions.
Quantity
Contact Now
add to cart


700W Profile CMY CTO Zoom LED Moving Head Light

700W Profile CMY CTO Zoom LED Moving Head Light is a finely crafted, powerful fixture with an output and optical precision beyond its peers. It combines a limitless CMY color mixing system. It also features rotating gobos, fixed gobos, iris, zoom system and rotating prism. While perfectly presenting the 4 functions of beam, spot, wash and profile, it also has an independent CTO system and CMY system. It is an 700W Profile CMY CTO Zoom LED Moving Head Light that integrates multiple powerful functions.


VIDEO




FEATURES

  • 700 W LED, 8000K
  • Total output up to 20000 hours
  • CMY limitless color mixing system
  • 6 position color wheel plus open
  • Gobo animation wheel with full movement / direction control
  • Interchangeable 3-facet rotating prism
  • Motorized iris
  • Rapid strobe effects (up to 20 Hz)
  • Motorized zoom and focus
  • Mechanical dimming, linear dimming
  • Pan and tilt range of 540°/270°
  • Variable fan control for quieter operation
  • 11 static gobos plus open
  • 7 indexable rotating gobos plus open
  • 1 animation wheel with special dynamic effect like flame or water, etc.



SPECIFICATIONS



MODEL NO.

BLM700P


PHYSICAL

Length: 424 mm
Width: 286 mm
Height: 770 mm head straight up
Net Weight: 34.7 kg


DYNAMIC EFFECTS

Color mixing: CMY, independently variable 0 - 100%
Color wheel: 6 interchangeable dichroic filters + open, indexing, continuous rotation, random color

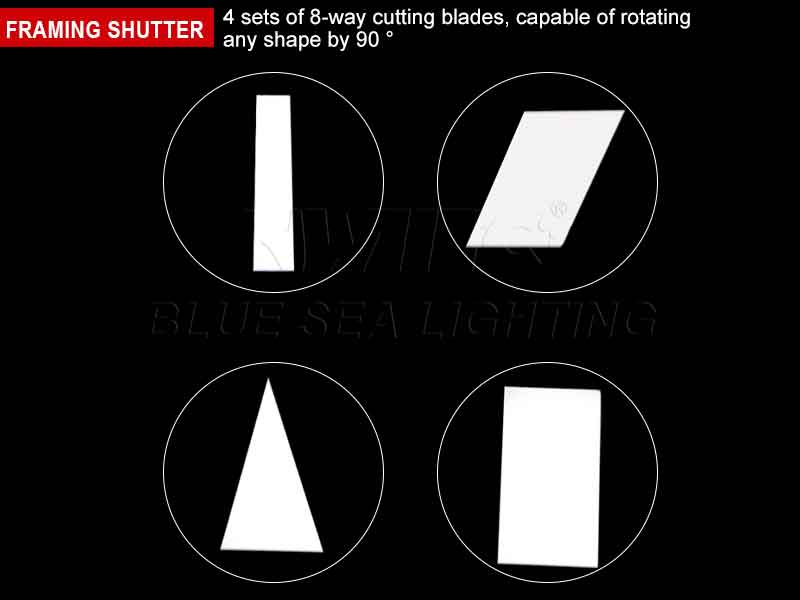

Cutting wheel: with 4 cutting discs to organize a cutting spot system, cutting system can rotate 90°, precise control of cutting disc, can create triangle, diamond & rectangle light spots in any direction
Minmum angle with 5M distance, spot diameter: 45CM
Maximum angle with 5M distance, spot diameter: 450CM
Prism: Interchangeable 3 facets rotating prism
Iris: 5 - 100%, pulse effects
Mechanical dimmer: 0 - 100%, linear dimming
Shutter: Strobe effect 0 - 20 Hz, pulse effects, instant open and blackout, or radom strobe
Focus: motorized focus
Frost
Zoom: 5° - 55°, cut-off angles, with diffuser installed
Pan: 540°
Tilt:  270°


CONTROL AND PROGRAMMING

DMX channels: 35CH
Setting and addressing: Control panel with LED display
16-bit control: CMY, color wheel, rotating gobos, gobo animation, mechanical dimmer, focus, zoom, pan & tilt
Movement control options: Tracking and vector
Protocol: DMX512
Firmware update: Serial upload via DMX link
Control Mode: DMX 512,RDM，Auto-running , Master/salve, Built-in program


LIGHT SOURCE

Type: 700 W LED, 8000K
Input Voltage:100-240V 50/60Hz
Input power: 850W
Fuse: 10A
Color temperature: 8000 K
CRI (Color rendering index): >90
Average lifetime: 20000 hours



CONSTRUCTION

Color(s): Black
Housing: UV-resistant fiber-reinforced composite
Reflector: Glass, cold light
Protection rating: IP20
Display: advanced & convenient full-color LCD touch button screen with RDM


GOBOS

Static gobo wheel: 11 interchangeable gobos + open, indexing, continuous rotation, random gobo & shaking
Rotating gobo wheel: 7 interchangeable gobos + open, indexing, continuous gobo rotation & scrolling, shaking


GOBO ANIMATION WHEEL

Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable angle, speed and direction, can make special dynamic effect like flame or water effect, etc.


INSTALLATION

Mounting points: Fold Clamp,2 pairs of 1/4-turn locks.
Orientation: Any


CONNECTIONS

AC power input: 1.5m integral cable without power plug
DMX data in/out: 3-pin locking XLR


ELECTRICAL

AC power: 100-240 V, 50/60 Hz
Main fuse (100-120 V power):15 AT (slow blow)
Main fuse (208-240Vpower): 10 AT (slow blow)


TYPICAL POWER AND CURRENT

110 V, 60 Hz: 977 W, 9.0 A, PF 0.995
220 V, 60 Hz: 850 W, 3.9 A, PF 0.973


THERMAL

Cooling: Filtered forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C
Maximum surface temperature, steady state, Ta=40° C: 160° C
Total heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 3340 / 3190 BTU/hr.
