Brilliant Stage Performance with Dynamic Beams

The10×60W Zoom Pixel Beam Bar Moving Head Light with LED Backlighttransforms any stage into a stunning visual experience.

Its10×60W RGBW LEDs create vivid, powerful beams, while the RGB backlight LEDsadd an extra layer of atmosphere.
Perfect for concerts, clubs, and events, this fixture combines strength, precision, and elegance for professional-grade lighting performance.

10x60w Zoom Pixel Beam Bar Moving Head Light With LED Backlight Application Scenarios

Blue Sea Lighting’s 10×60W Zoom Pixel Beam Bar Moving Head Light With LED Backlightis perfect forlarge-scale stage productions,concert tours,DJ events,weddings, and theatrical performances.
It also performs brilliantly in TV studios,theme parks,clubs, and architectural lighting shows, offering powerful beams,smooth color transitions, anddynamic movement effectsthat elevate every visual experience.

1. Light Source & Brightness

Main Light Source: 10×60W RGBW LEDs
Auxiliary Light Source:
–96×1.5W CW LEDs
–96×1.5W WW LEDs
–96×0.5W RGB LEDs
Input Voltage: 100–240V~ 50/60Hz
Power Consumption: 600W
LED Lifespan: Approx. 50,000 hours

2. Optics & Effects

Zoom Angle: 5°–46° motorized zoom
Dimming:0–100% smooth adjustment
Strobe:Multiple speed strobe effects
Beam Effect: Full and sharp beam with excellent color mixing
Main Feature: Linear scaling system for uniform output

3. Control & Modes

Control Protocol: DMX512
Channel Modes: 17 / 27 / 99 / 108 / 168 / 8+100 / 8+160 / 170 channels
Signal Outlet: Input/Output – 3-pin or 5-pin XLR interface
Control Options: Standard DMX / Auto-run / Master–Slave

4. Build & Protection

Y-axis Movement Range: 202°
Power Connector: Power In/Out
Protection Level: IP20
Housing:High-strength aluminum alloy
Product Size: 1000×120×290 mm
Net Weight: 23 kg

10x60w Zoom Pixel Beam Bar Moving Head Light With LED Backlight Benefits

Stunning RGBW Brightness and Layered Visuals

Equipped with 10×60W RGBW main LEDsand96×1.5W CW, WW, and RGB backlight LEDs, the fixture produces exceptional brightnessandvibrant color mixing.
Its layered lighting effect enhances every detail on stage, delivering accurate color renderingandimpressive visual depth for immersive live shows.

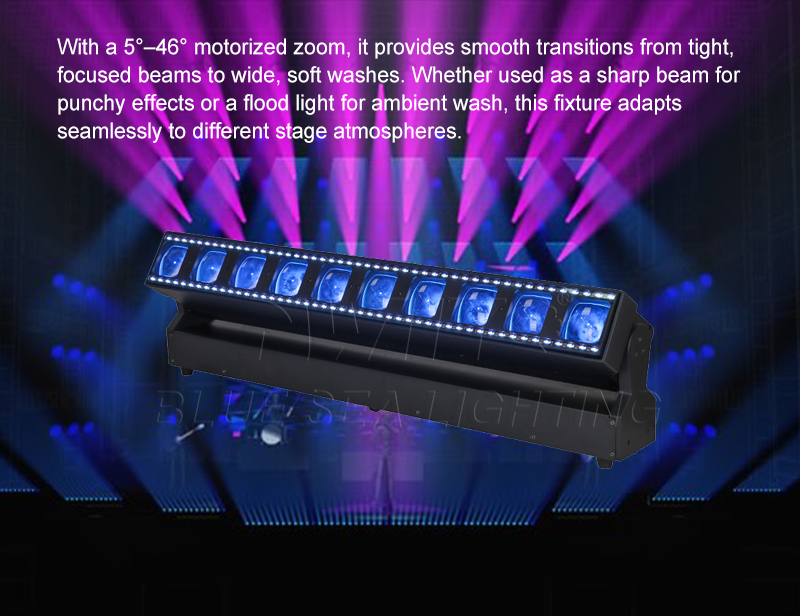

Flexible Zoom and Versatile Stage Effects

Featuring a 5°–46° motorized zoom, this unit provides smooth transitions fromtight, focused beamstowide, soft washes.
Whether used as apunchy beam or a flood light for ambient wash, it easily adapts to different lighting atmospheres — offering versatility for various stage designs.

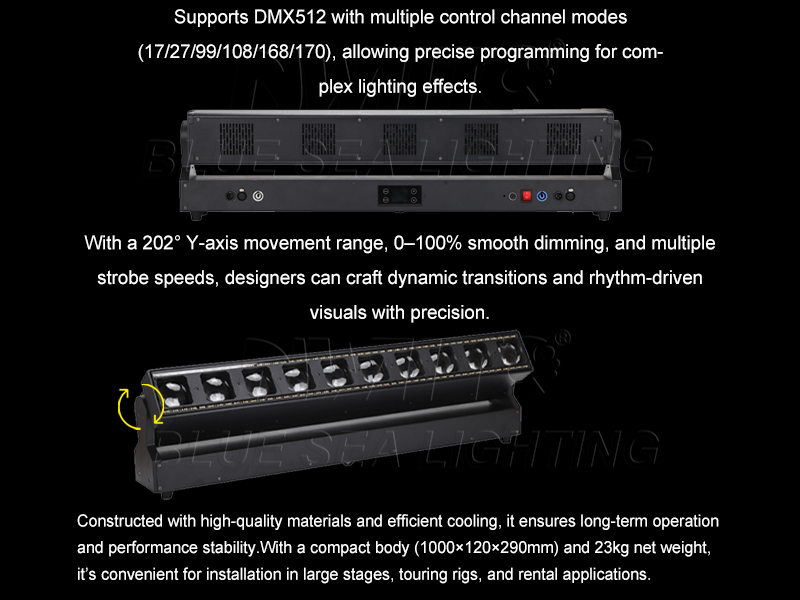

Precision Control and Professional Flexibility

The fixture supportsDMX512with multiple channel modes (17/27/99/108/168/170), giving designers full creative control for complex effects.
Its202° Y-axis movement range,0–100% dimming, and multi-speed strobeprovidesmooth transitionsand allow the creation of rhythm-driven dynamic visualswith ease.

Premium Build and Outstanding Reliability

Constructed with high-quality materialsandefficient cooling, the fixture ensures long-term stability and performance.
With a compact size (1000×120×290mm)and23kg net weight, it is easy to install on large stages, touring rigs, and event setups.
Thebuilt-in linear scaling systemguaranteesfluid beam motionanduniform RGBW color blending, achievingrich, professional light texturefor every performance.

Why Choose Bluesea Lighting's 10x60w Zoom Pixel Beam Bar Moving Head Light With LED Backlight?

High-End Stage Lighting Quality — Without the High-End Price

With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, andcompetitive pricingto deliveroutstanding valuefor lighting professionals worldwide.

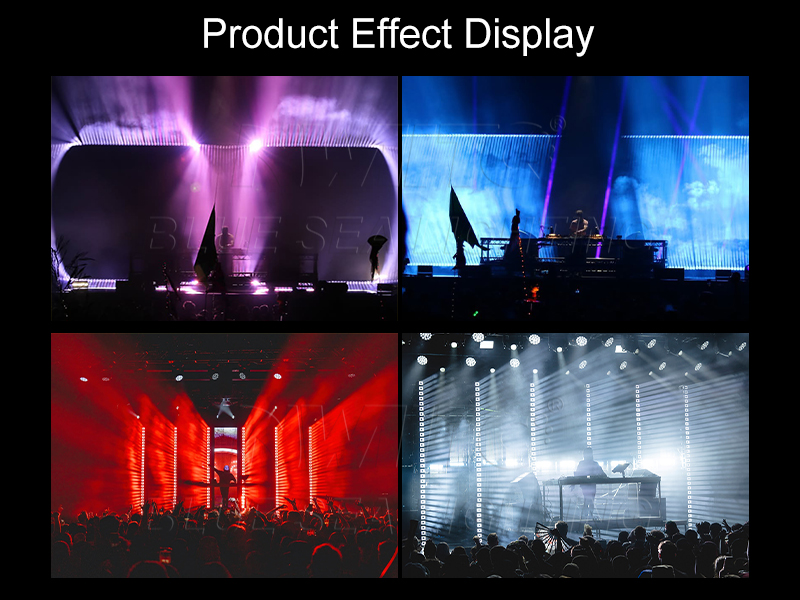

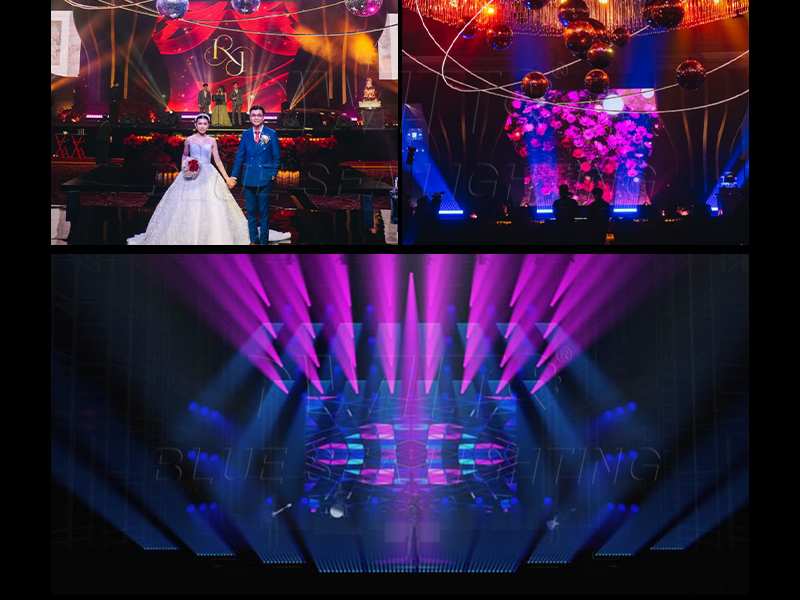

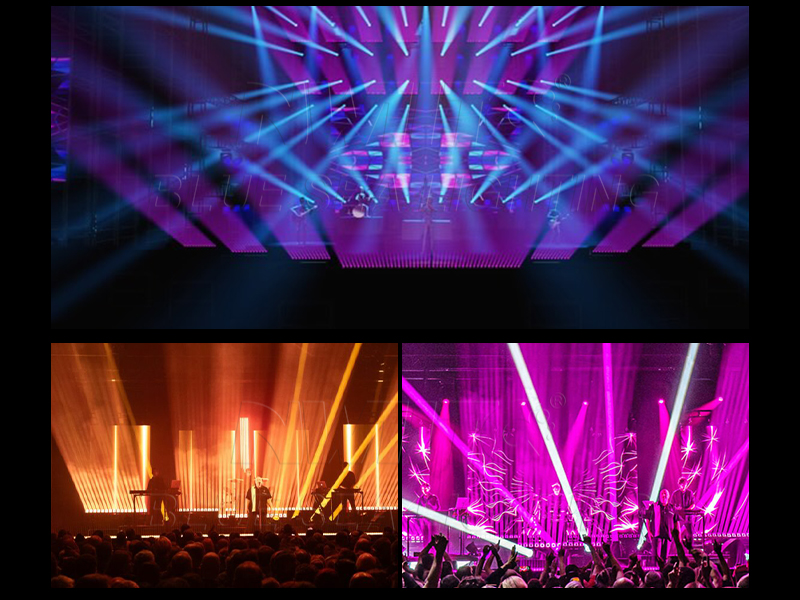

Product Visual Showcase

These stunning stage scenes highlight the powerful visual impactandversatility of the 10×60W Zoom Pixel Beam Bar Moving Head Light with LED Backlight.
From elegant wedding stagesto vibrant concert performancesand large-scale live shows, the fixture delivers bright, dynamic beams with seamless color transitionsandprecise movement control.
Whether used for soft washesorintense beam effects, it enhances every environment with professional-grade lighting qualityand a modern, stylish look that captures every audience’s attention.
