Product Overview

ThisIP Waterproof 6pcs Picture Rotating Pattern Projector Lightis designed for professional outdoor and architectural projection, offering 100W / 150W / 200W power options to suit different project scales.

With a robust aluminum housing, stable optical system, and flexible beam control, it delivers vivid pattern projection for stages, events, buildings, and commercial lighting applications.

IP Waterproof 100w/150w/200w 6pcs Picture Rotating Pattern Projector Light Application Scenarios

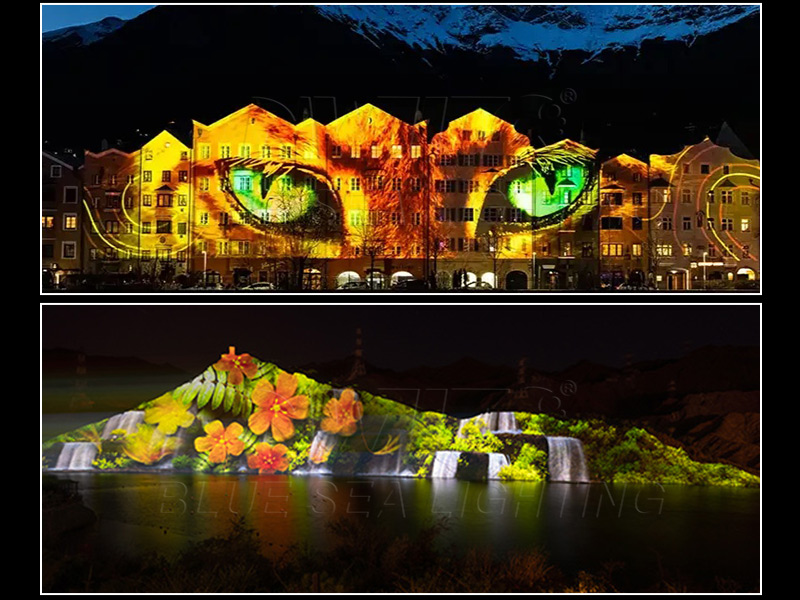

Bluesea Lighting's IP Waterproof 100w/150w/200w 6pcs Picture Rotating Pattern Projector Light is ideal for: outdoor architectural projection,landscape lighting,theme parks,cultural tourism projects,building facades,plazas,bridges, and outdoor stage installations.

1. Power & Light Source
Input Voltage: AC100–240V, 50/60HZ
Power Factor: PFC/0.98
Light Source Power: 100W / 150W / 200W
Maximum Power: 120W / 170W / 220W
Lamp Color Temperature: 7500K
Light Source Lifespan: Approx. 50,000 hours

2. Optics & Effects
Electronic Focus: 10%–0–10%
Beam Angle: 30° / 45° / 60° (Optional)
Beam Spot Shape: Sliced Square
Dimming Curve: 0–100%
Number of Colors: 7 Colors + White Light (Customizable)
Number of Patterns: 6 Custom Pattern Pieces
Effect: 1 Custom Floating Shadow Panel
Pattern Angle: 360° Angle Adjustment, Stepless Rotation
Flicker Speed: 1–20Hz/second

3. Control & Operation
Number of Channels: 6 Channels
Display Method: LED Digital Display
Control Method: International Standard DMX512 / Manual Mode Control / Master-Slave Control
Connection Method: Independent Input
Other Controls: Offline automatic operation
Button Method: Button mode

4. Build, Cooling & Protection
Cooling Method: Forced air cooling
Noise Level: 35dB (0.5m)
Temperature Control: Real-time Monitoring of Light Source Temperature
Protection Function: Overheat Protection
Power Supply: Full power overheat protection device
Casing Material: Aluminum metal casing
Internal Protection: Electronic moisture-proof treatment
Protection Rating: IP65
Operating Environment: -25℃ / +35℃
Product Dimensions: 239 × 220 × 209mm
Product Weight: 5.8Kg

IP Waterproof 100w/150w/200w 6pcs Picture Rotating Pattern Projector Light Benefits

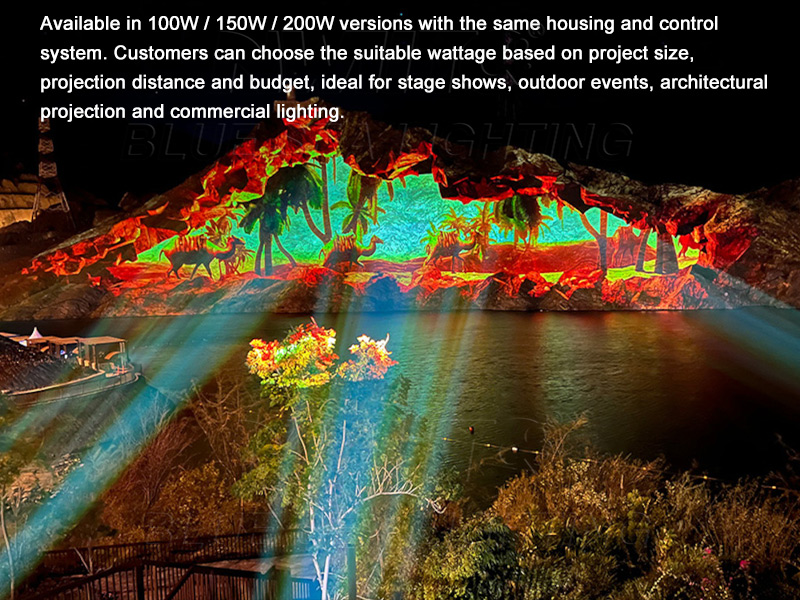

Multiple Wattage Options & Projection Performance

Available in 100W, 150W, and 200W versions, all models share the same housing structure and control system.

Users can choose the appropriate wattage based on projection distance, coverage area, and budget, making it suitable for everything from small installations to large-scale outdoor shows.

Outdoor IP65 Waterproof Construction

Thealuminum housing with electronic moisture-proof treatmentprovidesIP65 waterproof protection, ensuring reliable operation in rain, humidity, and harsh outdoor environments.

This makes the fixture ideal foroutdoor stages, architectural facades, landscape lighting, and long-term fixed installations.

Stable Light Output & Professional Efficiency

Equipped with a high-quality LED light source and high power factor (PFC ≥ 0.98), the projector deliversstable brightness, excellent energy efficiency, and consistent long-term performance, meeting the demands of professional lighting projects and continuous operation.

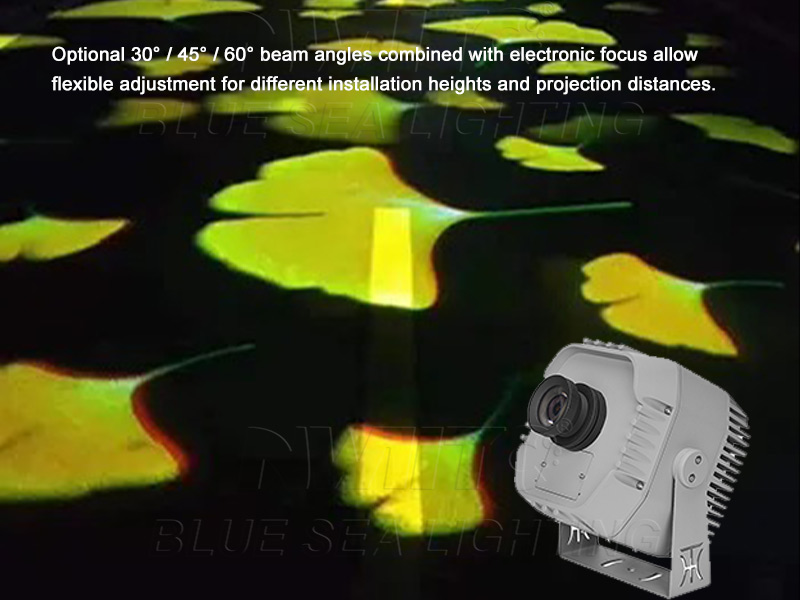

Flexible Beam Angle & Electronic Focus

Optional30° / 45° / 60° beam angles combined with electronic focus adjustment allow precise control over projection size and sharpness.

This flexibility supports different installation heights and projection distances, ensuring clear and accurate pattern display across various application scenarios.

Why Choose Bluesea Lighting's IP Waterproof 100w/150w/200w 6pcs Picture Rotating Pattern Projector Light?

High-End Stage Lighting Quality — Without the High-End Price

With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, andcompetitive pricingto deliveroutstanding valuefor lighting professionals worldwide.

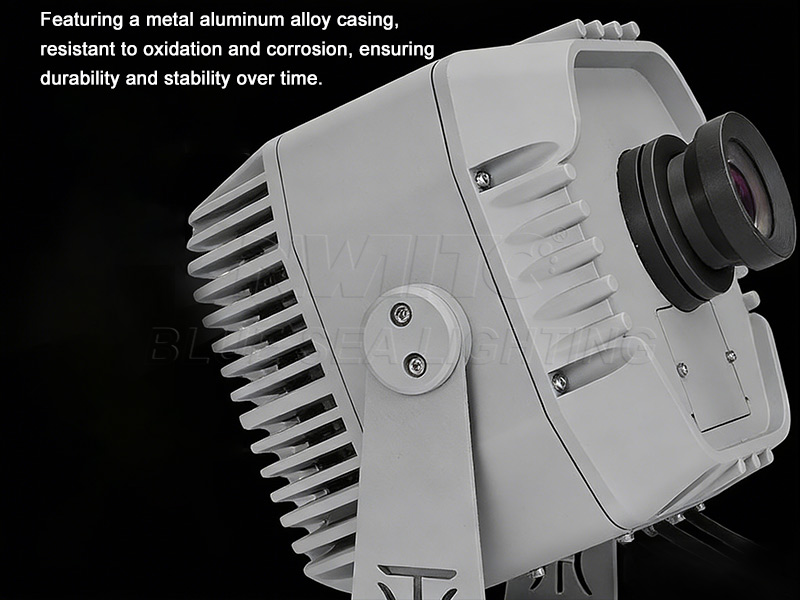

Durable Aluminum Alloy Housing

Constructed with a metal aluminum alloy casing that is resistant to oxidation and corrosion, ensuring excellent durability and structural stability.

The robust housing design supports reliable performance in demanding outdoor and architectural lighting environments.

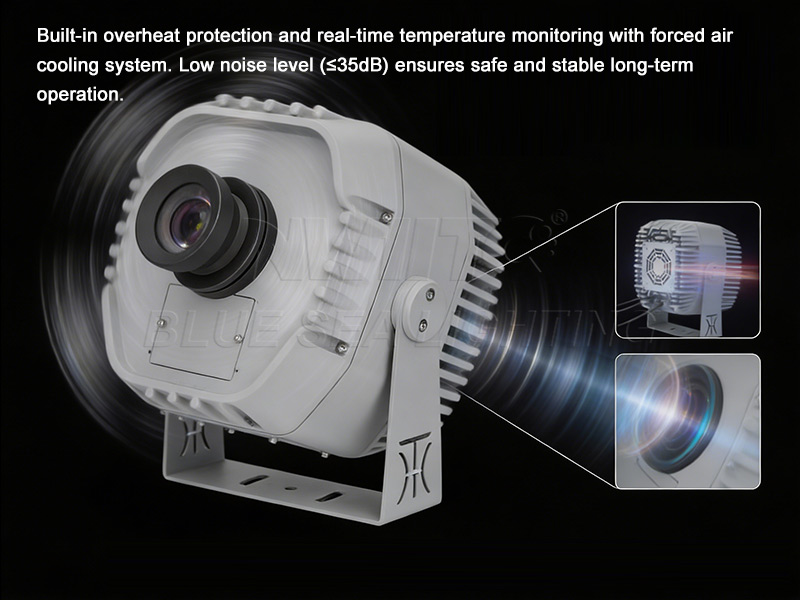

Efficient Cooling & Stable Operation

Built-inoverheat protectionandreal-time temperature monitoring work together with a forced air cooling system to ensure safe, stable, and reliable operation.

Thelow noise level (≤35dB)makes it suitable for long-term use in professional stages and outdoor installations.

Rotating Pattern Projection Effects

Equipped with 6 custom pattern piecesand a floating shadow effect, supporting 360° stepless rotation.

The projector delivers sharp beam edges and clear image definition, ideal for logo projection, stage atmosphere creation, wall and floor decorative effects.
