Overview – Outdoor Rotating Pattern Projection Solution

This IP-rated rotating pattern projector is designed for outdoor landscape lighting, cultural tourism projects, and architectural visual installations.

Available in100W, 150W, and 200W power options, it offers flexible brightness choices for different project scales while maintaining consistent visual performance.

IP 100w/150w/200w 6pcs Picture Rotating Pattern Projector Light With Floating Effect Application Scenarios
Bluesea Lighting's IP 100w/150w/200w 6pcs Picture Rotating Pattern Projector Light With Floating Effect is ideal for: Large concerts, outdoor music festivals, landmark light shows, theater stages, theme parks, and more.

1. Power & Electrical

• Input Voltage: AC100–240V, 50/60Hz

• Power Factor: PFC ≥0.98

• Light Source Power (Optional): 100W / 150W / 200W

• Maximum Power (Matching Option): 120W / 170W / 220W

2. Build & Protection

• Protection:Overheat Protection+Full Power Overheat Protection Device

• Temperature Control: Real-time Monitoring of Light Source Temperature

• Adjustable Angle: Vertical Adjustment >90°

• Cooling:Forced Air Cooling | Button: Button Mode

• Noise Level: ≤35dB (0.5m)

• Operating Environment: -25°C to +35°C

• Casing:Aluminum Metal Casing | Internal: Electronic Moisture-proof Treatment

• Waterproof Rating: IP65

• Dimensions:239 × 220 × 209 mm | Weight: 5.8 kg

• Adjustment Method: Manual

3. Effects & Control

• Colors:7 Colors + White Light (Customizable)

• Patterns:6 Custom Pattern Pieces

• Floating Effect: 1 Custom Floating Shadow Panel

• Pattern Rotation: 360° Angle Adjustment, Stepless Rotation

• Channels:6 Channels | Connection: Independent Input

• Control Modes: DMX512 / Manual Mode / Master-Slave

• Display:LED Digital Display

• Other Controls: Offline Automatic Operation

4. Optics & Output

• Color Temperature: 7500K

• Electronic Focus: 10%–0–10%

• Flicker Speed: 1–20Hz/second

• Beam Angle (Optional): 30° / 45° / 60°

• Beam Spot Shape: Sliced Square

• Dimming Curve: 0–100%

IP 100w/150w/200w 6pcs Picture Rotating Pattern Projector Light With Floating Effect Benefits

Durable Aluminum Housing for Outdoor Use

The fixture features a solid aluminum alloy housingthat resists corrosion and oxidation in long-term outdoor environments.

This structure ensures stable operation and reliable heat dissipation, making it suitable for permanent or semi-permanent outdoor installations.

Stable Performance with Intelligent Thermal Protection

Built-inreal-time temperature monitoringautomatically manages internal heat to prevent overheating.

This protection system helps extend the lifespan of the light source and ensures stable performance during extended operation.

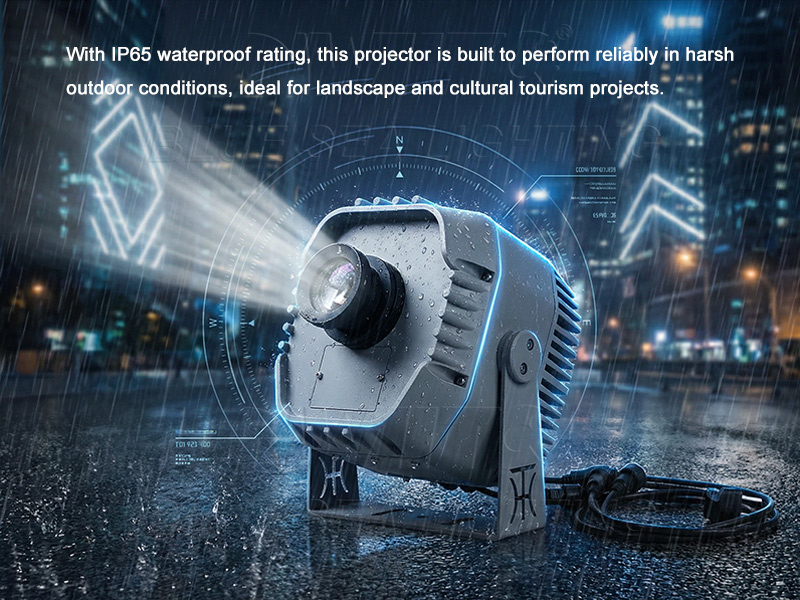

IP65 Waterproof for Harsh Outdoor Conditions

With an IP65 waterproof rating, the projector performs reliably in rain, humidity, and challenging outdoor weather conditions.

It is ideal forlandscape lighting, cultural tourism displays, outdoor events, and architectural projections.

Wide Application Scenarios for Outdoor Projects

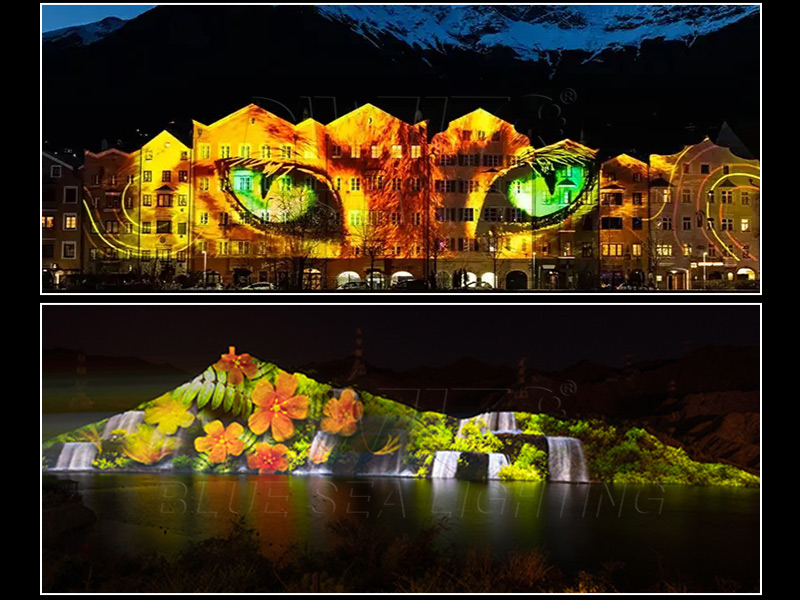

Designed for outdoor events, holiday displays, architectural projections, and cultural tourism projects, this rotating pattern projector delivers vivid visual impact across diverse environments.

It adapts easily to festivals, stage performances, building facades, and landmark lighting, providing creative projection solutions for a wide range of outdoor applications.

Why Choose Bluesea Lighting's IP 100w/150w/200w 6pcs Picture Rotating Pattern Projector Light With Floating Effect?

High-End Stage Lighting Quality — Without the High-End Price

With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, andcompetitive pricingto deliveroutstanding valuefor lighting professionals worldwide.

Multiple Power Options for Different Project Needs

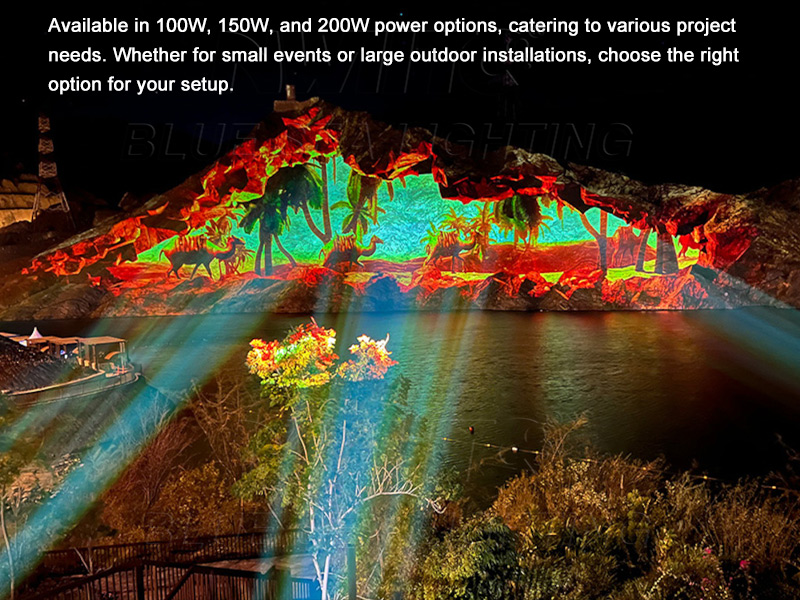

This series is available in 100W, 150W, and 200W versions, allowing users to choose the appropriate output for small scenes or large-scale installations.

From intimate outdoor displays to expansive landmark projects, the power options provide greater flexibility and scalability.

360° Stepless Rotation & Flexible Projection

360° angle adjustment with stepless rotation allows precise control of projection direction.

This flexibility makes it easy to adapt to architectural façades, stages, and outdoor landscape installations.

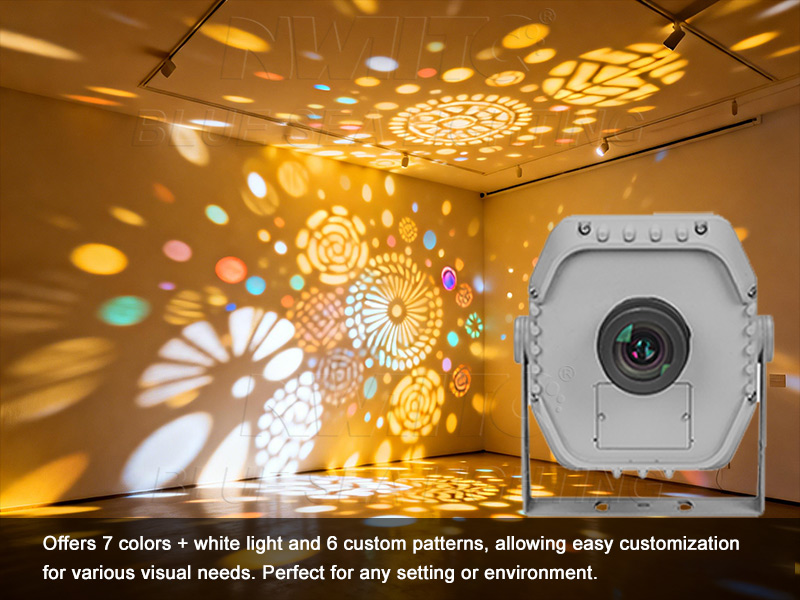

Multi-Color & Custom Pattern Effects

Supports7 colors plus white light combined with6 customizable pattern gobos, delivering rich and layered projection effects.

Ideal for creating immersive visual atmospheres in galleries, exhibitions, themed spaces, and indoor decorative environments.

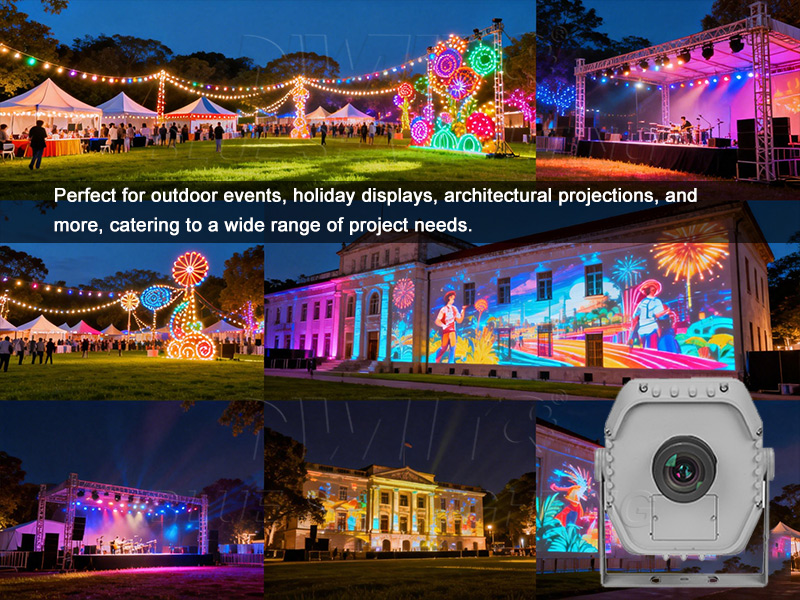

Outdoor Event & Cultural Tourism Applications

Ideal foroutdoor events, holiday displays, architectural projections, and cultural tourism lighting.

Available in 100W, 150W, and 200W options, allowing flexible selection for different project scales and brightness requirements.
