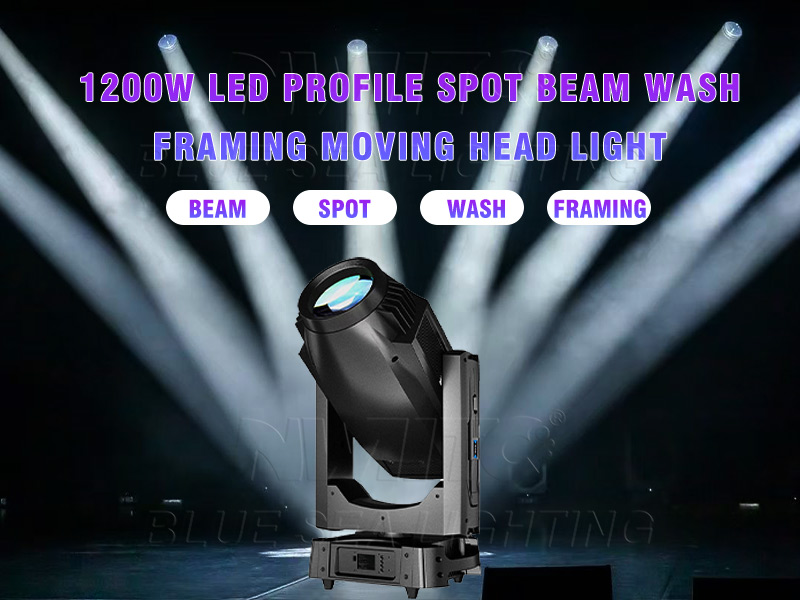

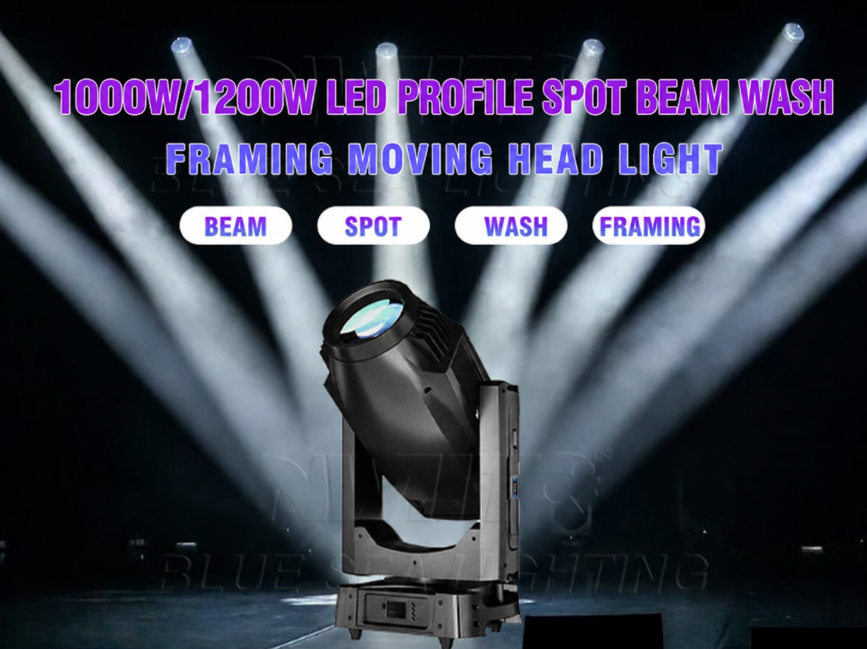

Versatile 1200W 4-in-1 Hybrid Moving Head Light

The 1200W LED hybrid fixture integratesbeam, spot, wash, and framing functions, delivering exceptional brightness and dynamic versatility.

Its powerful output ensures high-impact stage performance, ideal for professional touring, concerts, and theater productions.

Super Bright 1000w/1200w Profile Spot Beam Wash Framing 4in1 Hybrid CMY CTO Led Moving Head Light Application Scenarios
Bluesea Lighting's Super Bright 1000w/1200w Profile Spot Beam Wash Framing 4in1 Hybrid CMY CTO Led Moving Head Light is ideal for: professional theaters, large-scale concerts, touring productions, TV studios, high-end stage shows, theme park performances, and architectural lighting events.

1. Power & Electrical

• Input Voltage: 100–240V AC, 50/60Hz

• Rated Power: 1400W

• LED Module: 1200W white LED, lifespan 50,000 hours

• Color Temperature: 7800K

2. Light Source & Color System

• Beam Angle: 5°–50°

• Color Wheel: 6 colors + high CRI film + open

• CMY:Independent CMY linear color mixing

• CTO:Linear CTO 6500K–3200K adjustment

3. Gobo System – Static & Rotating

• Static Gobo Wheel: 5 gobos + 2 open

• Rotating Gobo Wheel: 6 replaceable rotating glass gobos + open

• Gobo Size: Image Ø23 mm, Outer Ø28 mm, Thickness 1.1 mm

4. Framing System

• 4-blade framing, independent movement

• Full blackout & variable-speed adjustment

• Framing Rotation: ±90°, overall system 180° rotation

• Supports high-precision mid-air beam shaping

5. Iris, Focus & Effects

• Fast electric iris, linear zoom 5–100%

• Soft-light mode with adjustable spot angle

• Focus:Linear focus

• Dimming:0–100% linear

• Strobe:0.5–20 Hz

• Prism:High-definition 4-facet prism

6. Pan/Tilt & Motor

• Pan:540°

• Tilt:270°

• Auto position correction

• Motor:3-phase silent motor, 16-bit precision control

7. Control & Operation

• DMX Channels: 39 channels

• Operation Modes: DMX512, RDM

• Interface:LCD LED display + button control

8. Build Quality & Physical Data

• Housing:5052 aluminum + nylon + glass fiber, V0 flame-retardant, waterproof

• Protection Level: IP20

• Size:326 × 461 × 878 mm

• Net Weight: 46 kg

Super Bright 1000w/1200w Profile Spot Beam Wash Framing 4in1 Hybrid CMY CTO Led Moving Head Light Benefits

Designed for High-End Stage Productions

The light enhances dance performances, theater shows, and large concertswith sharp key light and immersive atmospheric effects.

Stable, high-output projection ensures clear visibility of performers and scenic elements, making it suitable for premium venues and live events.

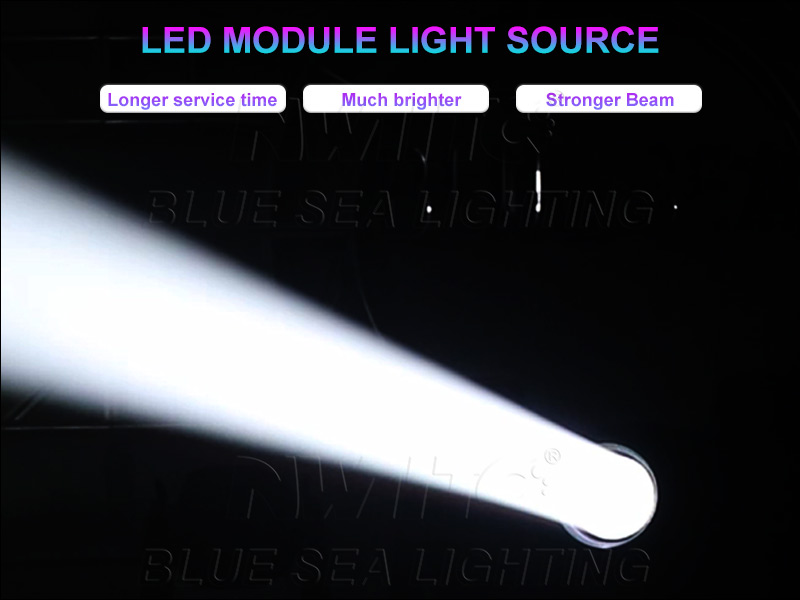

Advanced LED Module for Strong, Long-Life Output

A high-efficiency LED module provides longer service time, higher brightness, and a stronger, more focused beam.

The robust optical system maintains consistent intensity over distance, delivering powerful white light that cuts through haze and stage effects with ease.

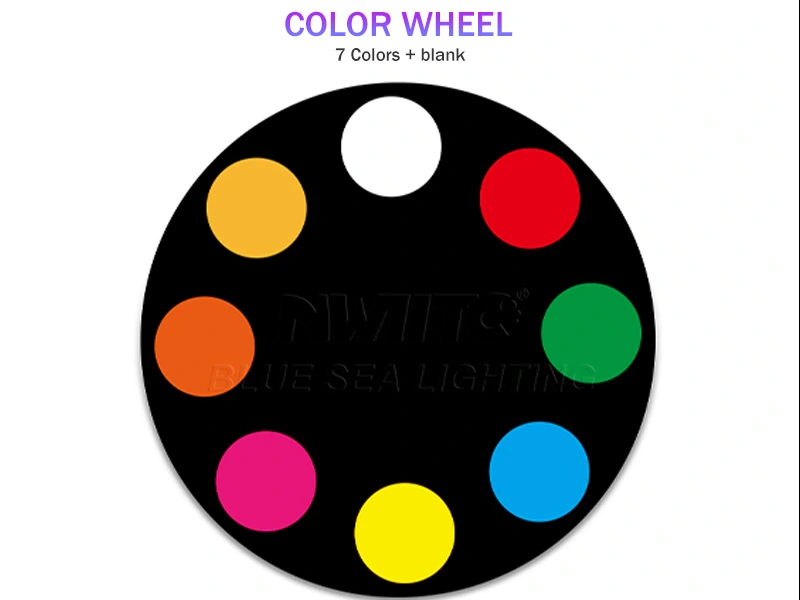

Color Wheel – 7 Colors + Blank

The fixture features a 7-color wheel plus blank, offering vibrant options such as amber, red, green, blue, pink, and more.

This system enables quick color switchinganddynamic visual transitions, making it ideal for creating bold stage atmospheres and expressive lighting moods.

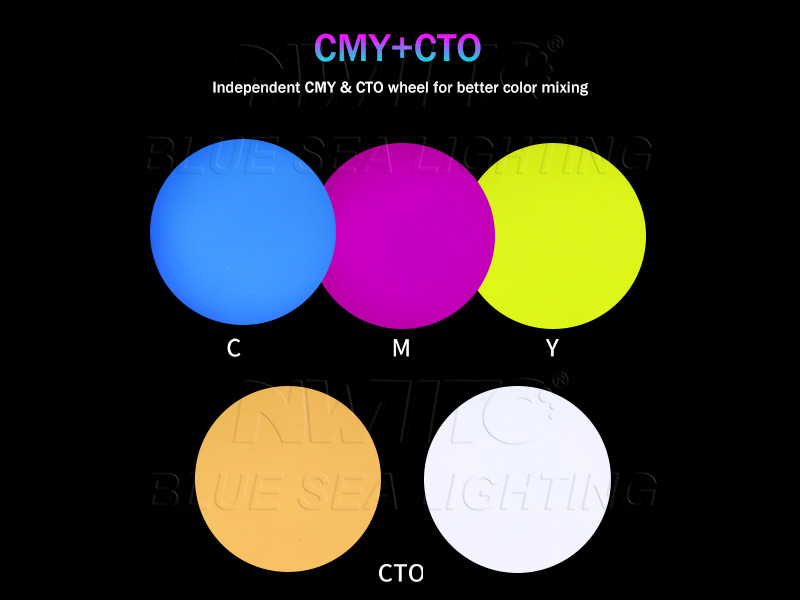

CMY + CTO Color Mixing System

An independent CMY + CTO system providessmooth, seamless color mixing with precise control of cyan, magenta, yellow, and color temperature correction.

This allows the fixture to achieve richer tones, softer gradients, and accurate white balance, delivering professional-level color performance for high-end stage productions.

Rotating Gobo Wheel

The rotating gobo wheel includes 6 interchangeable glass gobos + open, offering a wide range of dynamic projection patterns.

These gobos provide crisp, detailed textures ideal for atmospheric effects, creating motion-rich visuals for stages, theaters, and live events.

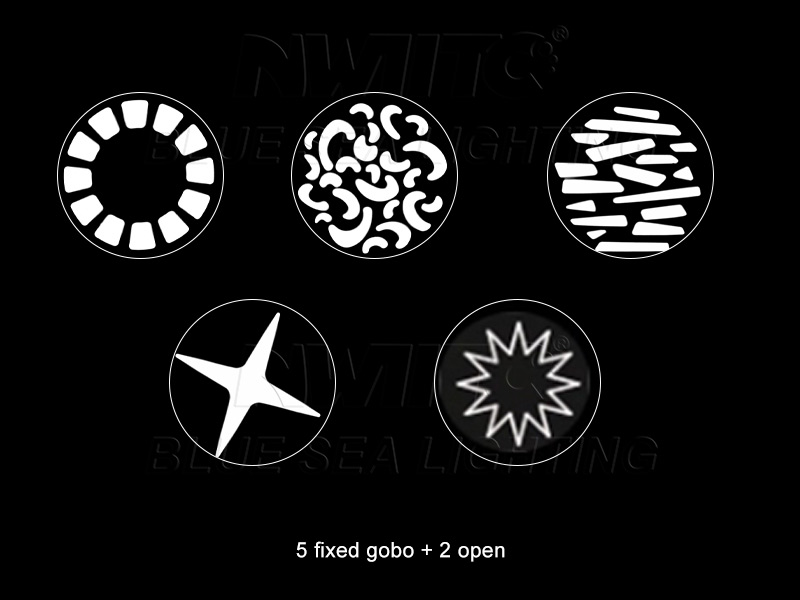

Fixed Gobo Wheel

The fixed gobo wheel offers5 fixed gobos + 2 open, enabling stable and bold pattern projection.

With high-contrast shapes and clean edges, this wheel enhances static effects, logos, and precise pattern displays for professional lighting designs.

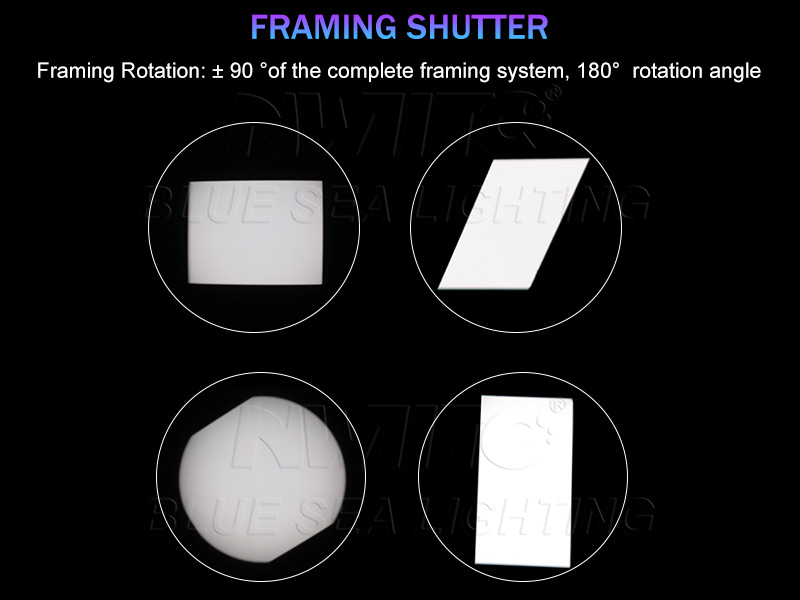

Framing Shutter System

The framing system provides ±90° rotation of the complete framing module and a 180° rotation angle, allowing precise shaping of the light beam.

Each shutter blade moves independently, enabling accurate cuts, geometric shapes, and advanced framing effects for theatrical and studio applications.

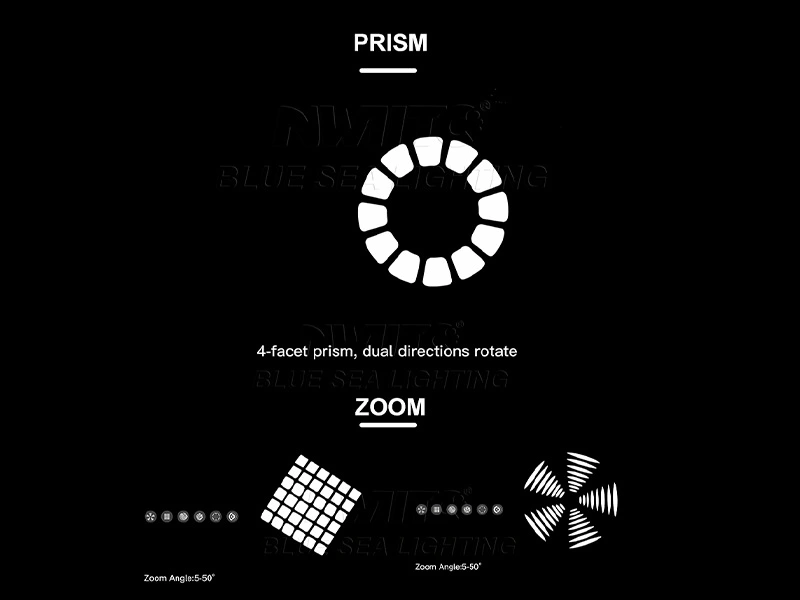

Prism & Zoom Effects

The fixture includes a 4-facet prism with dual-direction rotation, delivering multi-layered and dimensional light effects.

The5°–50° zoom rangeallows seamless transitions from narrow, powerful beams to wide, soft washes, providing exceptional versatility across different stage requirements.

Why Choose Bluesea Lighting's Super Bright 1000w/1200w Profile Spot Beam Wash Framing 4in1 Hybrid CMY CTO Led Moving Head Light?

High-End Stage Lighting Quality — Without the High-End Price

With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, andcompetitive pricingto deliveroutstanding valuefor lighting professionals worldwide.

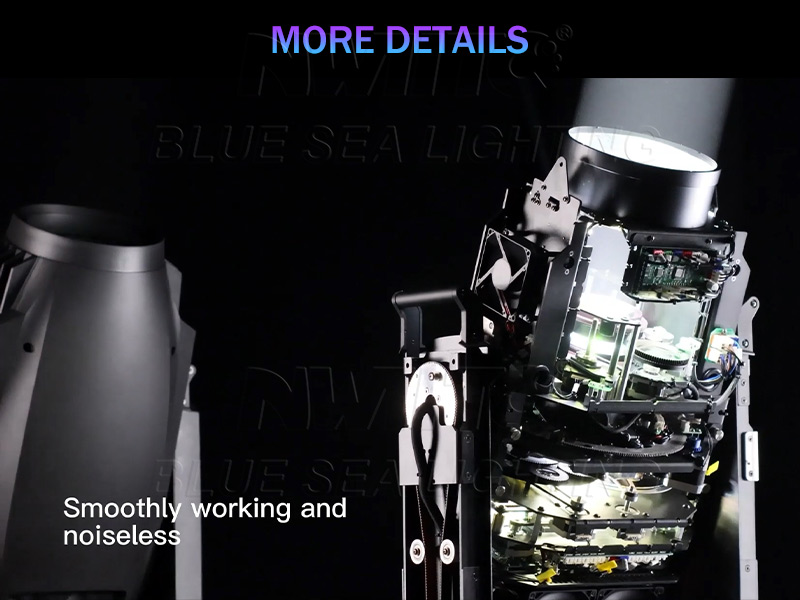

Internal Structure & Precision Optical System

The fixture features a robust internal architecture that ensures smooth and noiseless operation during long-term use.

Itslinear focus and zoom system delivers precise optical control, enabling sharp beam shaping and seamless transitions between beam, spot, and wash effects—ideal for high-performance professional stage applications.

Stage Performance Visual Effects

The fixture delivers powerful, high-precision beam and spot effects, creating dramatic atmospheres for professional stage performances.

Whether producing sharp white beams,dynamic multi-angle washes, orrichly colored mood lighting, the light enhances choreography and stage presence with exceptional clarity and depth. Itsfast movement and consistent output make it ideal for dance shows, theatrical productions, and large-scale artistic performances.
