19pcs 40w BEE EYE Rotating Pixel Zoom Wash LED Moving Head Light
BLM1940ZR
19pcs 40w BEE EYE Rotating Pixel Zoom Wash LED Moving Head Light: The new LEDwash benchmark
The BEE-EYE has revolutionized the way we think of the traditional LED stage show lighting. The innovative optical unit of 19pcs 40w BEE EYE Rotating Pixel Zoom Wash LED Moving Head Light enhances the uniformity and efficiency of the light output. The ability which can control each single LED individually and the rotating front lens have made spectacular kaleidoscopic projections and captivating eye-catching effects possible. The advanced effect engine has made it easier to routinely use macro effects, which would otherwise be difficult to program. These technological innovations make the BEE-EYE a multifunction product in one product: it is a high-performance LED wall washer, a perfect beam light and a projector for spectacular visual effects all in one.
19pcs 40w BEE EYE Rotating Pixel Zoom Wash LED Moving Head Light even offers more versatility and more interactivity with the media servers, it is very quiet.
The BEE-EYE has revolutionized the way we think of the traditional LED stage show lighting. The innovative optical unit of 19pcs 40w BEE EYE Rotating Pixel Zoom Wash LED Moving Head Light enhances the uniformity and efficiency of the light output. The ability which can control each single LED individually and the rotating front lens have made spectacular kaleidoscopic projections and captivating eye-catching effects possible. The advanced effect engine has made it easier to routinely use macro effects, which would otherwise be difficult to program. These technological innovations make the BEE-EYE a multifunction product in one product: it is a high-performance LED wall washer, a perfect beam light and a projector for spectacular visual effects all in one.
19pcs 40w BEE EYE Rotating Pixel Zoom Wash LED Moving Head Light even offers more versatility and more interactivity with the media servers, it is very quiet.
Quantity
19pcs 40w BEE EYE Rotating Pixel Zoom Wash LED Moving Head Light
19pcs 40w BEE EYE Rotating Pixel Zoom Wash LED Moving Head Light: The new LEDwash benchmark
The BEE-EYE has revolutionized the way we think of the traditional LED stage show lighting. The innovative optical unit of 19pcs 40w BEE EYE Rotating Pixel Zoom Wash LED Moving Head Light enhances the uniformity and efficiency of the light output. The ability which can control each single LED individually and the rotating front lens have made spectacular kaleidoscopic projections and captivating eye-catching effects possible. The advanced effect engine has made it easier to routinely use macro effects, which would otherwise be difficult to program. These technological innovations make the BEE-EYE a multifunction product in one product: it is a high-performance LED wall washer, a perfect beam light and a projector for spectacular visual effects all in one.
19pcs 40w BEE EYE Rotating Pixel Zoom Wash LED Moving Head Light even offers more versatility and more interactivity with the media servers, it is very quiet.
The BEE-EYE has revolutionized the way we think of the traditional LED stage show lighting. The innovative optical unit of 19pcs 40w BEE EYE Rotating Pixel Zoom Wash LED Moving Head Light enhances the uniformity and efficiency of the light output. The ability which can control each single LED individually and the rotating front lens have made spectacular kaleidoscopic projections and captivating eye-catching effects possible. The advanced effect engine has made it easier to routinely use macro effects, which would otherwise be difficult to program. These technological innovations make the BEE-EYE a multifunction product in one product: it is a high-performance LED wall washer, a perfect beam light and a projector for spectacular visual effects all in one.
19pcs 40w BEE EYE Rotating Pixel Zoom Wash LED Moving Head Light even offers more versatility and more interactivity with the media servers, it is very quiet.
VIDEO
FEATURES
- 19pcs x 40W RGBW LED, 850W, 6000K
- OSRAM 40W LED lamp beads RGBW 4 in 1
- White CT Emulation 2500-8000K
- Total output up to 50000 hours
- Built-in rich effect program
- 0-100% Linear Dimming Modes
- 2 color switching modes (RGBW/CMY)
- Versatile, 5 operating modes: wash, beam, FX (Kaleido effects), graphics, special effects
- 4-60°, 37500lux@5m ,minimum angle and even light spread
- Rotating front lens for countless vortex effects & small waist effect, for aerial or"kaleidoscopic"projection use
- Individual LED control for each parameter can be rotated in both directions at fast/slow speed
- Invisible front grid
- Beam edge softening control (in wash mode)
- Exclusive parallel beam consisting of an array of individually controllable micro-beams
- Enhanced electronic engine for dynamic beam pattern design, with digital accuracy and repeatability

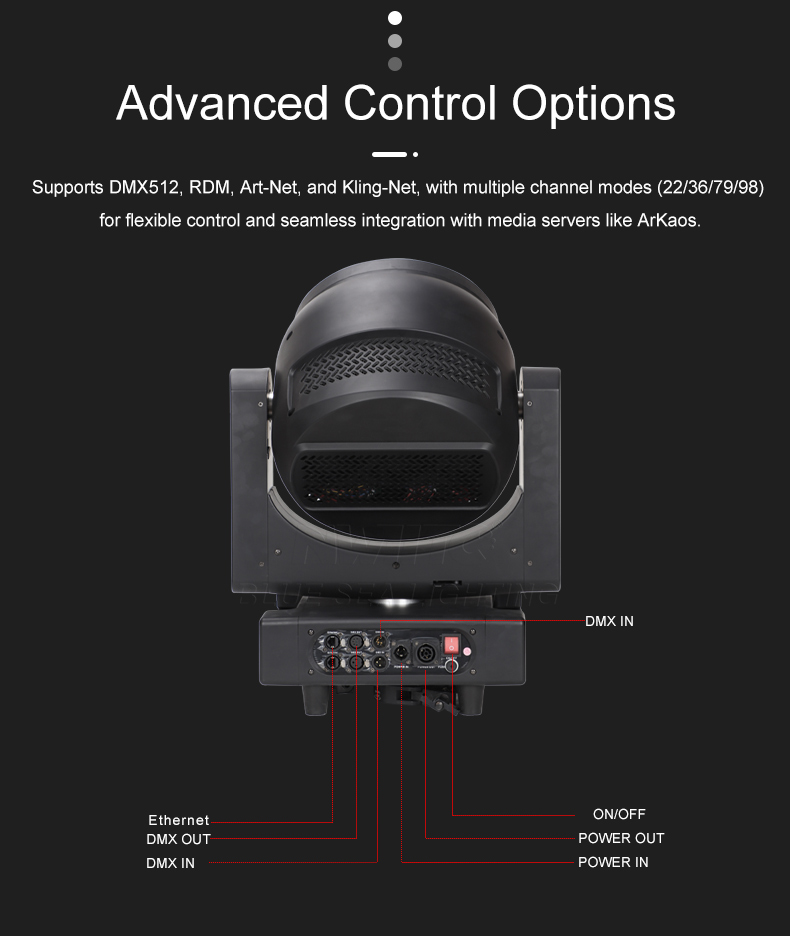

- Art-Net / RDM
- Arkaos Kling-Net protocol already included in the firmware
- RGB auto-tuning to lamp CT Emulation
- Tungsten Lamp Emulation
SPECIFICATIONS

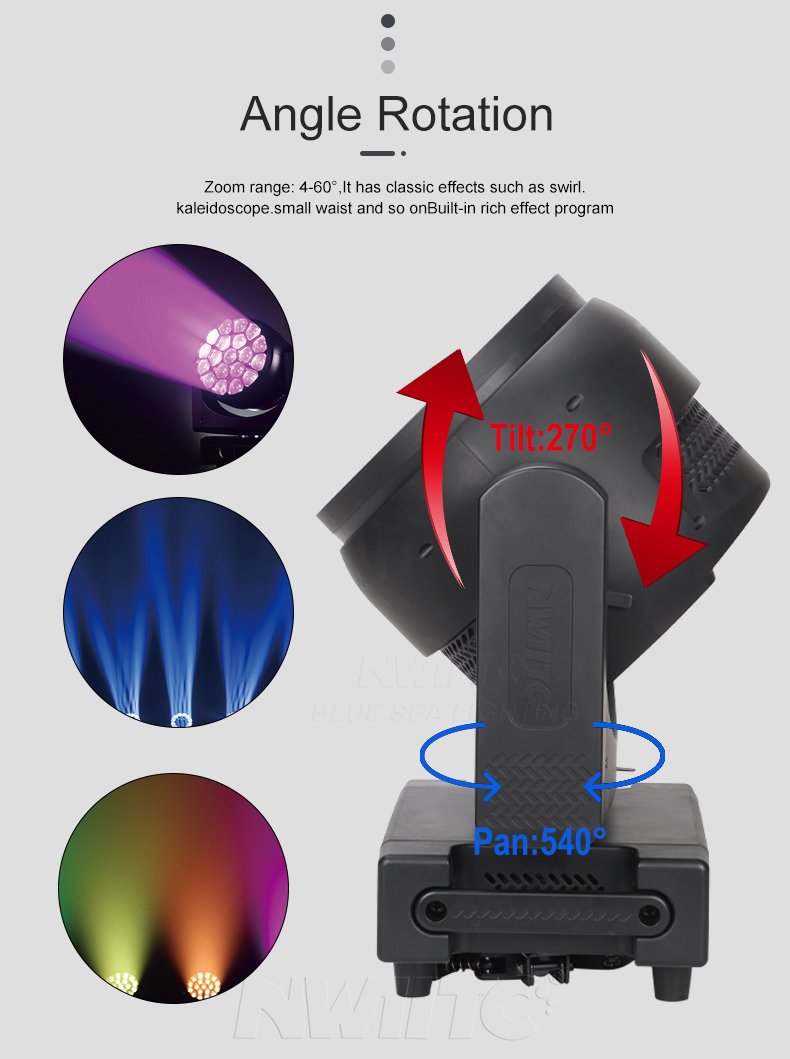

MODEL NO.BLM1940ZR PHYSICALLength: 690 mm Width: 560 mm Height: 49 mm head straight up Net Weight: 22 kg Carton Packing (1 in 1): Size: 69×56×49cm Gross weight: 28kg Flightcase Packing (2in1): Size: 120×84×47cm Gross weight: 96kg DYNAMIC EFFECTS5 operating modes: wash, beam, FX (Kaleido effects), graphics, special effects Bi-directional Rotating Front Lens Digital Wash-Beam Framing effect Beam edge softening control (in Wash mode) Pixel Patterning Macros with enhanced control Adjustable speed stop/strobe effect, with instantaneous blackout Dedicated channel for color temperature setting White CT Emulation 2500-8000K RGBW auto-tuning to lamp CT Emulation Tungsten Lamp Emulation Adjustable speed stop/strobe effect, with instantaneous blackout Slow Strobe: 1 flash/sec Fast Strobe: 25 flash/sec 0-100% Linear Dimming ModesZoom range: 4-60°, 37500lux@5m ,minimum angle Electronic Zoom Range Movement by means of two stepper motors, controlled by microprocessor Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit Pan: 540° Tilt: 270° CONTROL AND PROGRAMMINGDMX protocol signal: USITT DMX 512 DMX channels: 22/36/79/98 CH DMX signal interface: 3-pin network port input and output Self-charging battery Art-Net / RDM Arkaos Kling-Net protocol already included in the firmware Display: Graphic LCD backlit b/w Display Pan/Tilt Resolution: 16 bit Dimmer Resolution: 16 bit Movement control: vectorial DMX signal connection: 3 and 5 pole XLR input & RJ45 and output Software upload through DMX input LIGHT SOURCEMaximum power：850W Light Source : 19pcs RGBW LEDs driven at 40 Watt Type: OSRAM OSTAR - Stage II LE RTDUW S2WN Color Temperature: 6,000 K Life: 50,000 hours | CONSTRUCTIONColor(s): Black Boby: Aluminium structure with die-cast plastic cover Two side handles for transportation PAN and TILT lock for transport and maintenance Housing: UV-resistant fiber-reinforced composite Display: advanced & convenient full-color LCD touch button screen with RDM ELECTRONICSLong-life auto-charging buffer battery Preset color and graphic effect macros Function reset controllable from a central control unit Menu-driven internal self-test function Ethernet ready with RJ45 socket Display: backlit black-and-white graphic LCD display Electronic check-up of every single parameter with error alarm DMX level monitoring on each channel Automatic internal data transmission error diagnostics Firmware upgrade even when the unit is not connected to the power supply Firmware transfer from one light to another SAFETY DEVICESAutomatic power safety derating in case of overheat of the LED board WORKING POSITIONWorking in any position INSTALLATIONMounting points: Fold Clamp,2 pairs of 1/4-turn locks. Orientation: Any CONNECTIONSAC power input: 1.5m integral cable without power plugDMX data in/out: 3-pin locking XLR ELECTRICALAC power: 100-240 V, 50/60 Hz Main fuse (100-120 V power):15 AT (slow blow) Main fuse (208-240Vpower): 10 AT (slow blow) TYPICAL POWER AND CURRENT110 V, 60 Hz: 977 W, 9.0 A, PF 0.995 220 V, 60 Hz: 850 W, 3.9 A, PF 0.973 THERMALCooling: Filtered forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 160° C Total heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 3340 / 3190 BTU/hr. |
