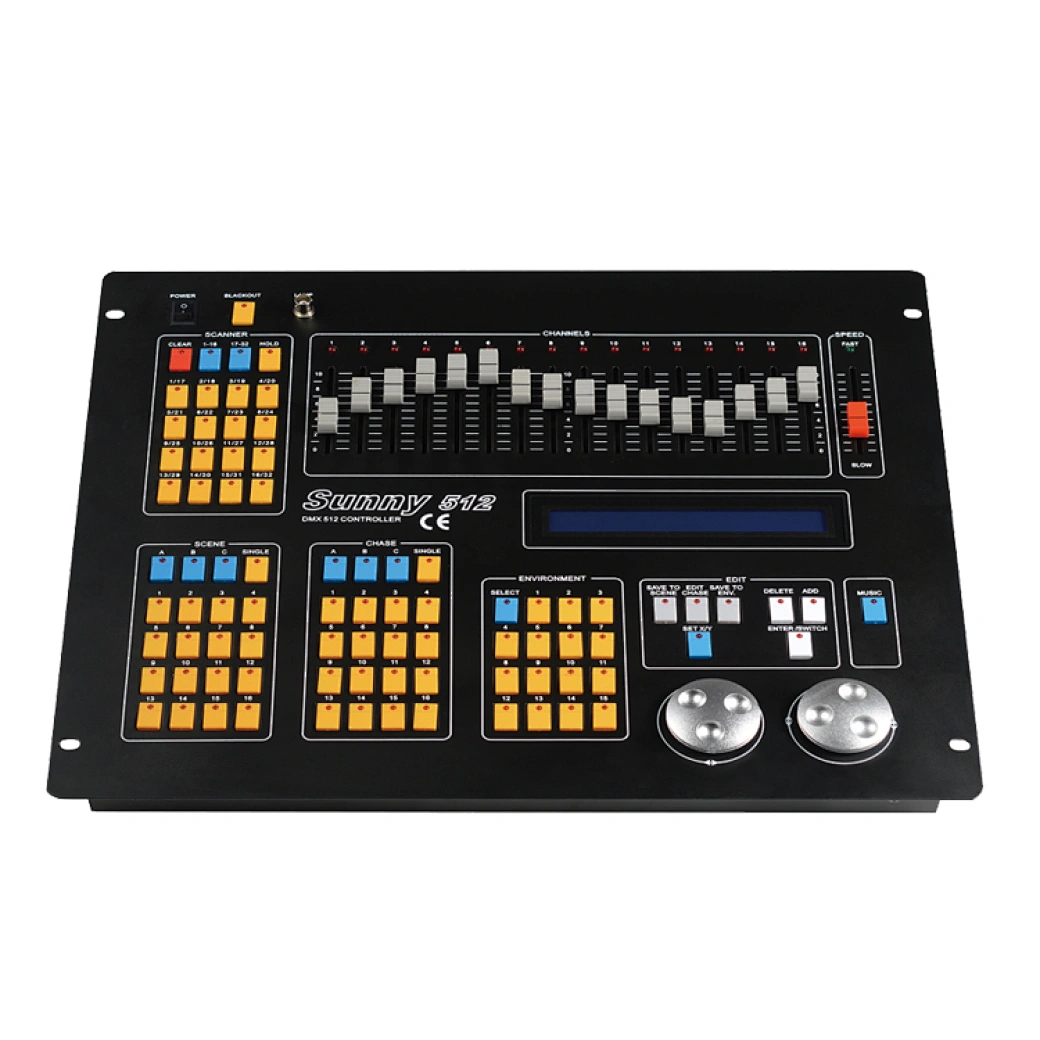

Sunny 512CH DMX512 Lighting Controller
Sunny 512CH DMX512 Lighting Controller
Sunny 512CH DMX512 Lighting Controller

Sunny 512CH DMX512 Lighting Controller

Model NO.:
BC512
Quantity:

Sunny 512CH DMX512 Lighting Controller
Model No.: BC512

Technical parameters:
Input voltage: AC100V~240V 50/60Hz
DMX512 standard, 512 DMX control channels.
2 independent output drive ports with isolation, with the ability to resist 1500VDC electrical shock. Independent board structure, easy to replace.
Can control 32 computer lights with 16 channels
Large-screen LCD display with backlight, used to display various operating parameters.
16 channel faders, 1 speed control fader.
The storage capacity of 1600 chase program steps. 48 chase programs, each program has 100 more steps. The speed of each step, the gradual change parameter is set independently. Optional music synchronization or manual speed control.
With the cooperation of the chase speed fader, the time range of the program step can be from 0.03s-180s
48 scanner scenes that can be directly called.
It can run 4 chases and 48 scenes at the same time, and can manually run 32 scanners at the same time (lighting). Manual operation (lighting) has the channel release function.
The X/Y of different types of scanners are controlled by the data wheel, and can also be controlled by the fader. DMX512 standard. 512 DMX control channels.
2 independent output drive ports with isolation, with the ability to resist 1500VDC electrical shock. Independent board structure, easy to replace.
Can control 32 computer lights with 16 channels
Large-screen LCD display with backlight, used to display various operating parameters.
16 channel faders, 1 speed control fader.
The storage capacity of 1600 chase program steps. 48 chase programs, each program has 100 more steps. The speed of each step, the gradual change parameter is set independently. Optional music synchronization or manual speed control.
With the cooperation of the chase speed fader, the time range of the program step can be from 0.03s-180s
48 computer light scenes that can be directly called
16Bit computer light X/Y control accuracy
15 environment keys, quickly call different scenes, chases, and manual operation combinations
Music trigger signal source can be taken from audio line input or built-in microphone pickup
Easy to learn and use, more efficient operation
Power off data retention
