Splicable IP65 Outdoor 96-Segment LED Strobe Bar Light

Designed for professional stage and outdoor applications, this fixture features 864 LEDs, 96-segment pixel control, powerful strobe effects, and IP65 waterproof protection.

It delivers dynamic lighting performances for concerts, festivals, and large-scale events.

Splicable IP Waterproof Outdoor 864pcs 96-Segment LED Strobe Bar Light Application Scenarios

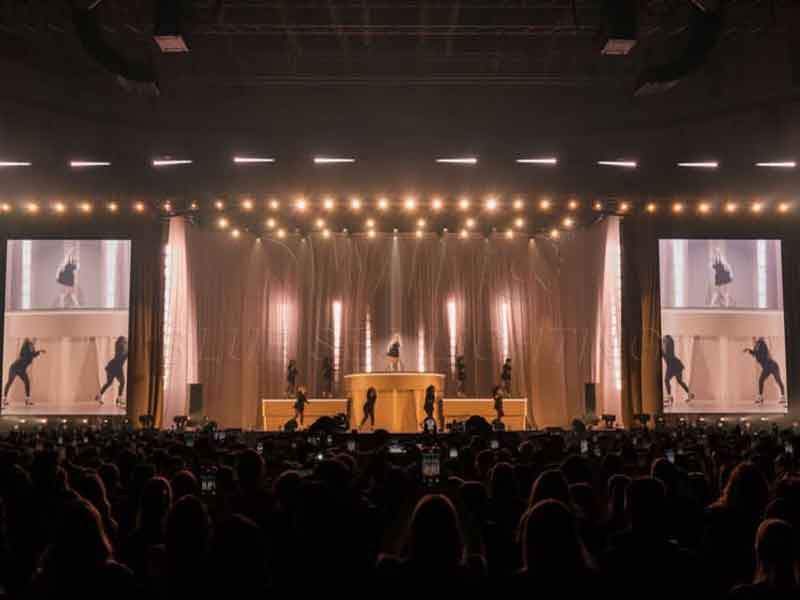

Bluesea Lighting's Splicable IP Waterproof Outdoor 864pcs 96-Segment LED Strobe Bar Light is ideal for: concerts, festivals, stage productions, TV shows, rental projects, and outdoor events.

1. Light Source & Output

Light Source: 572 × 0.5W RGB LEDs + 288 × 3W White LEDs
Power Consumption:350W
Lighting Effects: Wash & White Strobe Effects
LED Lifespan: Approx. 50,000 Hours

2. Effects & Performance

Effect Features: Rich RGB Wash Effects with Powerful White Strobe Output
Pixel Control: 96-Segment LED Design
Color Output: Smooth Color Mixing and Dynamic Effects
Cooling System: Efficient Air Cooling

3. Control & Modes

Control Modes: DMX512 / Master-Slave / Auto Run
Display: Touch-Sensitive LED Color Screen
DMX Channels: CH004 / CH014 / CH050 / CH062 / CH096 / CH098 / CH099 / CH192 / CH194
Protocol Support: DMX512 Network Control

4. Build & Protection

Protection Rating: IP65 Waterproof
Input Voltage: AC100–240V, 50/60Hz
Dimensions: 997 × 160 × 190 mm
Net Weight: 8.5 kg
Housing Design: Durable Structure for Indoor and Outdoor Applications

Splicable IP Waterproof Outdoor 864pcs 96-Segment LED Strobe Bar Light Benefits

High-Brightness 96-Segment Pixel Effects

Equipped with 572 RGB LEDs and 288 white LEDs, the fixture creates smooth color transitions, dynamic pixel chases, and intense white strobe effects.

The96-segment designprovides greater programming flexibility and stunning visual impact.

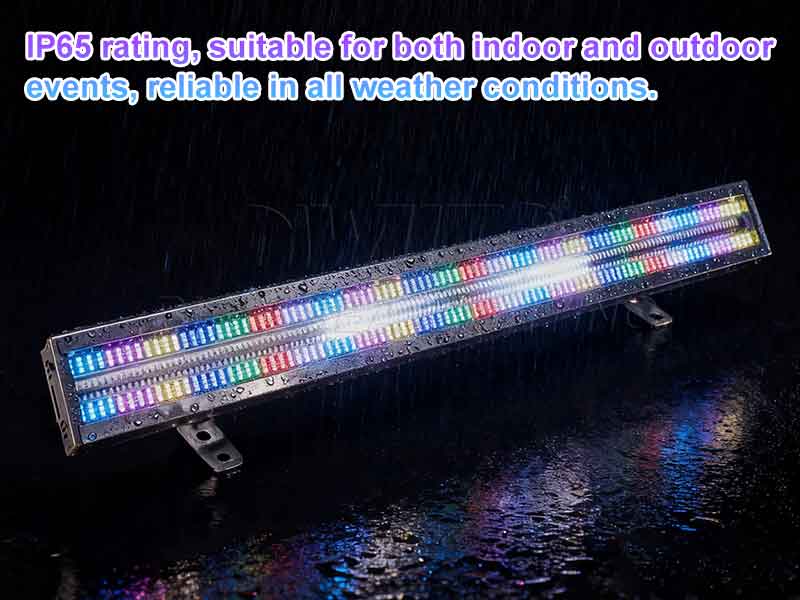

Reliable IP65 Waterproof Protection

Built with an IP65-rated waterproof housing, the fixture performs reliably in rain, dust, and harsh outdoor environments.

Perfect foroutdoor stages, festivals, architectural lighting, and touring productions.

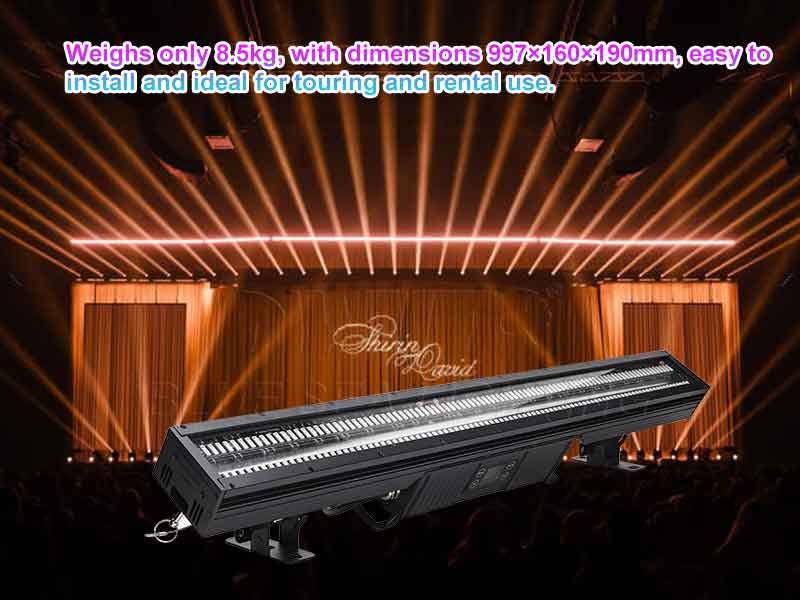

Lightweight & Easy Installation

With a compact design and a net weight of only 8.5kg, the fixture is easy to transport, install, and configure.

Its slim profile makes it ideal for rental companies, touring shows, and temporary event setups.

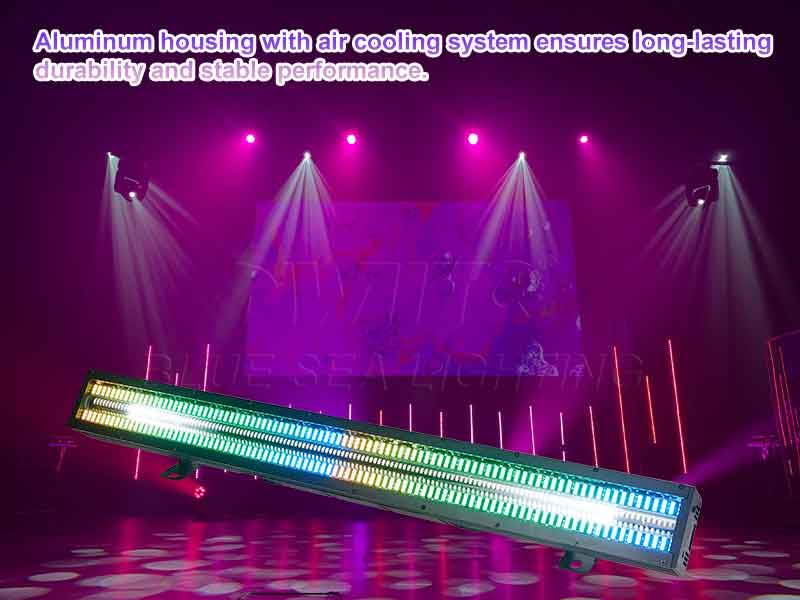

Durable Construction & Efficient Cooling

The rugged aluminum housing and integrated air-cooling systemensure excellent heat dissipation and stable operation.

Designed for long-term use, it delivers reliable performance even during demanding professional applications.

Why Choose Bluesea Lighting's Splicable IP Waterproof Outdoor 864pcs 96-Segment LED Strobe Bar Light?

High-End Stage Lighting Quality — Without the High-End Price

With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, andcompetitive pricingto deliveroutstanding valuefor lighting professionals worldwide.

Professional Stage Applications

Perfect for concerts, live events, festivals, and stage productions, delivering stunning visual effects and immersive lighting experiences.
