Splicable IP Waterproof 7X7 Pixel LED Matrix Light

BMLO700

★ RGBW + WW dual light source with 700W total power for vivid and bright output.
★ Supports both overall and single-point pixel control for creative lighting effects.
★ IP66 waterproof and dustproof design, ideal for outdoor shows and installations.
★ Compatible with DMX512 and Ethernet control, offering multiple channel options.
★ Durable magnesium alloy housing with black sand finish for excellent strength and heat dissipation.

Quantity:

Contact Now

add to cart

Splicable IP Waterproof 7X7 Pixel LED Matrix Light Product Description
Thisinnovative high-power LED matrix light is specially designed for professional stages, concerts, and outdoor events. With its modular splicable design, each 7×7 panel can be easily connected to form massive creative light walls, enabling endless visual possibilities. Thepowerful RGBW + WW dual-color COB LED systemprovides brilliant brightness and precise color mixing, creating smooth transitions and vibrant effects. It’s ideal for large-scale performances, architectural illumination, and visual art installations, ensuring both high performance and flexibility for any production.
Splicable IP Waterproof 7X7 Pixel LED Matrix Light Application Scenarios Bluesea Lighting's Splicable IP Waterproof 7X7 Pixel LED Matrix Light is designed for a wide range of professional lighting applications. With its powerful brightness, pixel control, and IP66 waterproof performance, it delivers outstanding results both indoors and outdoors. Perfect for concert stages, music festivals, TV studios, nightclubs, theaters, architectural façades, theme parks, and art installations, this light enables creative visual displaysandimmersive lighting environments. Its modular and splicable designmakes it ideal forlarge-scale stage backgrounds and visual walls, offering flexibility for designers and event planners to bring unique lighting visions to life.
Splicable IP Waterproof 7X7 Pixel LED Matrix Light Technical Specifications
1. Basic Information Product Name: Splicable IP Waterproof 7×7 Pixel LED Matrix Light Input Voltage: AC100–240V, 50–60Hz Power Consumption: 700W (Full-bright strobe mode) Light Source: RGBW: 380W + WW: 320W LED Luminous Flux: WW: 7500 lumens; RGBW: 4670 lumens Color Temperature: WW: 2800K; RGBW adjustable 2700K–10000K LED Lifespan: 50,000 hours 2. Optical & Color System Beam Angle: WW: 2.5°; RGBW: 105° Flood Angle: WW: 4.8°; RGBW: 147° Color System: RGBW + WW Mixing Strobe: 0–30Hz high-speed strobe Dimming: 4 dimming curves, 0–100% smooth dimming	3. Control & Display Control Method: DMX512 / Ethernet DMX Channels: 1CH / 5CH / 7CH / 10CH / 12CH / 13CH / 16CH / 1813CH / 1817CH / 1825CH Display: 2.4-inch TFT color display Pixel Matrix Control: Overall control + single-point control 4. Structure & Environment Protection Rating:IP66 Operating Temperature: -15°C ~ 45°C Cooling System: Natural cooling Casing Material: Magnesium alloy, semi-gloss fine black sand outdoor coating Power Connection: AC3PX integrated input/output connectors (Max linking: 3 units) Signal Connection: Xichuang waterproof 3-pin XLR input/output connectors (Max linking: 32 units) Dimensions: 500 × 500 × 123mm Net Weight:15.1kg Carton Dimensions: 55 × 55 × 16cm Flight Case Dimensions: 1166 × 610 × 734mm Packing Accessories: 1× Power Cord, 1× Signal Cable, 1× User Manual
Splicable IP Waterproof 7X7 Pixel LED Matrix Light Benefits
PRODUCT FEATURES Thehigh-power RGBW + WW dual-color LED systemensuresultra-bright outputandsmooth color mixing for any professional lighting environment. The7×7 pixel matrix designallowsindividual pixel control, enabling creative, customizable, and dynamic lighting effects that bring your stage and visual setups to life.
	LIGHTING PERFORMANCE Wide beam and flood angles (2.5° beam / 105° flood) deliver bothfocused intensityandbroad, even coverage for versatile stage applications. Themodular and splicable design allows multiple panels to be seamlessly connected, ideal for large-scalebackgrounds, immersive environments, and professional stage productions.
OUTDOOR APPLICATION Built with anIP66 waterproof housing, this LED matrix light is ideal for outdoor concerts, festivals, architectural lighting, and permanent installations. It ensuresstable performance under rain, humidity, and dusty conditions, offering long-lasting reliability for all-weather operation.
	DIMMING FUNCTION 4 dimming curveswith0–100% smooth dimmingprovideprofessional-grade lighting transitions, ensuring precise brightness control for live shows, video recording, and creative effects.
Why Choose Bluesea Lighting's Splicable IP Waterproof 7X7 Pixel LED Matrix Light? High-End Stage Lighting Quality — Without the High-End Price With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, andcompetitive pricingto deliveroutstanding valuefor lighting professionals worldwide.
01 — Multiple DMX channel modes (1CH–1825CH)andEthernet controlallowflexible programming and high compatibility with various consoles. Professional-grade connectors (AC3PX power, XLR signal)withIP66 waterproof sealingensure stable performance in any environment. 02—Durable magnesium-aluminum alloy bodywithanti-corrosion coatingguarantees long lifespan and outdoor reliability. Thenatural cooling system provides efficient heat dissipation and stable operation even in extreme environments (-15°C to 45°C).
	PRODUCT DIMENSIONS Compact and modular 500×500×123mm design, engineered for easy installation and seamless splicing. The precise structural layout ensures perfect alignment for large-scale setups and professional stage use.
PRODUCT EFFECT DISPLAY Showcasesbrilliant RGBW + WW color effects, withindividual pixel mappinganddynamic visual transitions. Perfect for concerts, live performances, TV shows, clubs, and architectural displays, creating immersive light environments with stunning visual impact.

Splicable IP Waterproof 7X7 Pixel LED Matrix Light Product Description

Thisinnovative high-power LED matrix light is specially designed for professional stages, concerts, and outdoor events. With its modular splicable design, each 7×7 panel can be easily connected to form massive creative light walls, enabling endless visual possibilities.

Thepowerful RGBW + WW dual-color COB LED systemprovides brilliant brightness and precise color mixing, creating smooth transitions and vibrant effects. It’s ideal for large-scale performances, architectural illumination, and visual art installations, ensuring both high performance and flexibility for any production.

Splicable IP Waterproof 7X7 Pixel LED Matrix Light Application Scenarios
Bluesea Lighting's Splicable IP Waterproof 7X7 Pixel LED Matrix Light is designed for a wide range of professional lighting applications. With its powerful brightness, pixel control, and IP66 waterproof performance, it delivers outstanding results both indoors and outdoors.

Perfect for concert stages, music festivals, TV studios, nightclubs, theaters, architectural façades, theme parks, and art installations, this light enables creative visual displaysandimmersive lighting environments. Its modular and splicable designmakes it ideal forlarge-scale stage backgrounds and visual walls, offering flexibility for designers and event planners to bring unique lighting visions to life.

Splicable IP Waterproof 7X7 Pixel LED Matrix Light Technical Specifications

1. Basic Information

Product Name: Splicable IP Waterproof 7×7 Pixel LED Matrix Light
Input Voltage: AC100–240V, 50–60Hz
Power Consumption: 700W (Full-bright strobe mode)
Light Source: RGBW: 380W + WW: 320W
LED Luminous Flux: WW: 7500 lumens; RGBW: 4670 lumens
Color Temperature: WW: 2800K; RGBW adjustable 2700K–10000K
LED Lifespan: 50,000 hours

2. Optical & Color System

Beam Angle: WW: 2.5°; RGBW: 105°
Flood Angle: WW: 4.8°; RGBW: 147°
Color System: RGBW + WW Mixing
Strobe: 0–30Hz high-speed strobe
Dimming: 4 dimming curves, 0–100% smooth dimming

3. Control & Display

Control Method: DMX512 / Ethernet
DMX Channels: 1CH / 5CH / 7CH / 10CH / 12CH / 13CH / 16CH / 1813CH / 1817CH / 1825CH
Display: 2.4-inch TFT color display
Pixel Matrix Control: Overall control + single-point control

4. Structure & Environment

Protection Rating:IP66
Operating Temperature: -15°C ~ 45°C
Cooling System: Natural cooling
Casing Material: Magnesium alloy, semi-gloss fine black sand outdoor coating
Power Connection: AC3PX integrated input/output connectors (Max linking: 3 units)
Signal Connection: Xichuang waterproof 3-pin XLR input/output connectors (Max linking: 32 units)
Dimensions: 500 × 500 × 123mm
Net Weight:15.1kg
Carton Dimensions: 55 × 55 × 16cm
Flight Case Dimensions: 1166 × 610 × 734mm
Packing Accessories: 1× Power Cord, 1× Signal Cable, 1× User Manual

Splicable IP Waterproof 7X7 Pixel LED Matrix Light Benefits

PRODUCT FEATURES

Thehigh-power RGBW + WW dual-color LED systemensuresultra-bright outputandsmooth color mixing for any professional lighting environment.

The7×7 pixel matrix designallowsindividual pixel control, enabling creative, customizable, and dynamic lighting effects that bring your stage and visual setups to life.

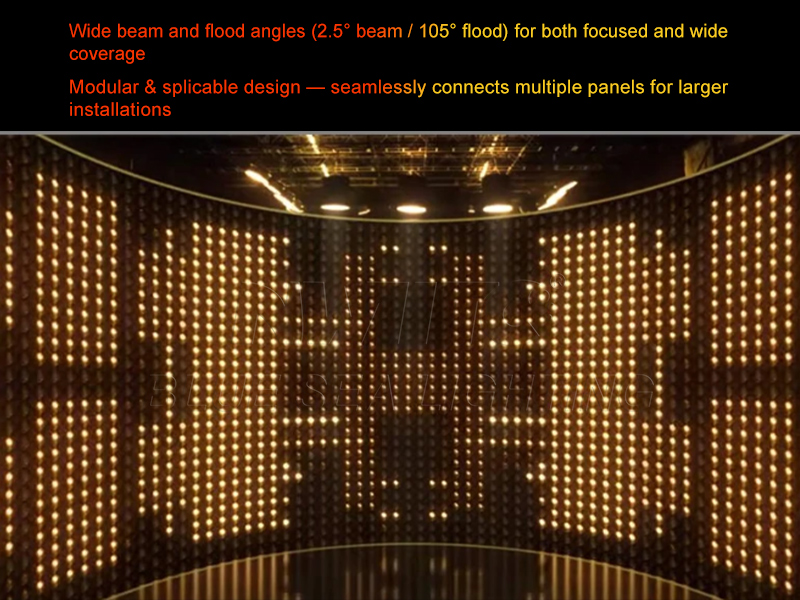

LIGHTING PERFORMANCE

Wide beam and flood angles (2.5° beam / 105° flood) deliver bothfocused intensityandbroad, even coverage for versatile stage applications.
Themodular and splicable design allows multiple panels to be seamlessly connected, ideal for large-scalebackgrounds, immersive environments, and professional stage productions.

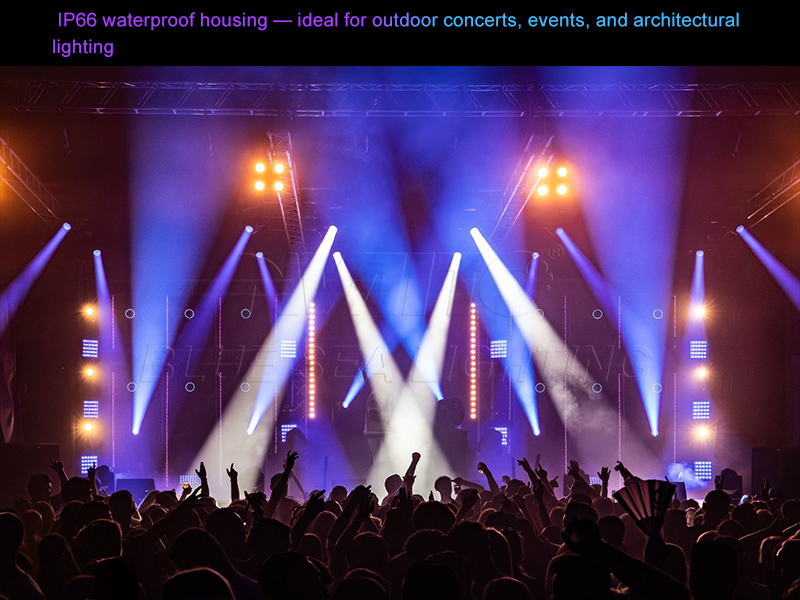

OUTDOOR APPLICATION

Built with anIP66 waterproof housing, this LED matrix light is ideal for outdoor concerts, festivals, architectural lighting, and permanent installations.

It ensuresstable performance under rain, humidity, and dusty conditions, offering long-lasting reliability for all-weather operation.

DIMMING FUNCTION

4 dimming curveswith0–100% smooth dimmingprovideprofessional-grade lighting transitions, ensuring precise brightness control for live shows, video recording, and creative effects.

Why Choose Bluesea Lighting's Splicable IP Waterproof 7X7 Pixel LED Matrix Light?

High-End Stage Lighting Quality — Without the High-End Price

With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, andcompetitive pricingto deliveroutstanding valuefor lighting professionals worldwide.

01 — Multiple DMX channel modes (1CH–1825CH)andEthernet controlallowflexible programming and high compatibility with various consoles.
Professional-grade connectors (AC3PX power, XLR signal)withIP66 waterproof sealingensure stable performance in any environment.

02—Durable magnesium-aluminum alloy bodywithanti-corrosion coatingguarantees long lifespan and outdoor reliability.
Thenatural cooling system provides efficient heat dissipation and stable operation even in extreme environments (-15°C to 45°C).

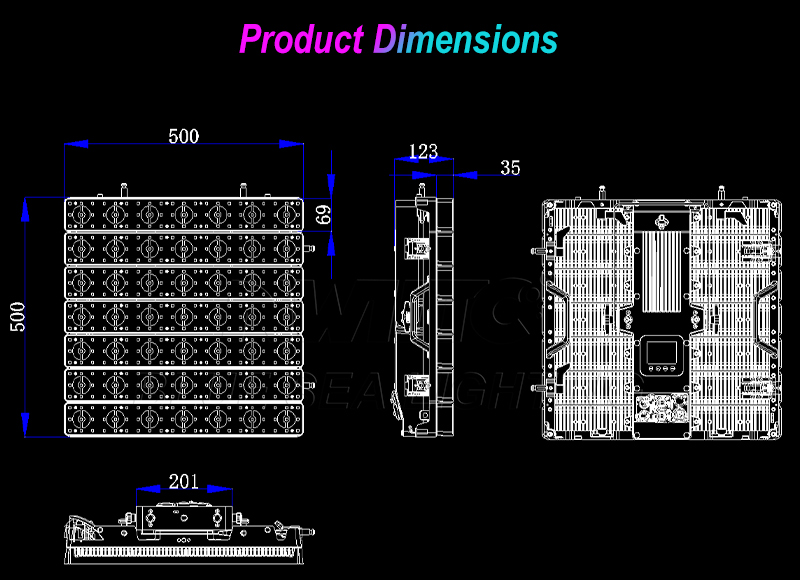

PRODUCT DIMENSIONS

Compact and modular 500×500×123mm design, engineered for easy installation and seamless splicing.

The precise structural layout ensures perfect alignment for large-scale setups and professional stage use.

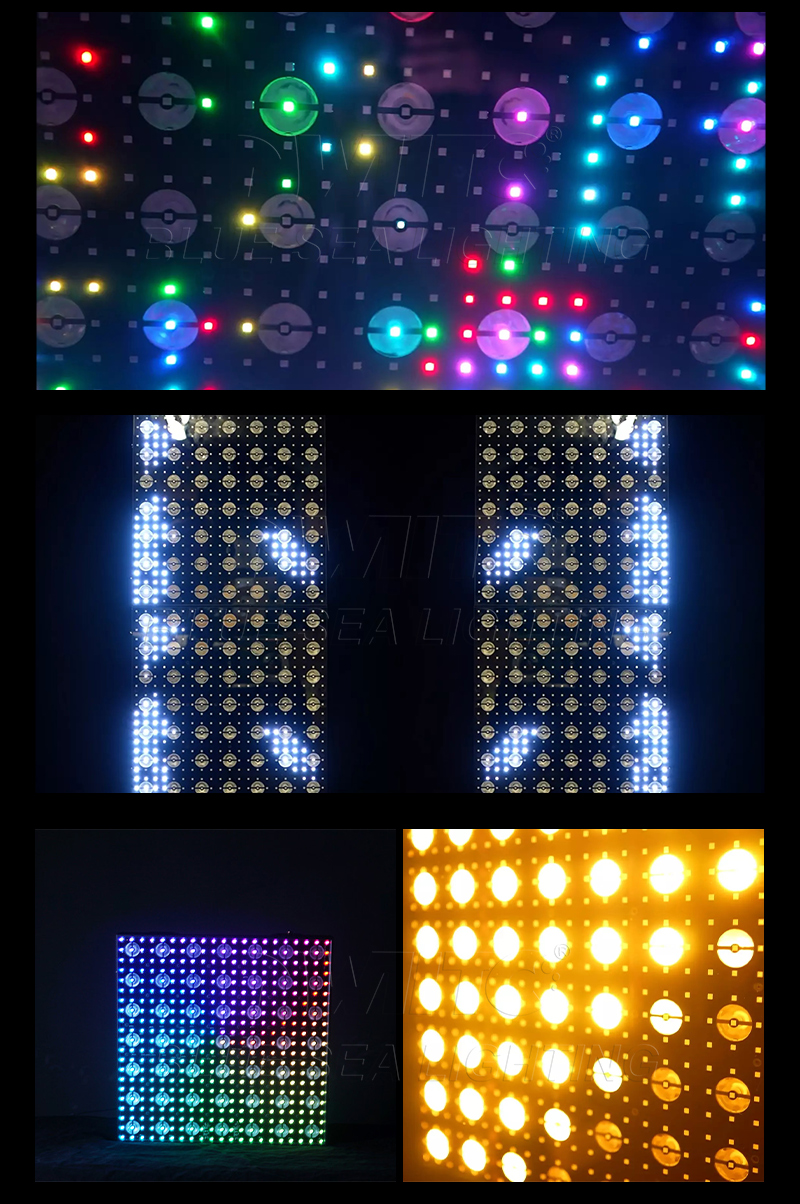

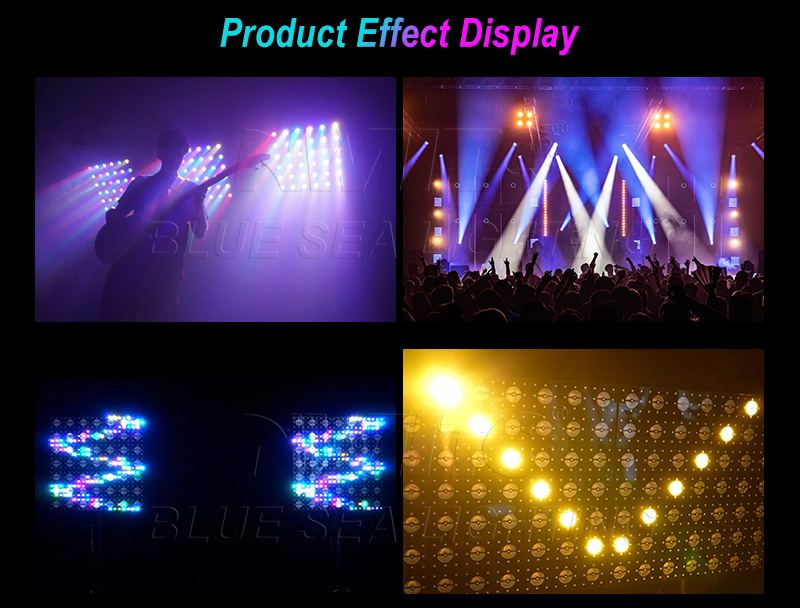

PRODUCT EFFECT DISPLAY

Showcasesbrilliant RGBW + WW color effects, withindividual pixel mappinganddynamic visual transitions. Perfect for concerts, live performances, TV shows, clubs, and architectural displays, creating immersive light environments with stunning visual impact.
