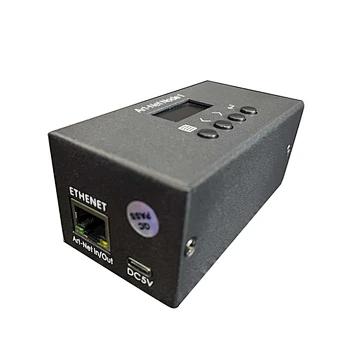

Smart Art-Net-DMX512 Network Converter
BNTDC01
Smart Art-Net-DMX512 Network Converter
Quantity
Smart Art-Net-DMX512 Network Converter
Art-Net-DMX512 Network Converter (Bidirectional) is a standard Art-Net node. So,you can use other software,consoles,controllers that support Art-Net, to distribute Art-Net data over the network. It is often used to expand the DMX output port of Tiger Touch or MA2 console.
Features:
1. Support decoding standard Art-Net protocol data into standard DMX512 data for output;
2. Support encoding standard DMX512 protocol data into standard Art-Net data output;
3.1 Type-C power supply port(5V/500mA DC),which can be powered by the USB interface of the computer;
4.1 network interface(Art-Net input/output);
5.1 XLR-3-F Canon female seat (DMX input/output);

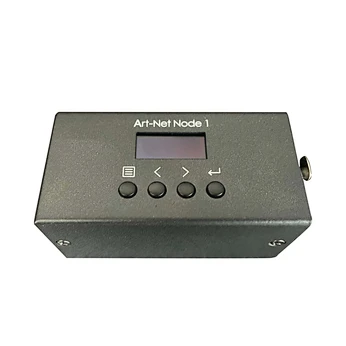

6. Parameters can be set from the panel and displayed by OLED screen;
7. Small and exquisite size, easy to store and carry.
8. G.W:0.3KG
9. Size:7×5.6×11.2cm
