Category

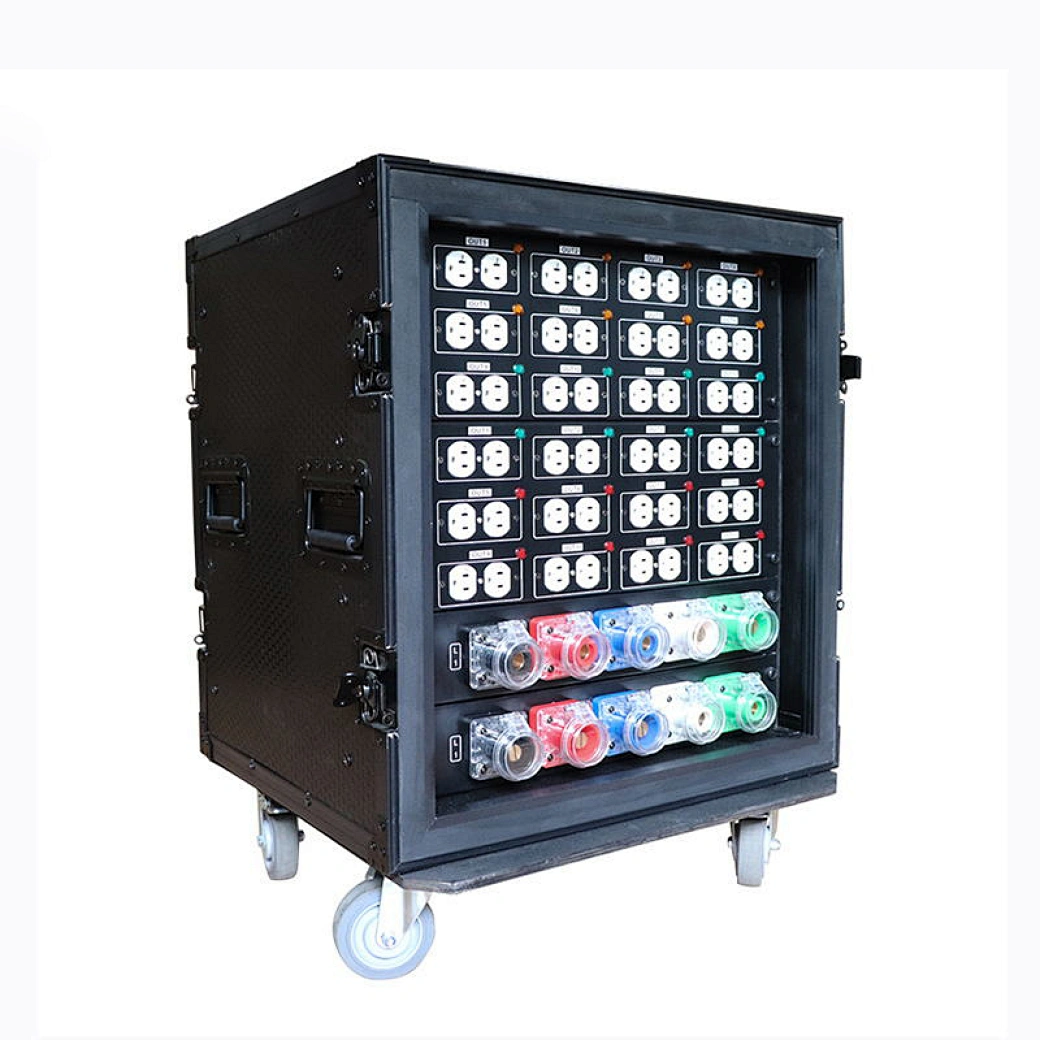

Camlock Plug IN&OUT 24 Road 20A American Plugs Distributor
BPDU2420+
Camlock Plug IN&OUT 24 Road 20A American Plugs Distributor
Quantity:
Camlock Plug IN&OUT 24 Road 20A American Plugs Distributor
Model No.: BZTA2420+
Technical parameters:
Power supply: three-phase five-wire AC220V±10%, frequency 50Hz±5%.
Input power: 400A 220V camlock plug in&out,
Output: 24 20A American plugs, Max. 24 x 4KW
Optional can be used with any load.
Equipped with 250A main switch, double protection of overload and short circuit high break air switch.
Independent three-phase voltage, current, monitoring, three-phase A.B.C pilot light indication.
Dimensions: 70*63*75CM
Weight: 51KG
Model No.: BZTA2420+
Technical parameters:
Power supply: three-phase five-wire AC220V±10%, frequency 50Hz±5%.
Input power: 400A 220V camlock plug in&out,
Output: 24 20A American plugs, Max. 24 x 4KW
Optional can be used with any load.
Equipped with 250A main switch, double protection of overload and short circuit high break air switch.
Independent three-phase voltage, current, monitoring, three-phase A.B.C pilot light indication.
Dimensions: 70*63*75CM
Weight: 51KG
