1. Versatile 3-in-1 Beam, Spot, and Wash Performance

The fixture delivers powerful beam, spot, and wash functions in one unit, making it ideal for concerts, theaters, and large stage productions.

With a 400W high-brightness LED source, CMY color mixing, and multiple effects, it produces dynamic lighting suitable for professional event environments.

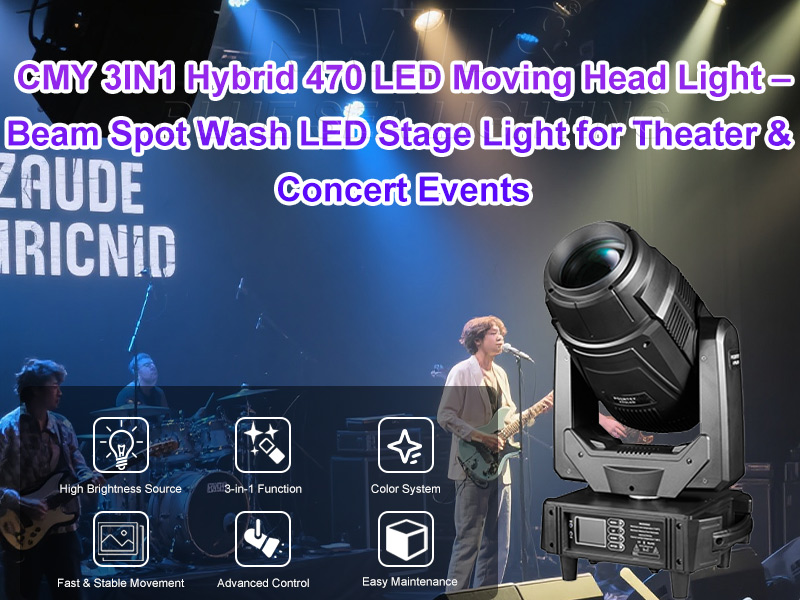

CMY 3IN1 Hybrid 470 LED Moving Head Light – Beam Spot Wash LED Stage Light for Theater & Concert Events Application Scenarios
Bluesea Lighting's CMY 3IN1 Hybrid 470 LED Moving Head Light – Beam Spot Wash LED Stage Light for Theater & Concert Events is ideal for: Large concerts, touring performances, outdoor music festivals, theater productions, TV studios, corporate events, wedding stages, theme parks, and professional stage lighting installations.

1. Power & Light Source

• Input Voltage: 100–240V AC, 50/60Hz

• Power:500W @ 220V, PF >0.9

• LED Source: 400W high-brightness modular LED

• Color Temperature: 7500K, Lifetime: 50,000 hrs

2. Color System & Effects

• Color Wheel: 13 colors + white

• CMY Color Mixing: Continuous adjustment for rich color blending

• Frost: Independent frost lens for soft diffusion

• Strobe: Electronic strobe 0.3–25 Hz, linear dimming

3. Gobo System

• Rotating Gobo Wheel: 9 gobos + white, detachable plate

• Fixed Gobo Wheel: 10 gobos + white + 4 beam patterns

• Pattern replacement supported for flexible stage design

4. Optics & Movement

• Beam Angle: 3°–35°adjustable

• Prism:6-facet rotating prism

• Focus: DMX linear focus with smooth precision

• Pan:540°, Tilt: 270°, auto-reset stepper motor

5. Cooling & Safety

• Silent fan + LED temperature display

• Overheat Protection: Auto power reduction extends LED lifespan

• Adjustable pan/tilt speed for refined movement

6. Physical & Control

• Control:DMX512, 39/34CH channel mode

• Structure: Modular design for easy maintenance

• Protection Rating: IP20

• Net Weight: 24.25 kg; Gross Weight: 29.5 kg

• Packing Size: 500 × 345 × 835 mm

• Working Temperature: Max 50°C

CMY 3IN1 Hybrid 470 LED Moving Head Light – Beam Spot Wash LED Stage Light for Theater & Concert Events Benefits

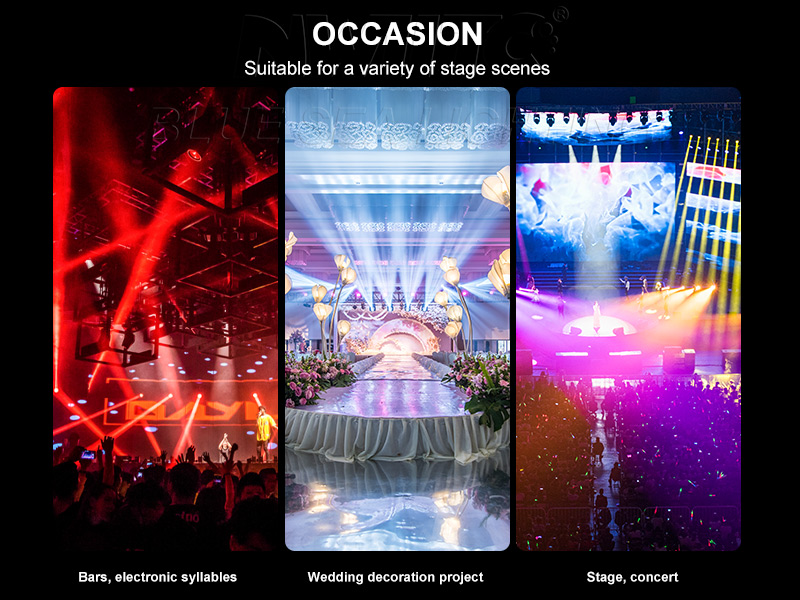

2. Suitable for a Wide Range of Stage Applications

Designed for diverse performance spaces, the light brings high-impact visual effectsto bars, weddings, concerts, and large stage setups.

Its flexible optical system and rich color capability ensure consistent and impressive illumination across various event styles.

3. High-Brightness LED Source for Strong Output

The400W modular LED engine provides intense brightness with a 7500K color temperatureand a long 50,000-hour lifespan.

The output delivers sharp, defined beams suitable for long-throw projection and high-energy stage effects.

4. Dynamic Prism and Frost Effects for Creative Stage Looks

The fixture combines multiple prisms with an independent frost lens, producing diverse and dynamic visual patterns.

These layered effects create rich beam textures, soft diffusion, and striking multi-shape projections, enhancing stage atmospheres with professional artistic impact.

5. Smooth CMY Color Mixing for Rich Visual Effects

The advanced CMY color mixing system creates smooth transitions and rich, saturated hues, offering precise control over the full color spectrum.

This feature enhances scenes with deep color expression and professional-grade lighting effects.

Why Choose Bluesea Lighting's CMY 3IN1 Hybrid 470 LED Moving Head Light – Beam Spot Wash LED Stage Light for Theater & Concert Events?

High-End Stage Lighting Quality — Without the High-End Price

With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, andcompetitive pricingto deliveroutstanding valuefor lighting professionals worldwide.

Rotating Gobo Wheel for Creative Patterns

The rotating gobo wheel offers 1 white light plus 9 rotating gobos, delivering diverse shapes and textures for dynamic stage effects.

These rotating patterns add strong visual rhythm and enhance the atmosphere in concerts and theatrical performances.

Fixed Gobo Wheel with Multi-Pattern Options

The fixed gobo wheel includes 1 white light, 10 fixed gobos, and 4 small white lightholes, with an additional dynamic gobo supporting rotation function.

This combination provides rich projection possibilities for detailed and expressive stage visuals.

Multi-Prism Effects for Layered Beam Output

The fixture integrates 6-way prisms with bi-directional rotation, creating complex, multi-layered beam effects.

Combined with vibrant colors, the prisms generate striking geometric visuals that elevate stage depth and artistic impact.

Dynamic Pattern Effects for Enhanced Visual Motion

Dynamic gobo effects produceflowing textures, rotating patterns, and vivid color transitions, offering powerful motion visuals ideal for high-energy shows.

These effects enrich the lighting design with movement, color blending, and dramatic projection depth.

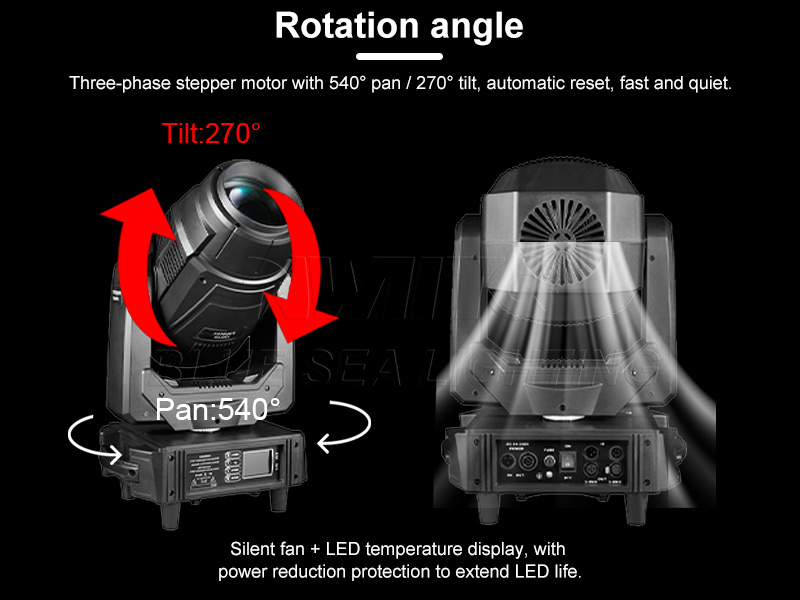

6.Fast and Accurate Pan/Tilt Movement

Equipped with athree-phase stepper motor, the fixture offers 540° pan and 270° tiltwith fast, quiet movement and automatic repositioning.

The silent fan andLED temperature protection ensure stable performance and extended LED lifespan during demanding show conditions.

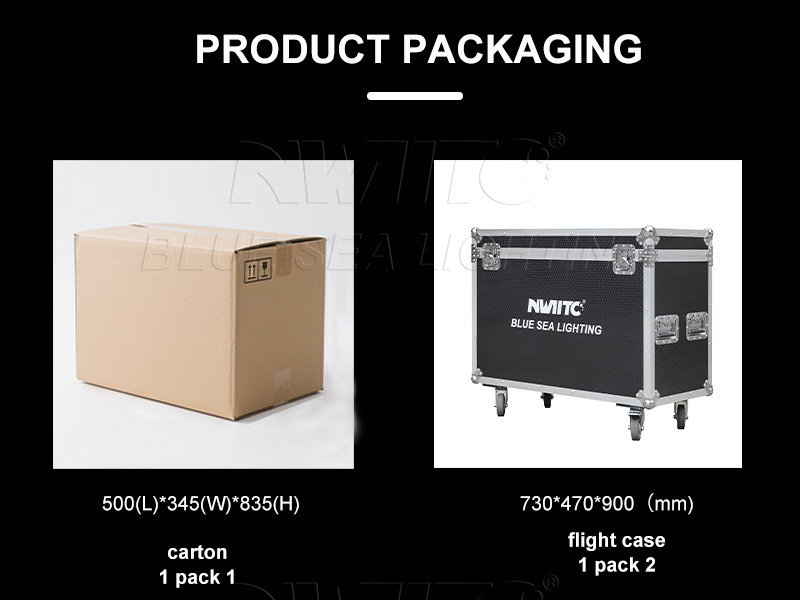

7.Product Packaging

The product is available in two secure packaging options: a durable carton for standard transportation and a protective flight case designed for touring and professional stage use.

Both packaging types ensure safe handling and reliable protection during shipping and setup.

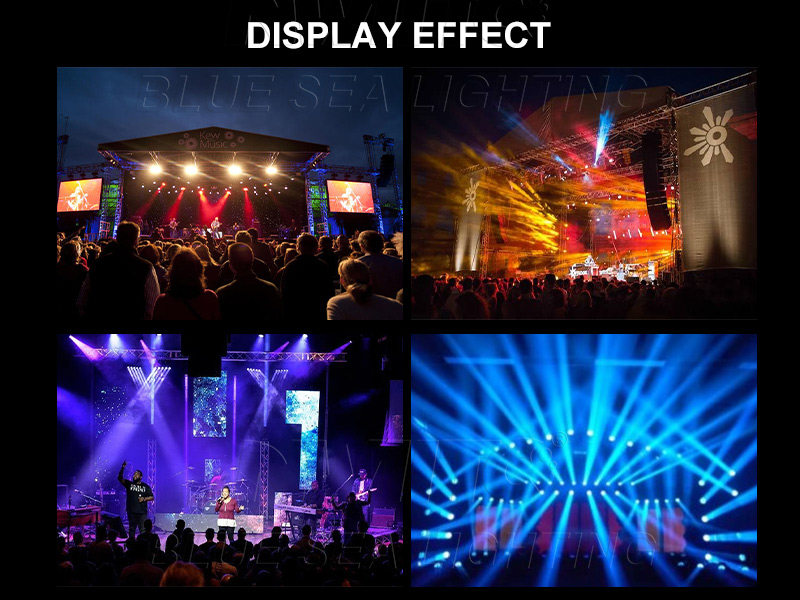

8.Display Effect

The fixture deliverspowerful beam, spot, and wash effects that enhance concerts, festivals, and stage performances with vibrant colors and dynamic movement.

Its high-output LED engine ensuressharp projection, wide coverage, and strong visual impact, creating immersive lighting atmospheres for large audiences.
