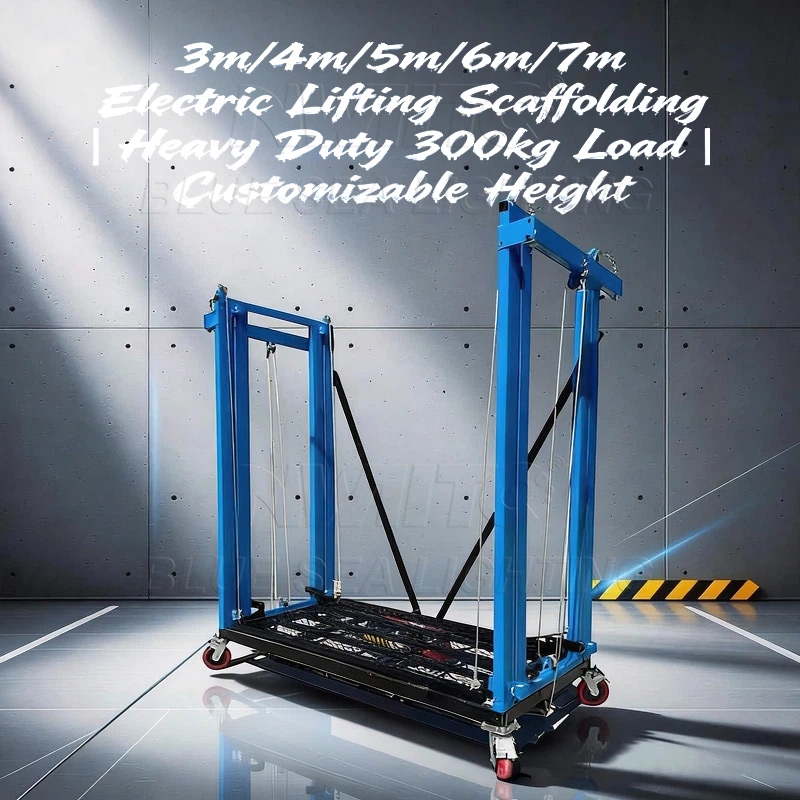

1. Heavy-Duty Electric Lifting Scaffolding Overview

The Electric Lifting Scaffolding appears in its complete form with a reinforced steel frame and sleek industrial design. Working heights from 3m to 7m, paired with a 300kg heavy-duty load capacity, provide strong support for a wide range of construction and industrial tasks.

The foldable, mobile structure ensures efficient movement and convenient storage.

3m/4m/5m/6m/7m Electric Lifting Scaffolding | Heavy Duty 300kg Load | Customizable Height Application Scenarios
Bluesea Lighting's 3m/4m/5m/6m/7m Electric Lifting Scaffolding | Heavy Duty 300kg Load | Customizable Height is ideal for: Warehouse material handling, building construction, wall plastering, equipment maintenance, factory production lines, interior and exterior painting, and other elevated operations.

1. Height Specifications

• Customizable Heights: 3m, 4m, 5m, 6m, 7m (Customization Available)

2. Core Performance

• Lifting Method: Electric Lift

• Rated Load Capacity: 300kg

3. Electrical & Cargo Platform

• Input Voltage: 220Vac or 110Vac (Optional)

• Cargo Platform Size: 1.5m (L) × 0.8m (W)

4. Build, Materials & Packaging

• Main Material: Widened & Thickened Steel

• Steel Dimensions: 6 × 6cm (Cross-Section)

• Steel Thickness: 3.2mm

• Additional Accessories: Brackets & guardrails included for 4m+ models

• Packaging (Wooden Box): 279cm (L) × 108cm (W) × 64cm (H)

• Weight by Height:
  • 3m: 260kg   4m:280kg
  • 5m: 300kg   6m:325kg   7m:350kg

3m/4m/5m/6m/7m Electric Lifting Scaffolding | Heavy Duty 300kg Load | Customizable Height Benefits

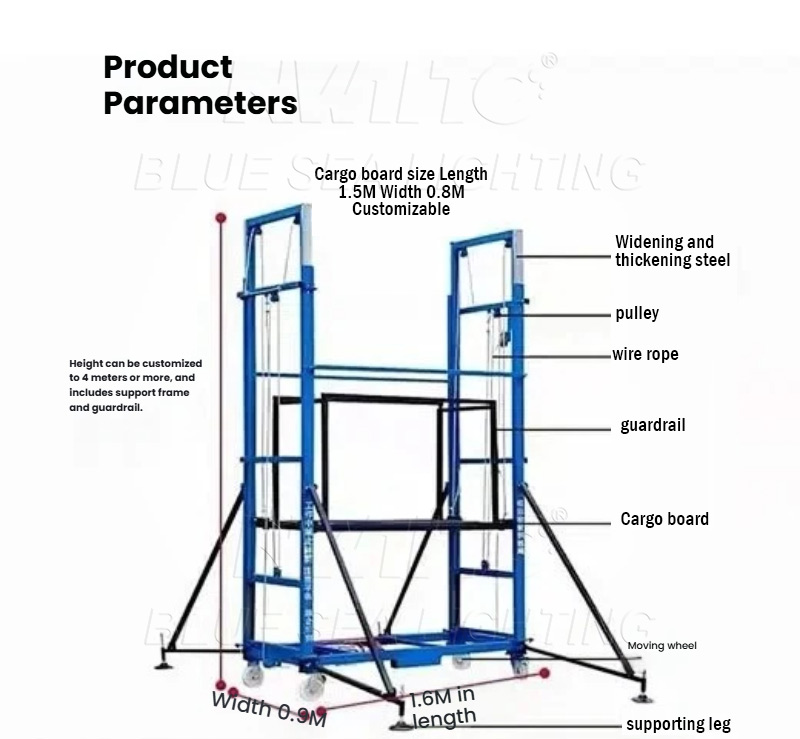

2. Structural Layout and Key Components

The scaffolding structure is shown with a 1.5m × 0.8m cargo board,widened steel frame,pulley system, and steel wire ropes clearly displayed.

The main frame uses 6×6cm, 3.2mm-thick strengthened steel, delivering excellent durability and long-term stability during elevated operations.

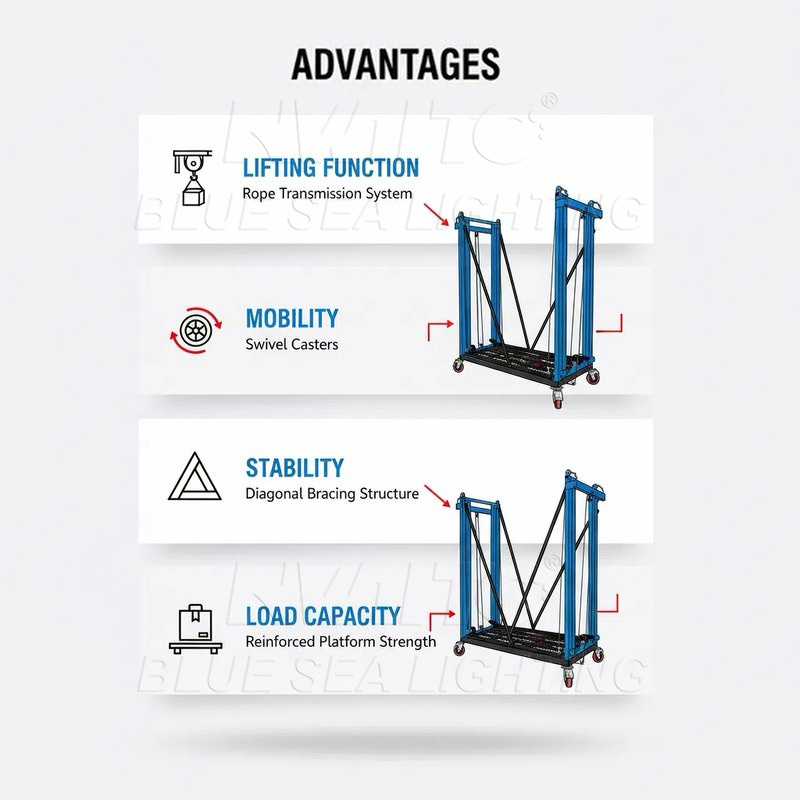

3. Core Advantages for Professional Use

Key functional advantages are highlighted, including a rope-driven lifting mechanism,360° swivel casters,diagonal bracing system, and reinforced load-bearing platform.

These features combine to provide smooth lifting,easy mobility,strong stability, and high load capacity, meeting the needs of continuous industrial operation.

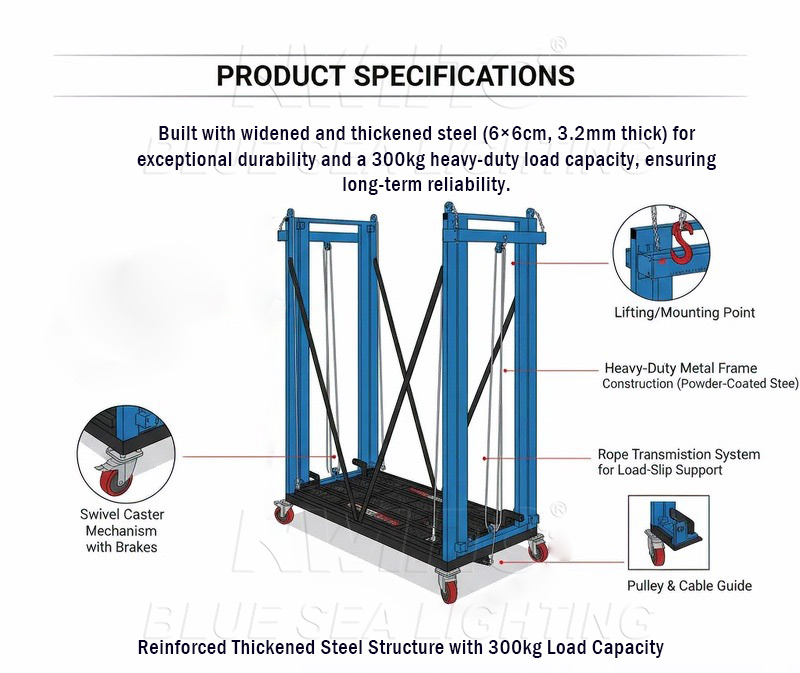

4. Reinforced Engineering and Technical Design

Mechanical details such as thelifting mount,anti-slip cargo platform,powder-coated steel frame, and rope transmission assembly are visible.

The heavy-duty construction ensures 300kg reliable load capacity, maintaining safety and performance under intensive daily use.

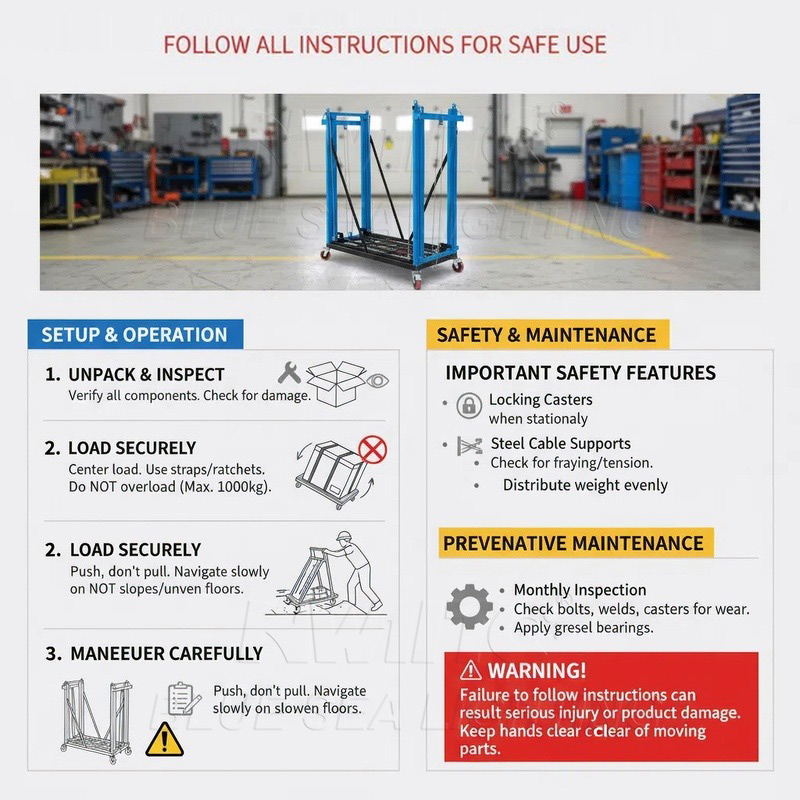

5. Safety and Maintenance Guidance

Operating procedures and maintenance guidelines are clearly presented, covering unpacking, centered loading, careful maneuvering, and routine inspections.

Important design elements include locking casters,steel cable support checks, and monthly structural maintenance, ensuring safe and long-lasting operation.

Why Choose Bluesea Lighting's 3m/4m/5m/6m/7m Electric Lifting Scaffolding | Heavy Duty 300kg Load | Customizable Height?

High-End Stage Lighting Quality — Without the High-End Price

With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, andcompetitive pricingto deliveroutstanding valuefor lighting professionals worldwide.

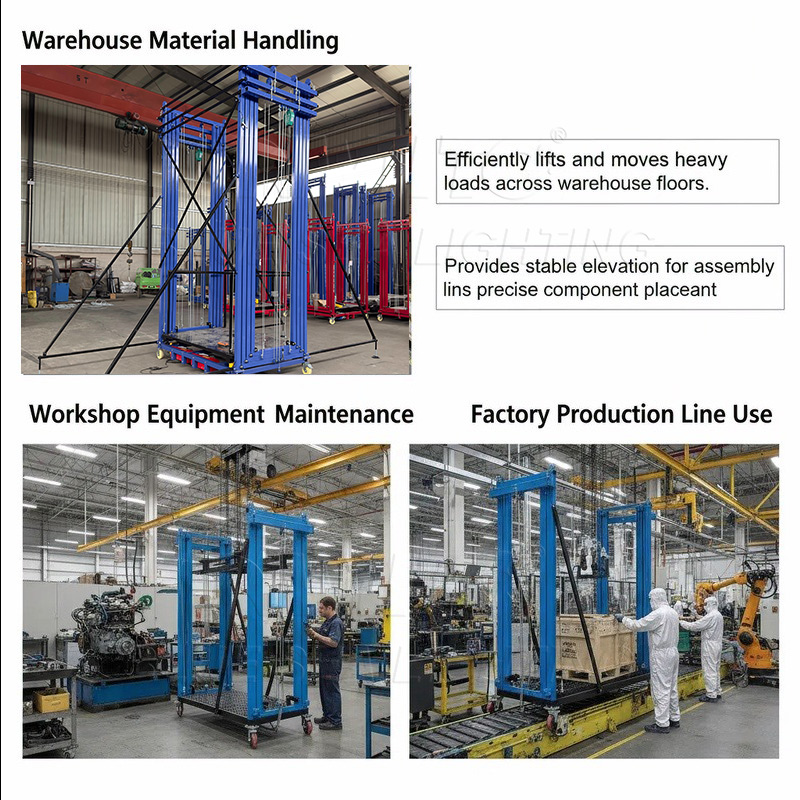

6. Warehouse Lifting and Material Handling

The scaffolding is shown lifting and transporting heavy goods across warehouse aisles with stability.

Its structure supports high-efficiency movement and providessteady elevation for loading, unloading, and assembly tasks in storage environments.

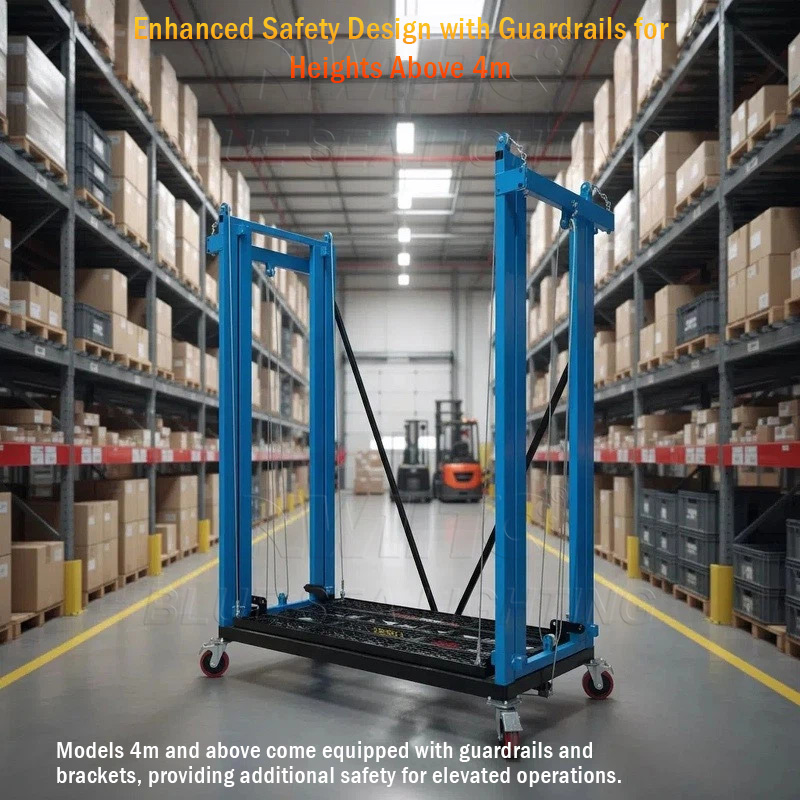

7.Enhanced Safety Design for Heights Above 4m

Guardrails and brackets appear installed on models 4m and above, providing extra protection during elevated operations.

The strengthened frame ensures stability even when working at maximum height.

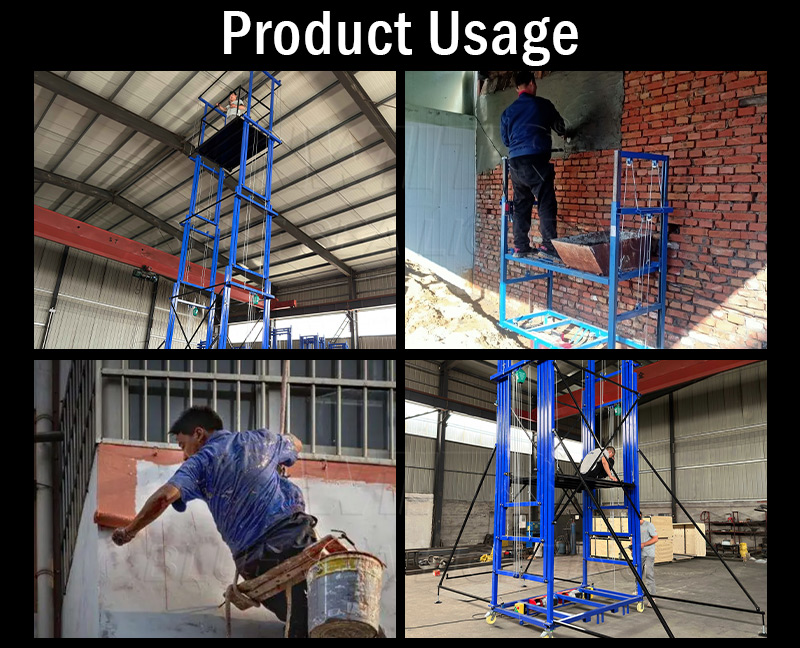

Product Usage

Used for high-altitude construction,wall plastering,exterior painting, and indoor equipment maintenance, providing stable lifting support for various building and renovation tasks.
