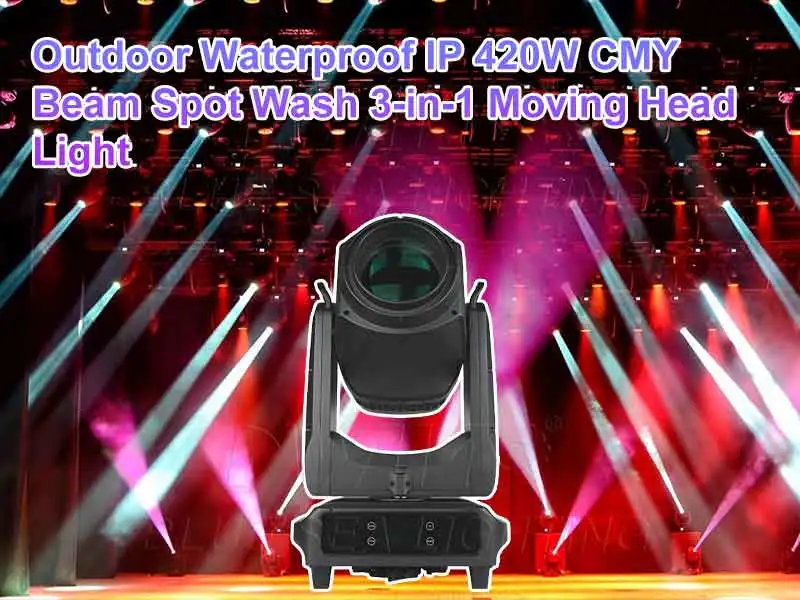

Product Overview – Professional Outdoor 3-in-1 Moving Head Light

Designed for demanding stage environments, this Outdoor Waterproof IP 420W CMY Beam Spot Wash 3-in-1 Moving Head Light delivers high brightness, versatile effects, and reliable outdoor performance.

Combining beam, spot, and wash functions in one fixture, it provides dynamic lighting solutions for concerts, events, and large-scale productions with exceptional flexibility and impact.

Outdoor Waterproof IP 420W CMY Beam Spot Wash 3-in-1 Moving Head Light Application Scenarios

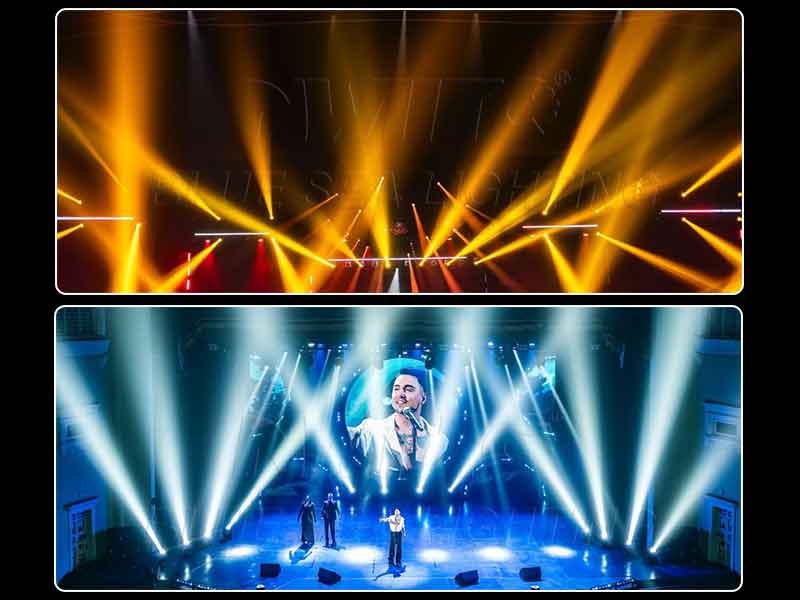

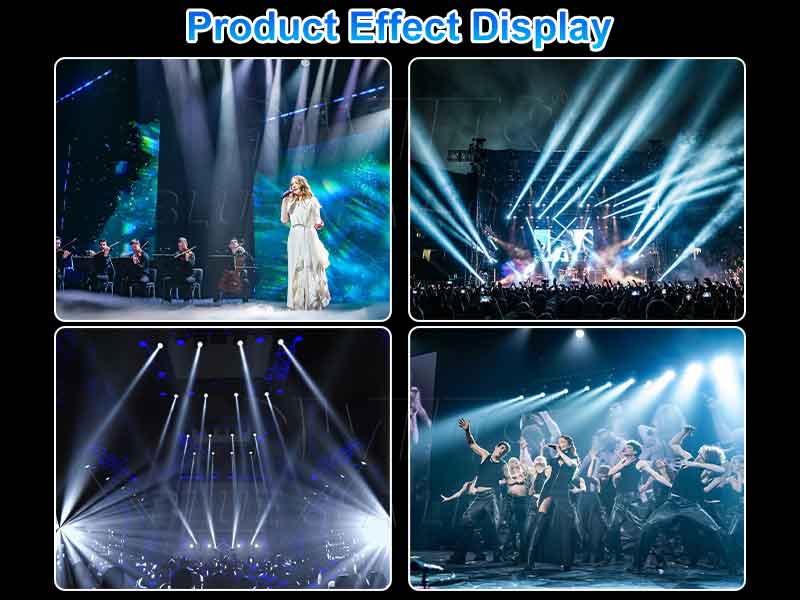

Bluesea Lighting's Outdoor Waterproof IP 420W CMY Beam Spot Wash 3-in-1 Moving Head Light is ideal for: large-scale concerts, outdoor festivals, touring productions, architectural lighting projects, and high-end stage performances, delivering powerful brightness, long-distance beam effects, and reliable operation in harsh environments.

1. Light Source & Brightness

Main Light Source: PHILIPS MSD Silver 420W/2LL
Power Consumption: 600W
Input Voltage: AC100V-240V 50/60HZ
Light Source Lifespan: Approx. 3,500 hours
Diameter of Frontal Lens: 140mm
CCT:7800K
CRI:>70

2. Optics & Effects

Beam Angle: Adjustable 2°–31°
Color System: Linear CMY color mixing + Linear CTO (3200K–6700K)
Color Wheel 1: 6 colors
Color Wheel 2: 6 colors
Static Gobo Wheel: 14 gobos
Rotating Gobo Wheel: 7 interchangeable gobos
Prism:2 prisms, independent rotation, overlapping effect
Frost Filter: 1 frost filter
Homogenizer:1 homogenizer lens
Dimming:0–100% smooth dimming
Strobe:1–20 times/second, adjustable speed

3. Control & Modes

Control Mode: DMX512 / Master-Slave / Auto Run / RDM
Channel Modes: 28CH
Data Connection: DMX 3-pin & 5-pin input/output
Display:LCD display with 4 touch buttons

4. Build & Protection

Pan Movement: 540° (16-bit)
Tilt Movement: 270° (16-bit)
IP Rating: IP66 Waterproof
Cooling System: Mute fan with variable speed
Housing Material: Magnesium alloy
Power Connection: Waterproof power in/out
Operating Temperature: -10℃ to 40℃
Product Dimensions: 709 × 386 × 290 mm
Packing Dimensions: 790 × 405 × 485 mm
Net Weight: 27 kg
Gross Weight: 30 kg

Outdoor Waterproof IP 420W CMY Beam Spot Wash 3-in-1 Moving Head Light Benefits

Light Source & Application – Powerful Output for Large Events

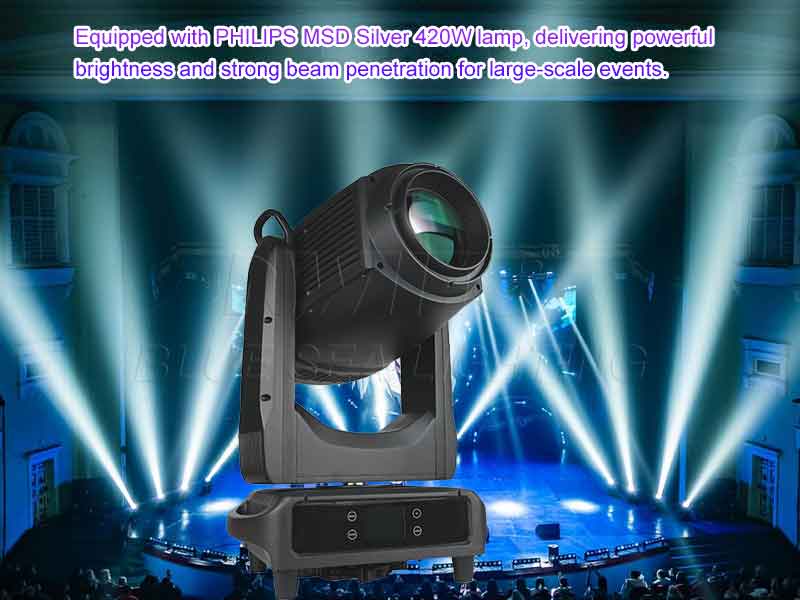

Equipped with a PHILIPS MSD Silver 420W lamp, the fixture produces intense brightness and strong beam penetration, making it highly effective for large venues and outdoor stages.

The powerful output enhances visibility and impact, ensuring the lighting stands out even in wide, open environments and high-energy live events.

Beam Performance – Flexible and Precise Lighting Control

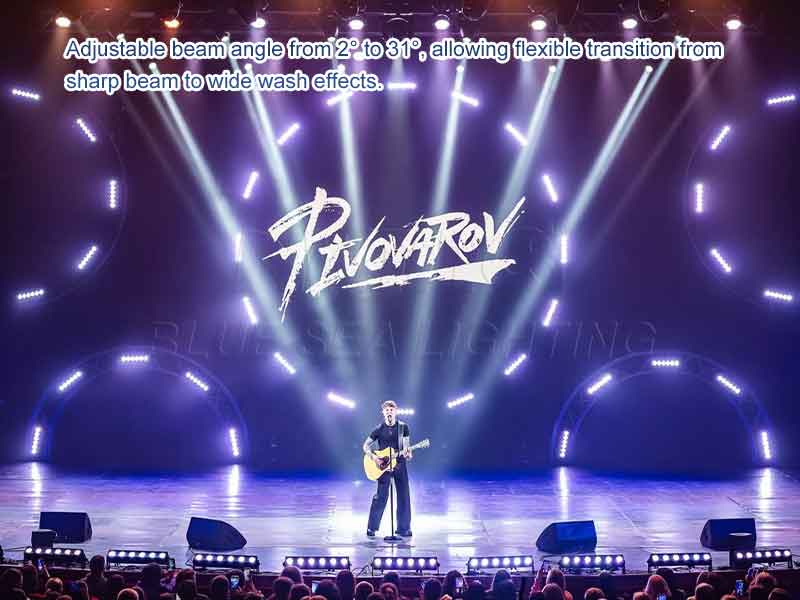

With an adjustable beam angle from 2° to 31°, the fixture allows smooth transitions from sharp, concentrated beams to wide wash effects.

This flexibility enables lighting designers to create layered visuals, sharp aerial effects, and immersive stage atmospheres, making it ideal for both spotlighting performers and filling large spaces with vibrant light.

Waterproof Design – Reliable in Outdoor Conditions

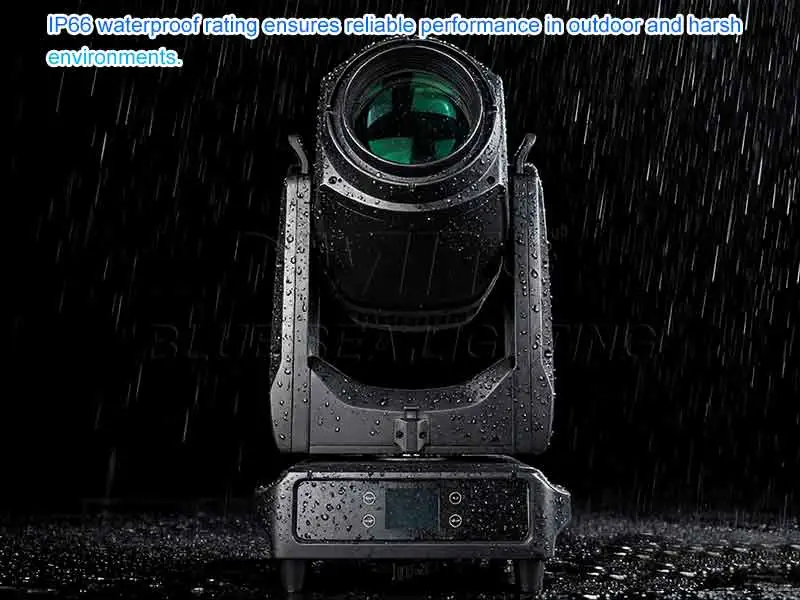

Built with an IP66 waterproof rating, the unit ensures stable and continuous operation even in rain and harsh environments.

The robust housing protects internal components effectively, making it a dependable choice for outdoor concerts, festivals, and long-duration installationswhere weather resistance is critical.

Movement & Cooling – Precision and Stability

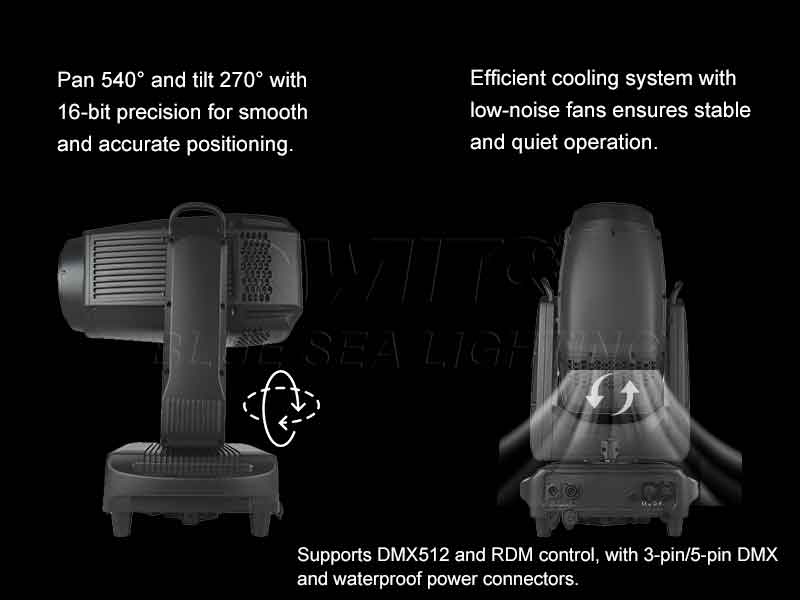

Featuring540° pan and 270° tilt with 16-bit precision, the moving head delivers smooth, accurate positioning for complex lighting movements.

Theefficient cooling system with low-noise fans ensures stable performance during extended use, maintaining optimal temperature while keeping operation quiet for professional stage applications.

Why Choose Bluesea Lighting's Outdoor Waterproof IP 420W CMY Beam Spot Wash 3-in-1 Moving Head Light?

High-End Stage Lighting Quality — Without the High-End Price

With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, andcompetitive pricingto deliveroutstanding valuefor lighting professionals worldwide.
