Product Overview – High-Power Outdoor LED City Color Projector

Engineered for large-scale outdoor lighting applications, this 24×40W RGBW 4-in-1 LED Moving Head City Color Projector delivers powerful output, wide coverage, and dynamic lighting effects.

With advanced pixel control and dual-layer LED design, it creates rich color mixing and visually impactful lighting scenesfor architectural lighting, events, and landscape illumination.

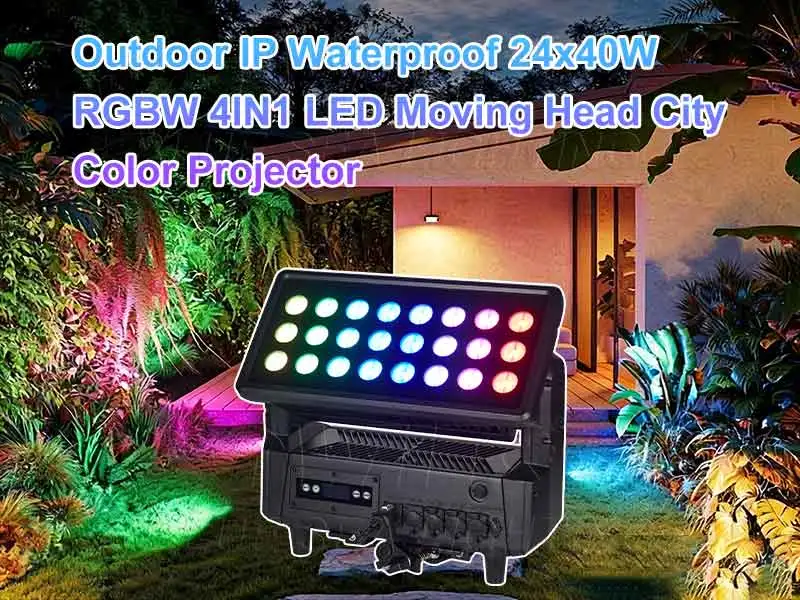

Outdoor IP Waterproof 24x40W RGBW 4IN1 LED Moving Head City Color Projector Application Scenarios

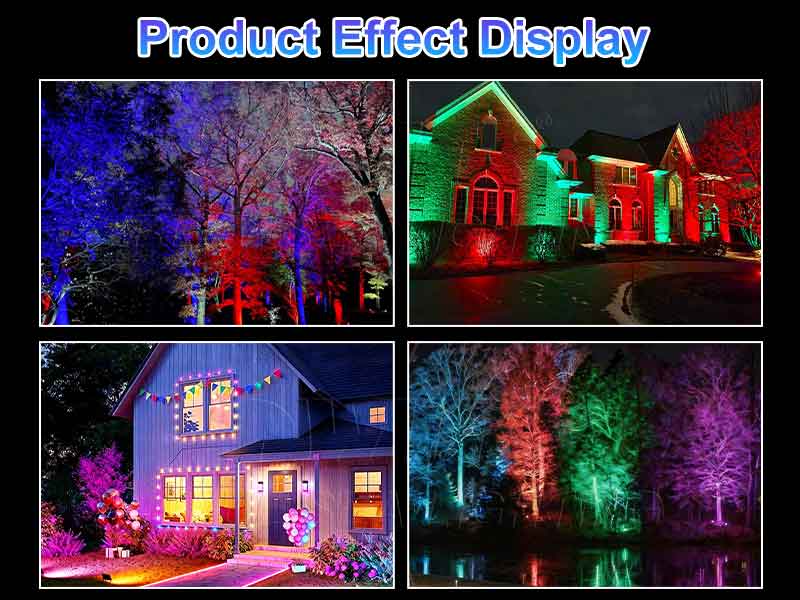

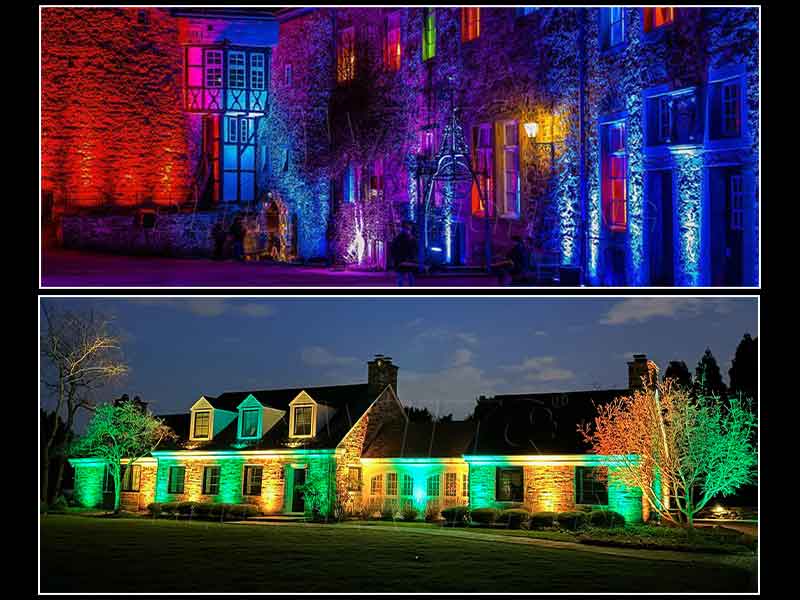

Bluesea Lighting's Outdoor IP Waterproof 24x40W RGBW 4IN1 LED Moving Head City Color Projector is ideal for: architectural lighting, landscape illumination, city landmarks, bridges, parks, building facades, and outdoor installations, delivering powerful color wash, precise beam control, and reliable performance in all weather conditions.

1. Light Source & Brightness

Light Source: 24×40W RGBW 4-in-1 LEDs + 24×6W RGBW 4-in-1 Auxiliary LEDs
Power Consumption: 1000W
Input Voltage: AC 100–240V, 50/60Hz
CRI:Ra≥80
Color Temperature (CTO): 2800K–8000K adjustable
Light Source Lifespan: Approx. 50,000 hours
Pixel Control: Main LED & Auxiliary LED individually controllable

2. Optics & Effects

Beam Angle (Main LED): 12°
Main LED with E-frost: 48°
Auxiliary LED: 110°
Auxiliary LED with E-frost: 106°
Combined Beam Angle: 12°
Combined with E-frost: 50°
Dimming:0–100% linear dimming
Strobe:0.5–25 times/second with random strobe effect

3. Control & Modes

DMX Channel Modes: 29/30/72/96/120/144/192/222/240/288/314CH
Protocol:Art-Net / DMX512 / RDM
Display:Illuminated graphic LCD display
RDM:Bidirectional communication

4. Build & Protection

IP Rating: IP65 Waterproof
Cooling System: Temperature-controlled with overheating protection
Housing Material: Die-cast aluminum body
DMX Connection: Seetronic 3-pin XLR waterproof in/out
Power Connection: Seetronic waterproof PowerCON in/out
Art-Net:Seetronic waterproof Art-Net in/out
Product Dimensions: 404 × 202 × 350 mm
Packing Size: 490 × 240 × 420 mm
Net Weight: 15 kg
Gross Weight: 16.5 kg

Outdoor IP Waterproof 24x40W RGBW 4IN1 LED Moving Head City Color Projector Benefits

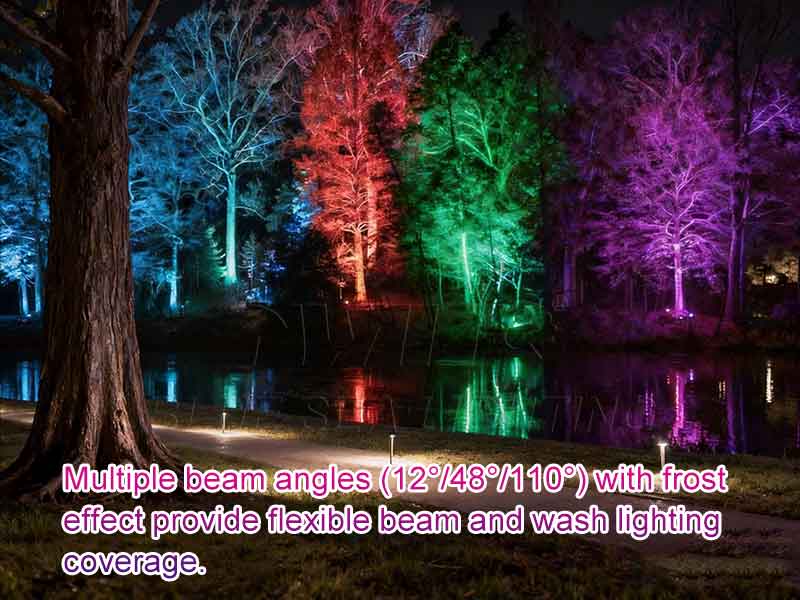

Beam & Coverage – Flexible Angles with Frost Effects

Multiple beam angles including 12°, 48°, and 110°, combined with frost effects, provide flexible beam shaping from narrow projection to wide wash coverage.

This versatility allows smooth adaptation to different lighting needs, whether highlighting specific areas or creating broad, uniform illumination across large outdoor spaces.

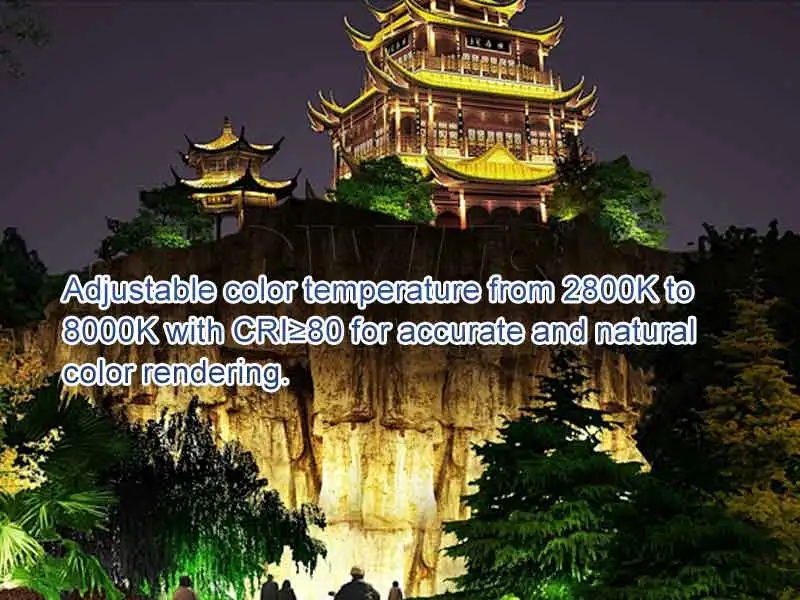

Color Performance – Accurate and Natural Rendering

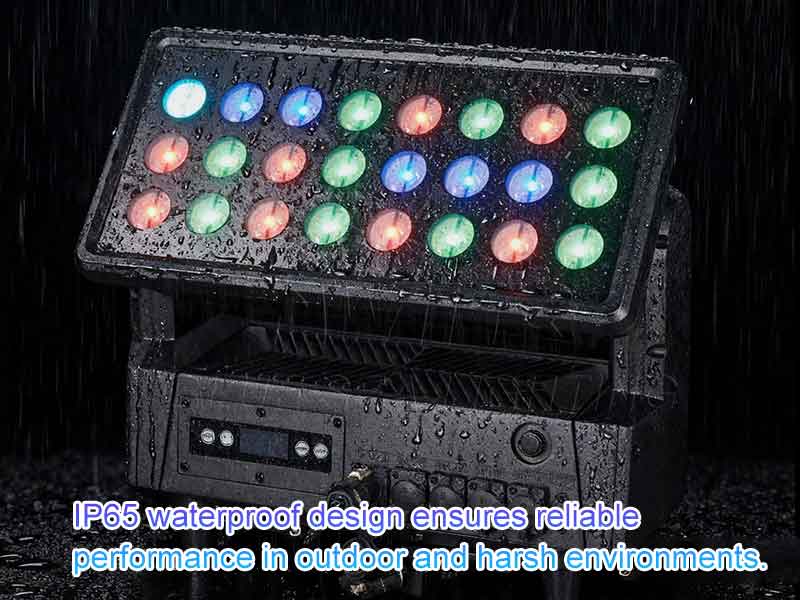

Waterproof Design – Reliable Outdoor Operation

Built with an IP65 waterproof rating, the fixture guarantees stable and reliable performance in rain and harsh outdoor environments.

The durable housing protects internal components, ensuring continuous operation for outdoor events, permanent installations, and demanding weather conditions.

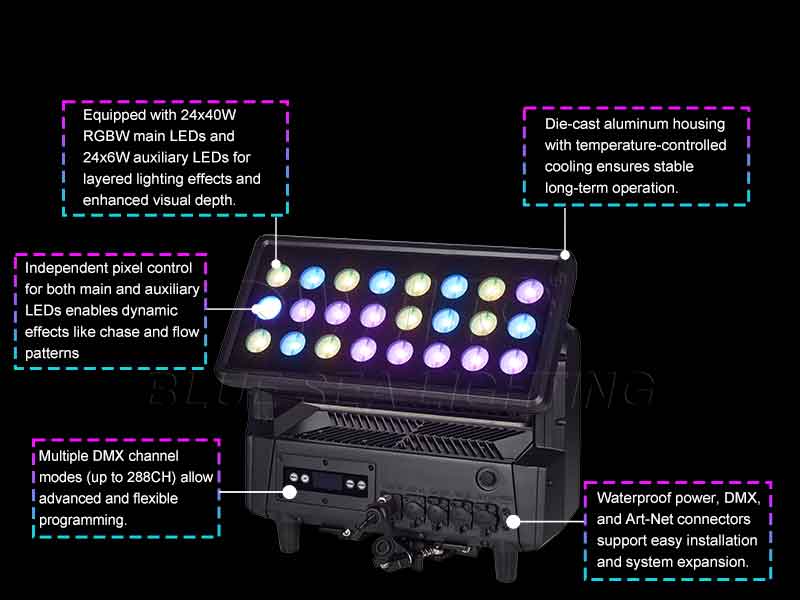

Structure & Control – Advanced Design with Pixel Effects

Equipped with 24×40W RGBW main LEDs and 24×6W auxiliary LEDs, the dual-layer system delivers enhanced depth and layered lighting effects.

Independent pixel control enables dynamic patterns such as chase and flow effects, while multiple DMX channel modes provideflexible programming and precise control. The die-cast aluminum housing and temperature-controlled cooling system ensure long-term stability and professional performance.

Why Choose Bluesea Lighting's Outdoor IP Waterproof 24x40W RGBW 4IN1 LED Moving Head City Color Projector?

High-End Stage Lighting Quality — Without the High-End Price

With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, andcompetitive pricingto deliveroutstanding valuefor lighting professionals worldwide.
