Overall Product Introduction

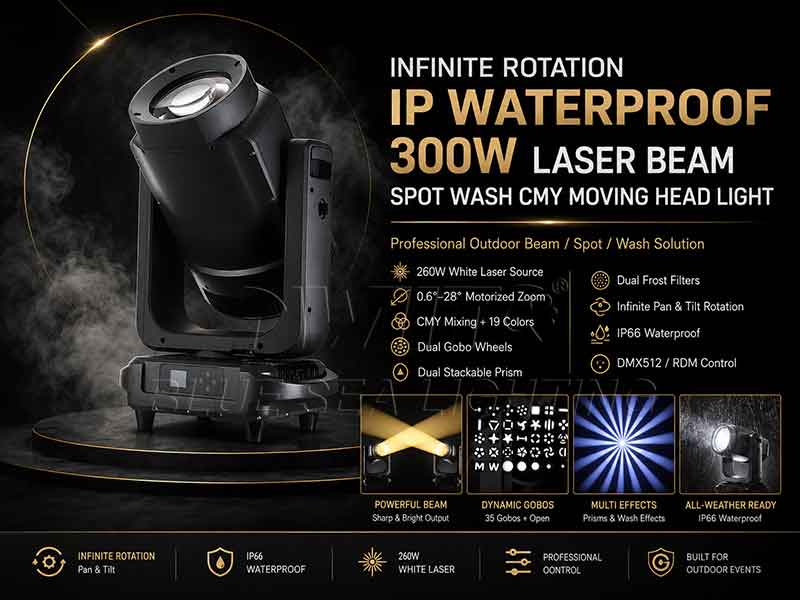

This300W IP66 Waterproof Laser Beam Spot Wash CMY Moving Head Lightcombinesbeam, spot, and wash effects in one fixture.

Featuring a 260W white laser source,0.6°-28° motorized zoom,CMY color mixing, dual gobo wheels, and dual prism effects, it is ideal for concerts, festivals, touring productions, and outdoor events.

Infinite Rotation IP Waterproof 300W Laser Beam Spot Wash CMY Moving Head Light Application Scenarios

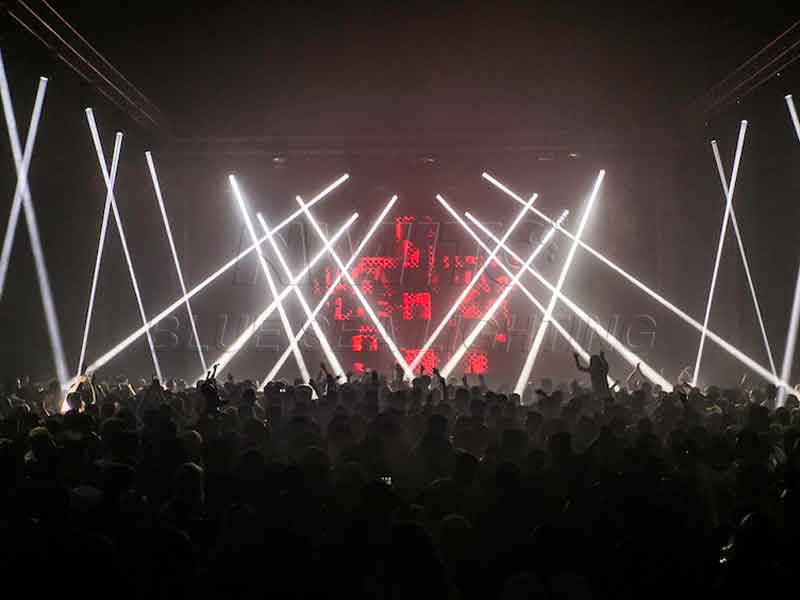

Bluesea Lighting's Infinite Rotation IP Waterproof 300W Laser Beam Spot Wash CMY Moving Head Light is ideal for:outdoor concerts, music festivals, touring productions, live events, rental companies, TV studios, theaters, architectural lighting, and permanent outdoor installations.

1. Power & Light Source

Input Voltage: AC100-240V, 50/60Hz
Power Consumption: 350W
Power Factor: PF 0.937, Max Input Current: 3.5A
Power Connection: Waterproof Power IN/OUT
DMX Interface: XLR-3 / XLR-5
Light Source: 260W Laser Module
Color Temperature: 6500K
Light Source Lifetime: 12,000 Hours

2. Optical & Effect System

Beam Angle: 0.6°-28° Motorized Zoom
Prism:Dual 2×4 Prisms, 8 Prism Effects, Bi-directional Rotation & Positioning
Frost:Light Frost + Heavy Frost Filters
Dimming:0-100% Linear Dimming
Strobe:1-25Hz High-Speed Electronic Strobe
CMY:Linear CMY Color Mixing
Color Wheel: 19 Colors + White, Rainbow Effect with Bi-directional Rotation & Positioning

3. Gobo & Control

Rotating Gobo Wheel: 12 Interchangeable Gobos + Open, Shake & Positioning
Static Gobo Wheel: 35 Gobos + Open, Shake & Positioning
Display:LCD Display
Operation:4 Touch Buttons
Control Protocols: DMX512 / RDM
DMX Channels: 22CH / 27CH

4. Movement & Construction

Pan:Infinite Rotation (16-bit), Bi-directional Continuous Rotation
Tilt:Infinite Rotation (16-bit), Bi-directional Continuous Rotation
Auto Position Correction: Pan/Tilt Automatic Reset
Protection Rating: IP66
Operating Temperature: -10°C to 40°C
Max Surface Temperature: 75°C
Fixture Size: 409 × 280 × 708 mm
Net Weight: 31 kg

Infinite Rotation IP Waterproof 300W Laser Beam Spot Wash CMY Moving Head Light Benefits

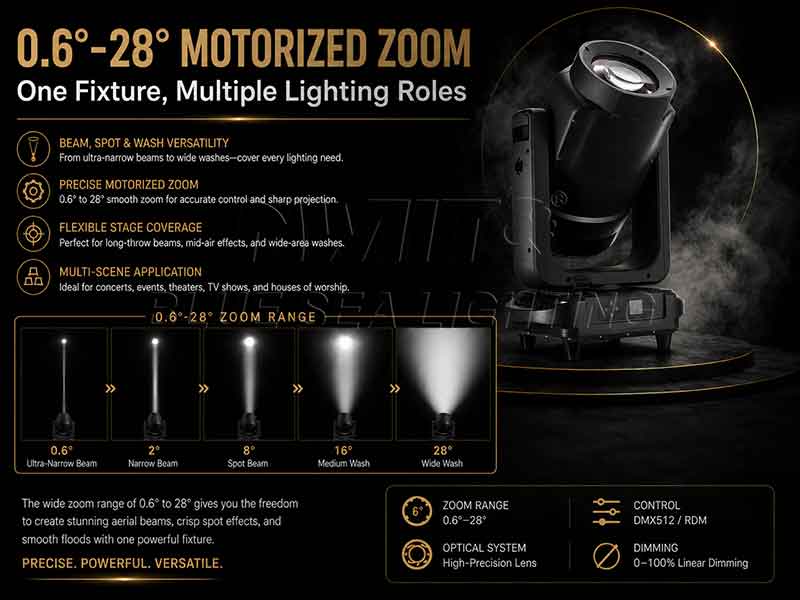

0.6°-28° Motorized Zoom

The0.6°-28° motorized zoom provides exceptional versatility, allowing seamless transitions from ultra-narrow aerial beams to wide wash coverage.

A single fixture can create sharp beam effects, crisp spot projections, and smooth wash lighting, making it suitable for stages of all sizes.

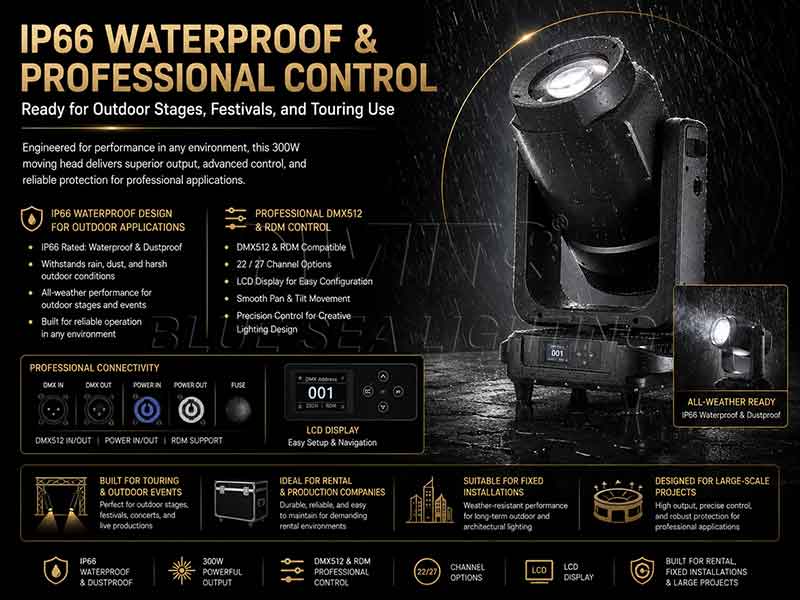

IP66 Waterproof Design & Professional Control

Designed with an IP66 waterproof housing, this fixture withstands rain, dust, and demanding outdoor environments.

It supports DMX512, RDM, Power IN/OUT, and XLR 3/5-pin connections, ensuring reliable control and convenient daisy-chain installation for touring, rental, and fixed installations.

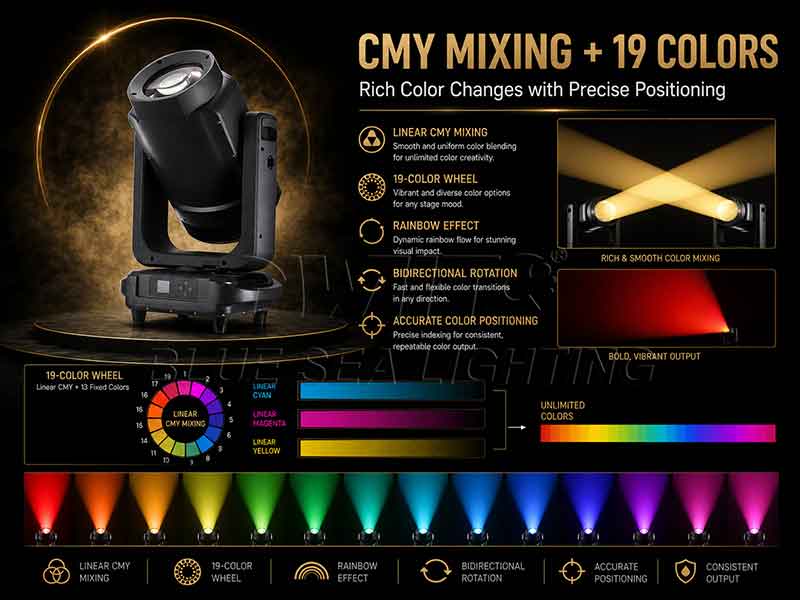

CMY Mixing & 19-Color System

Featuringlinear CMY color mixing and a 19-color wheel plus white, the fixture produces smooth color transitions, vivid saturated colors, and dynamic rainbow effects.

Bidirectional rotation and precise positioning provide consistent color output for professional stage productions.

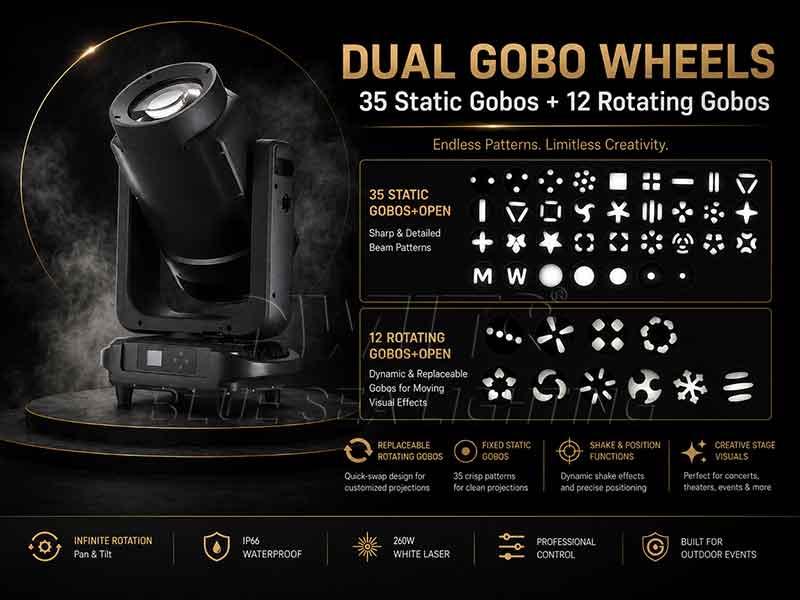

Dual Gobo Wheels & Creative Effects

The lighting system includes 35 static gobosand12 interchangeable rotating gobos, combined with dual 2×4 rotating prisms for layered aerial effects.

Shake, positioning, and bidirectional rotation functions allow designers to create rich textures, dynamic projections, and immersive visual performances.

Why Choose Bluesea Lighting's Infinite Rotation IP Waterproof 300W Laser Beam Spot Wash CMY Moving Head Light?

High-End Stage Lighting Quality — Without the High-End Price

With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, and competitive pricing to deliver outstanding value for lighting professionals worldwide.

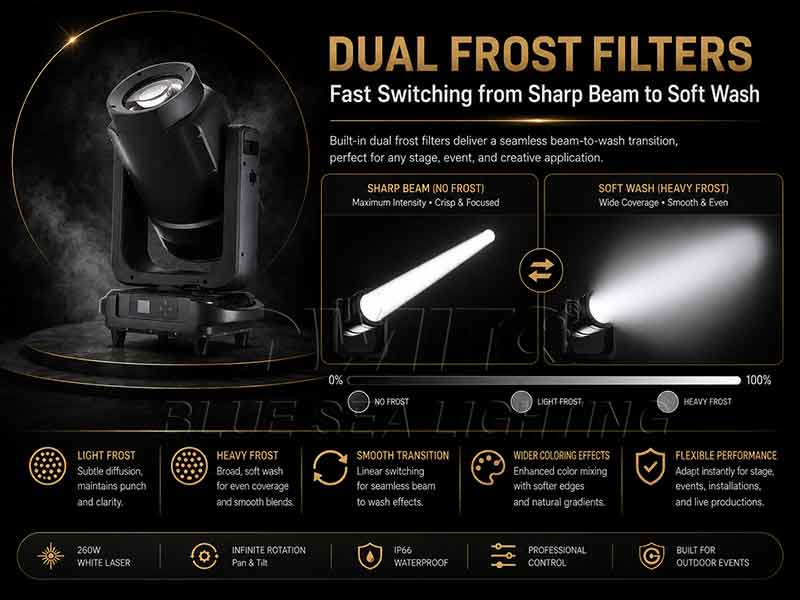

Dual Frost Filters for Beam & Wash

Built-inlight frostandheavy frost filters enable fast switching between intense beam effects and soft, even wash lighting.

Together with 0-100% linear dimmingand1-25Hz electronic strobe, the fixture delivers smooth transitions and flexible lighting solutions for concerts, theatrical productions, architectural lighting, and live events.
