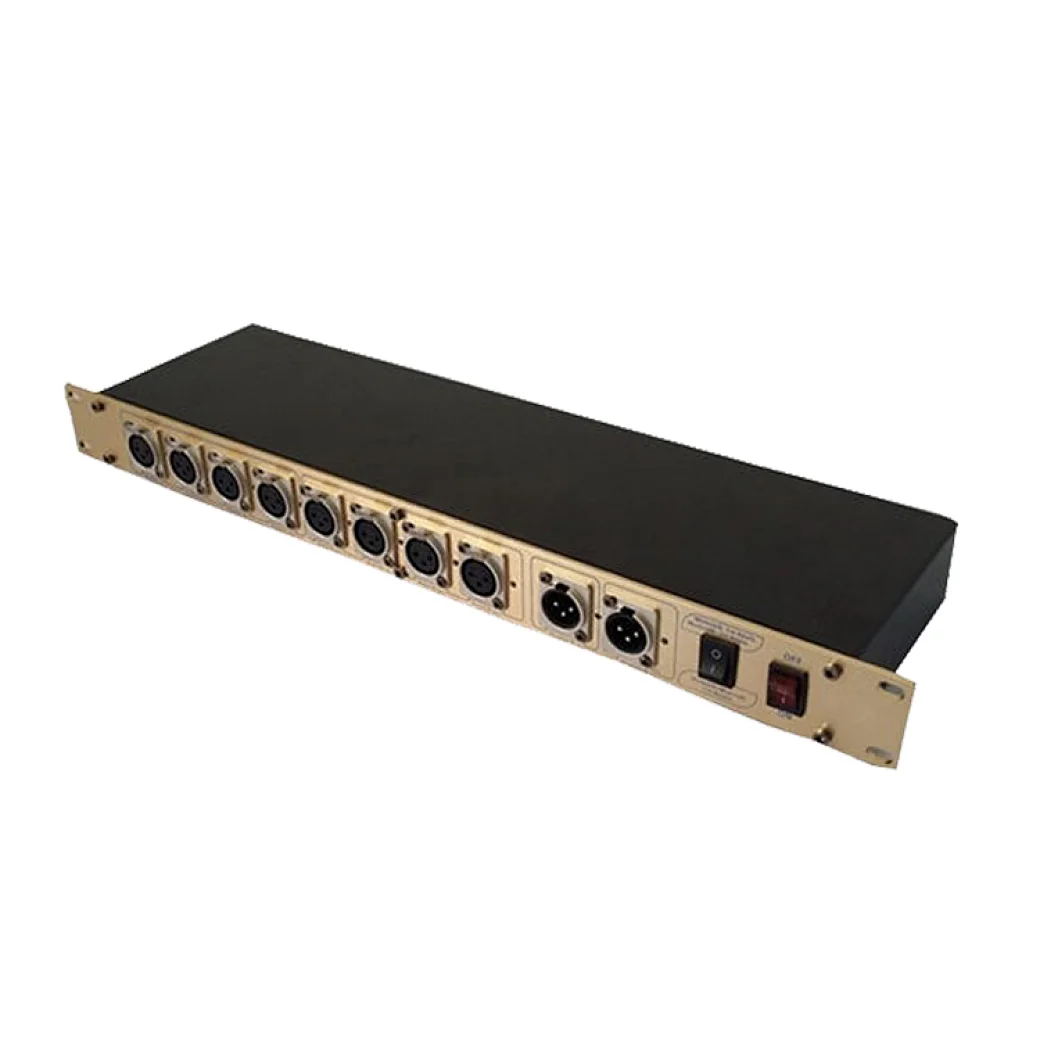

8 Channels Module DMX Splitter In Cylinder
8 Channels Module DMX Splitter In Cylinder

8 Channels Module DMX Splitter In Cylinder

Model NO.
BMDS8
Quantity:

8 Channels Module DMX Splitter In Cylinder
Model No.: BMDS8

Technical parameter:
Input Voltage: AC100-240Vac 50/60HZ
Input and output Agreement: International DMX512 Agreement
transmission capacity: Supporting 512channels’s real time transmission
Signal output: single group 1 way input ,8 ways output or double groups 1 way input, 4 ways output ;optical isolation ; separately output
The canon of Signal connection: Input XLP-3-M,output XLR-3-F
Political isolation of the input to the output: >AC300V
size: 484*45*140mm “19”1U
Weight: 2.38kg
