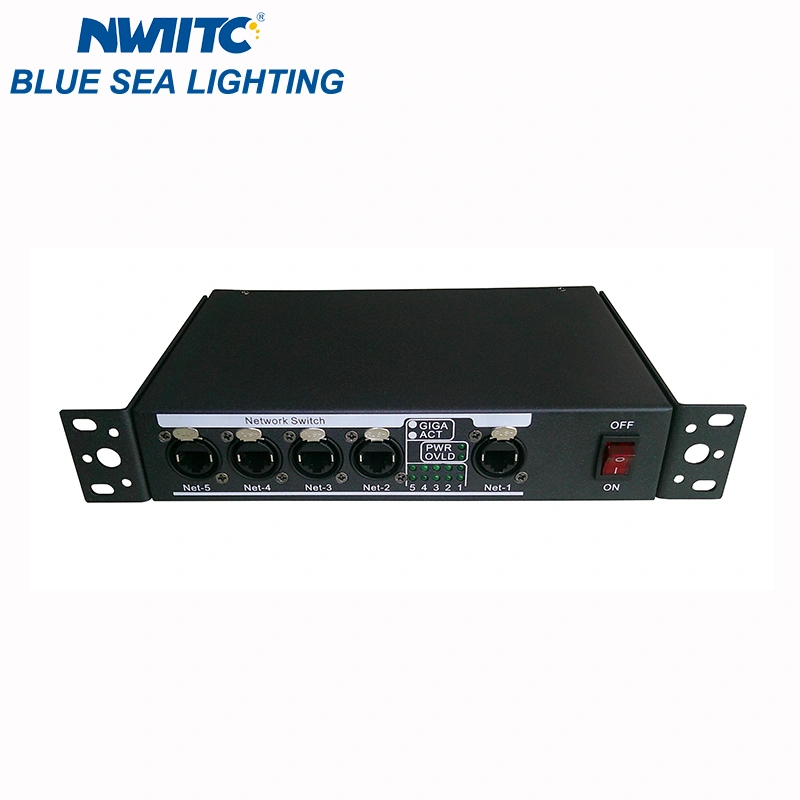

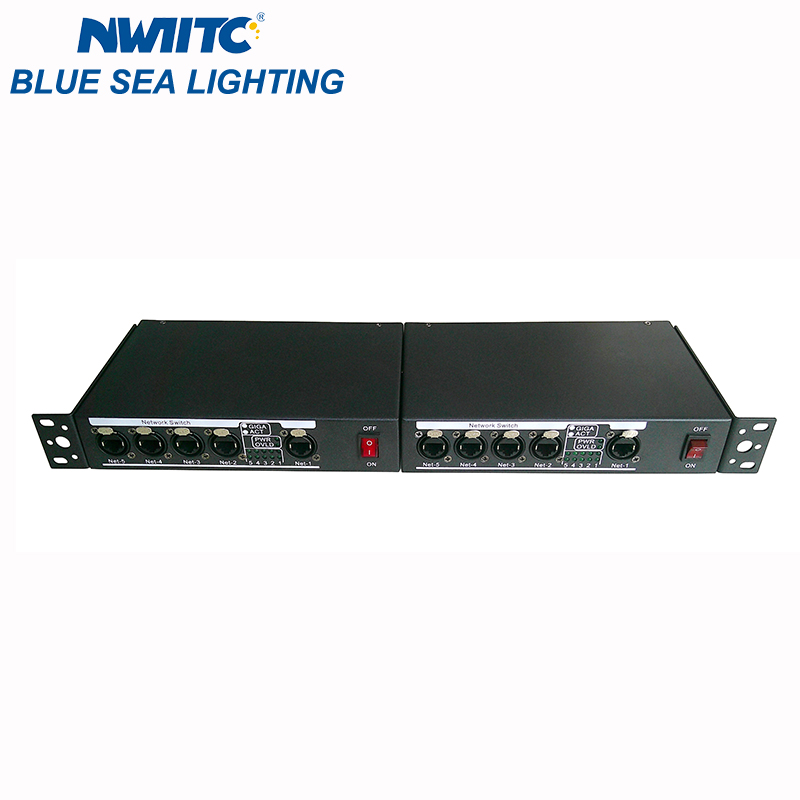

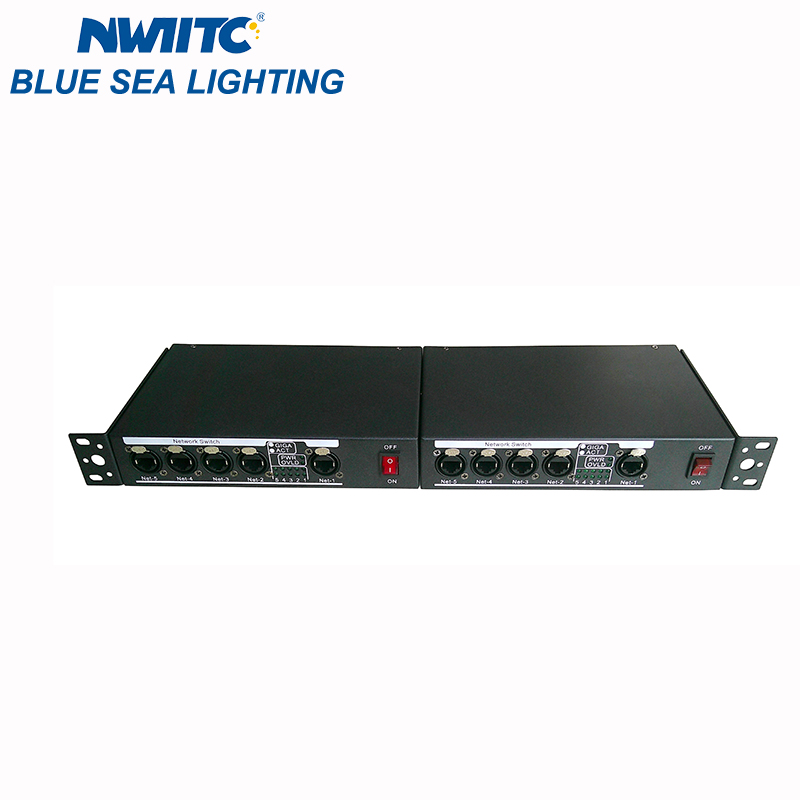

4CHs Gigabit POE Switch | Enterprise-Grade Networking Solution

Discover the powerful and versatile 4CHs Gigabit POE Switch, designed for small to medium-sized businesses, surveillance systems, and other enterprise applications. With high-speed connectivity, reliable POE functionality, and robust build quality, this switch ensures seamless and efficient network performance.

Product Specifications:

• Product Type: POE Switch, Gigabit Ethernet Switch, Enterprise Switch
• Application Level: Layer Two
• Transmission Rate:10/100/1000Mbps
• Switch Mode:Store-and-Forward
• Backplane Bandwidth:10Gbps
• MAC Address Table:2K

Port Parameters:

• Port Organization:Non-modular
• Number of Ports: 5 (Four support POE power supply as per IEEE 802.3af standard)
• Single-Port POE Power Supply: Up to 15W
• Interface Medium:
  • 10BASE-T: Cat 3, 4, 5 UTP cables
  • 100BASE-TX: Cat 5 and above UTP cables
  • 1000BASE-T: Cat 5 or higher UTP/STP cables
• Transmission Mode: Full duplex/half duplex adaptive

Functional Characteristics:

• Standards Supported: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af
• Status Indicators:
  • 1 Power Indicator
  • 1 Power Overload Indicator
  • 5 Link/Act Indicators
  • 5 Gigabit Indicators

Additional Details:

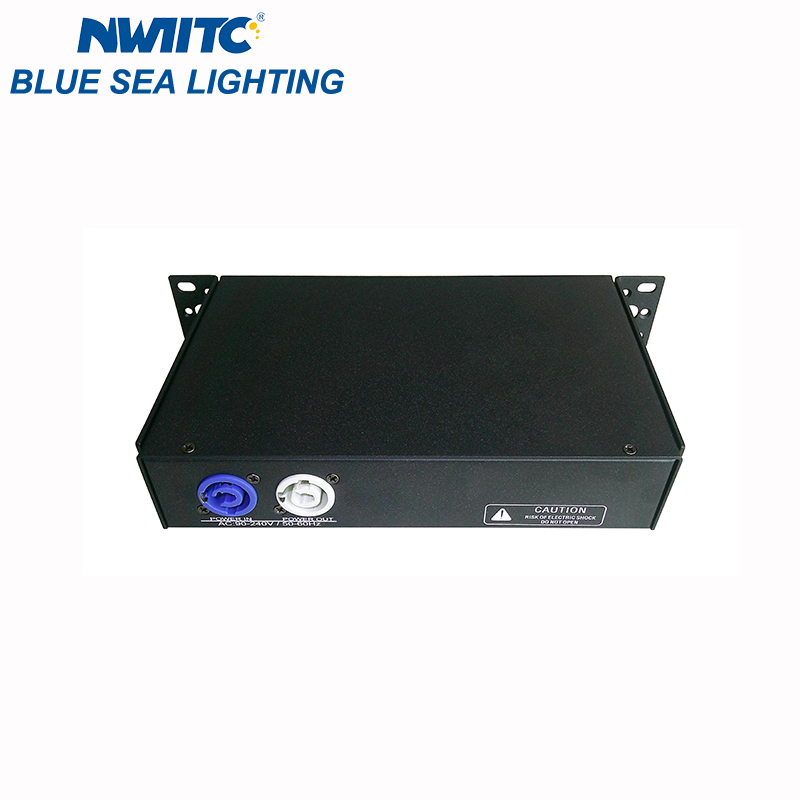

• Power Supply: AC 110V-220V, 50-60Hz
• Product Dimensions:216×142×45mm
• Product Weight:1.4KG

•
