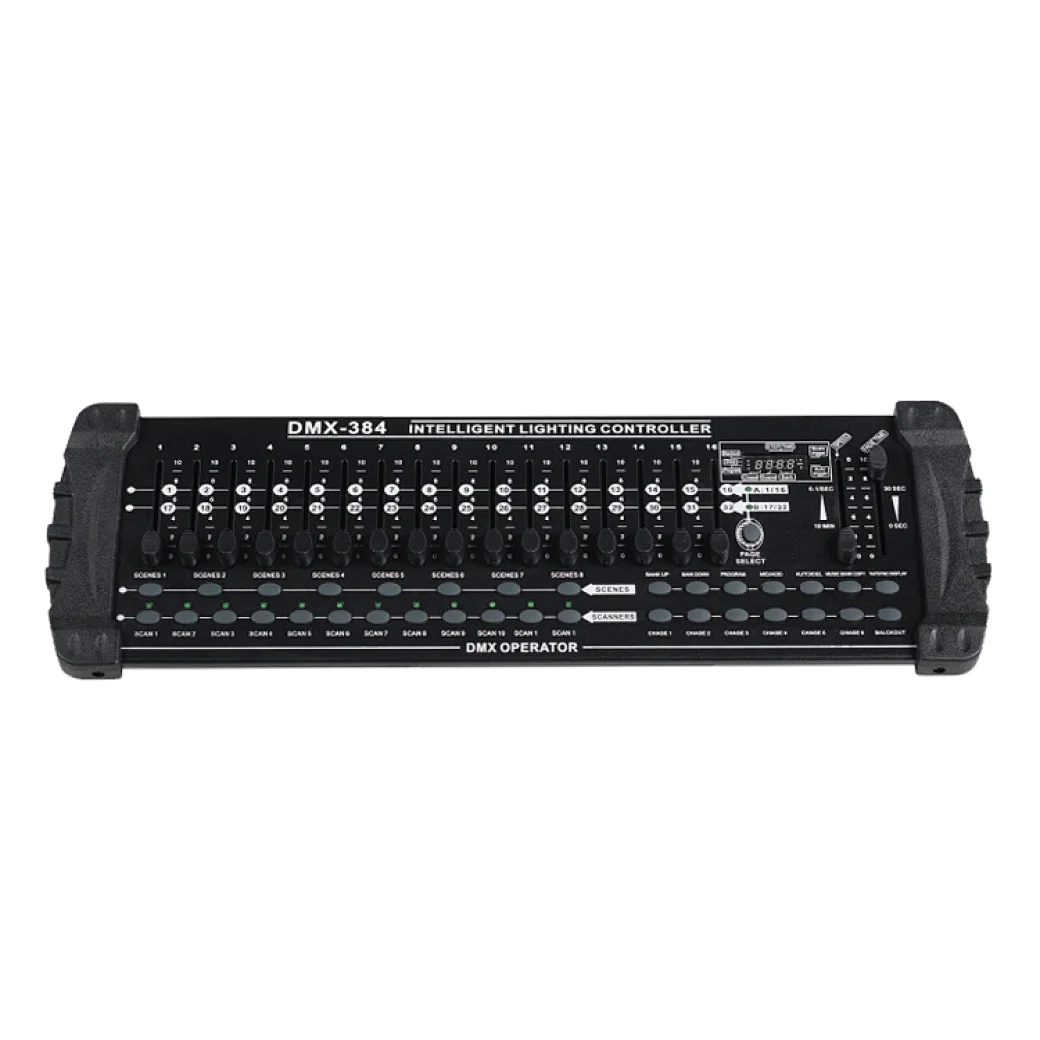

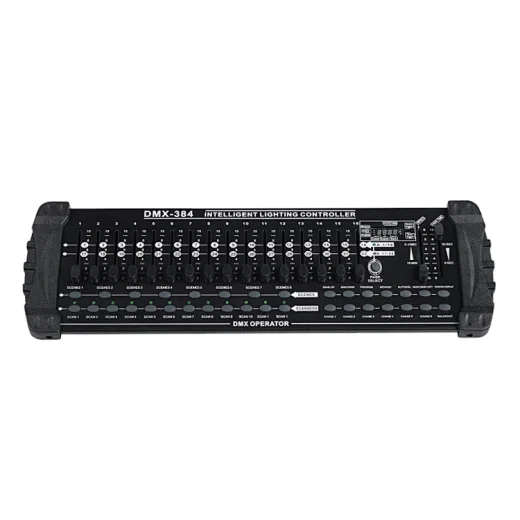

384CH DMX Lighting Controller
384CH DMX Lighting Controller

384CH DMX Lighting Controller

Model NO.
BC384
Quantity:

384CH DMX512 Lighting Controller
Model No.: BC384

Technical parameters:
Input voltage: AC100-240V 50/60Hz
DMX512/1990 signal output
384 channels, can control 24 16-channel DMX lamps
There are 30 BANKs, each BANK has 8 programmable SCENES, 16 adjustable positioners to
adjust the output size
Re-power on to run the last Chase or Bank built-in MIC head, providing sound trigger
In the automatic trigger state, determine the automatic trigger time through the TAP SYNC
button or the SPEED potentiometer
On the MIDI interface, you can use MIDI signals to control the 4-digit digital display at
any time
BLACKOUT function can be controlled manually or MIDI remotely
CHASES programming and CHASES running functions can be controlled manually or by MIDI
remote control
Output delay function, adjust the delay time with FADE TIME potentiometer
DMX signal output connector: XLR-D3F LED bulb interface
Power input: DC9V 1000mA
