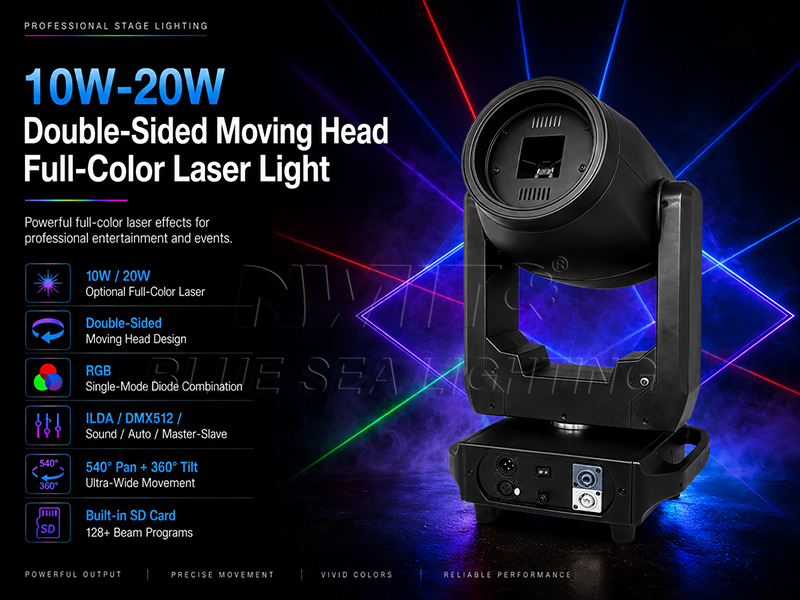

10W-20W Double-Sided Moving Head Full-Color Laser Light
BLLM-RGB10D
⭐ Built with imported laser chips and an intelligent temperature control system, ensuring stable operation from -30℃ to 50℃ with long lifespan and high reliability.

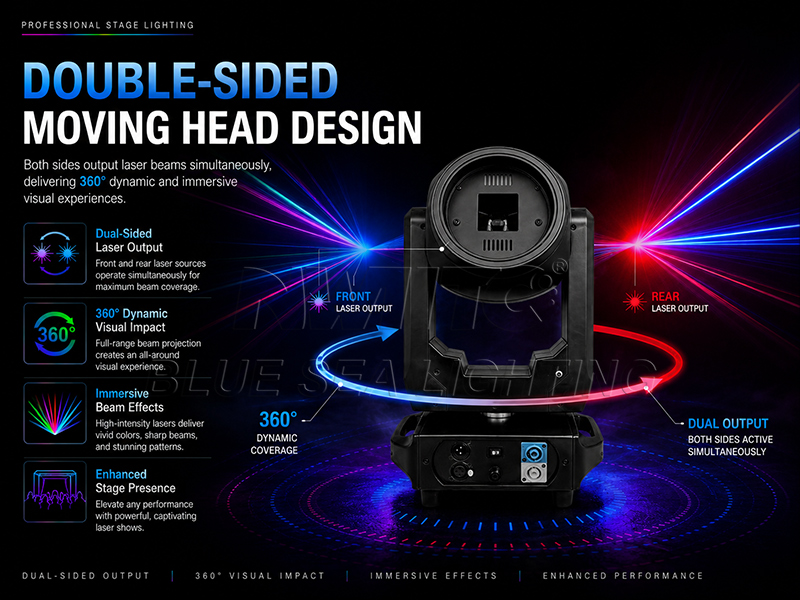

⭐ Double-sided moving head design with optional 10W-20W power and RGB laser module, offering rich beam effects including various graphics and text animations.
⭐ Equipped with a professional AT25K galvanometer system with ±30° scan angle (60° total) and <1.6mrad laser divergence, delivering sharp and precise beams.
⭐ Multi-layer safety protection features including power-off protection, laser delay start, and scan failure protection, plus a dustproof, moisture-proof sealed structure for worry-free use.
⭐ Supports multiple control modes like DMX512, ILDA, sound control, and auto-run, with an SD card for independent programming, compatible with mainstream controllers for bars, KTVs, and more.
⭐ Double-sided moving head design with optional 10W-20W power and RGB laser module, offering rich beam effects including various graphics and text animations.
⭐ Equipped with a professional AT25K galvanometer system with ±30° scan angle (60° total) and <1.6mrad laser divergence, delivering sharp and precise beams.
⭐ Multi-layer safety protection features including power-off protection, laser delay start, and scan failure protection, plus a dustproof, moisture-proof sealed structure for worry-free use.
⭐ Supports multiple control modes like DMX512, ILDA, sound control, and auto-run, with an SD card for independent programming, compatible with mainstream controllers for bars, KTVs, and more.
Quantity:
Product Name: 10W-20W Double-Sided Moving Head Full-Color Laser Light
Laser Source: Imported laser chips are used, with high stability and long service life.
Laser Design: Equipped with a power-off protection system, dustproof, moisture-proof, anti-corrosion, rust-proof, and a well-sealed structure. The efficient cooling system covers 50% of the chassis area.
Temperature Control System: Built-in intelligent temperature control system, automatically adjusts temperature and operates stably from -30°C to 50°C.

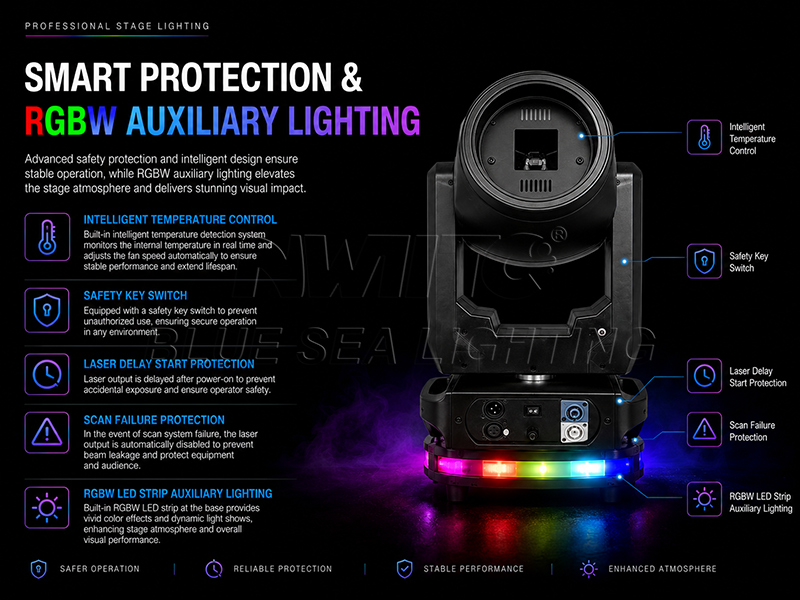

Safety Devices: Stable control system, safety key switch, laser delay start protection, and scan failure protection.
SD Card Function: An SD card is installed on the back of the laser unit, allowing users to edit programs independently. The SD card contains more than 128 BEAM animation programs.
Timer Function: Supports automatic timer on/off operation.

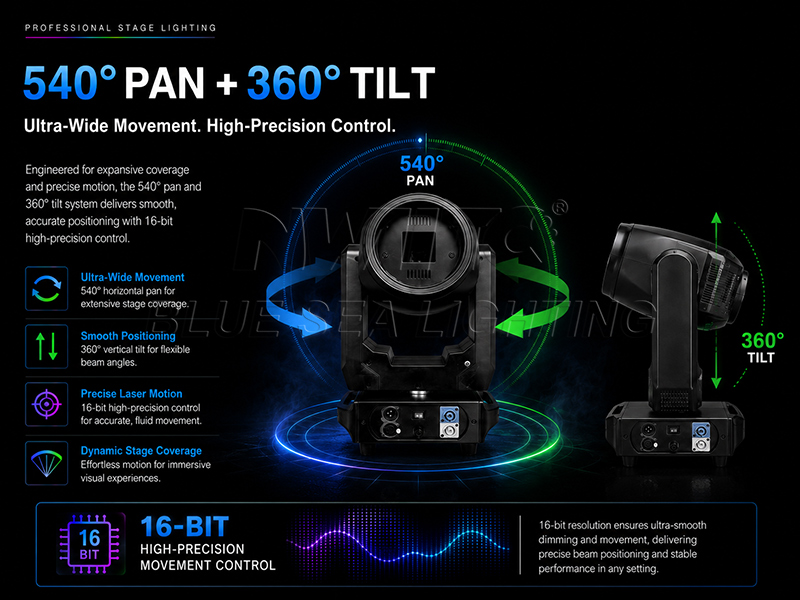

Pan/Tilt: 540° Pan / 360° Tilt, 16-bit.
Display: Color LCD display with Chinese/English language switching and reversible display.

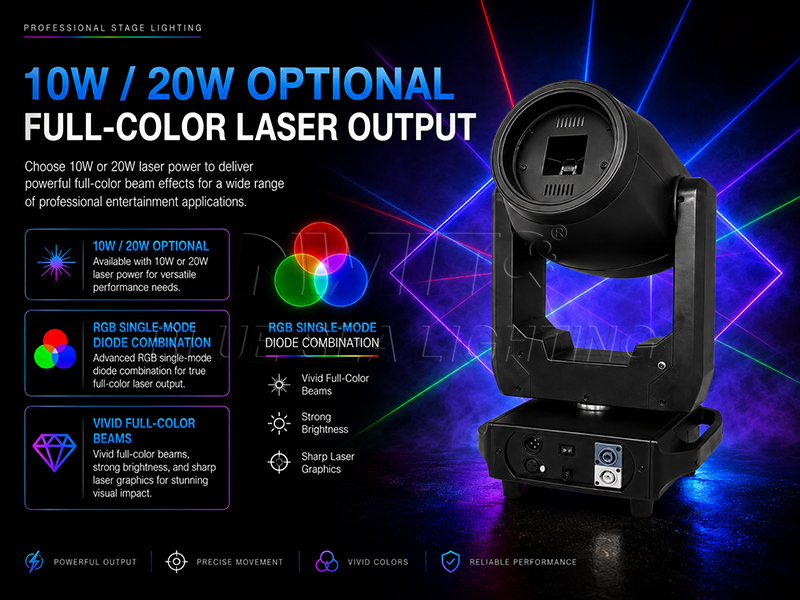

Laser Power: 10W-20W optional.
RGBW LED Strip: RGBW color strip with LED auxiliary lighting.
Input Voltage: AC90-250V, 50/60Hz.
Output Power: ≤150W.
Laser Module: RGB single-mode diode combination.
Laser Divergence: ＜1.6mrad (full angle).
Laser Beam Diameter: ≤6.5mm at the aperture.
Modulation Frequency: ≤100KHz.

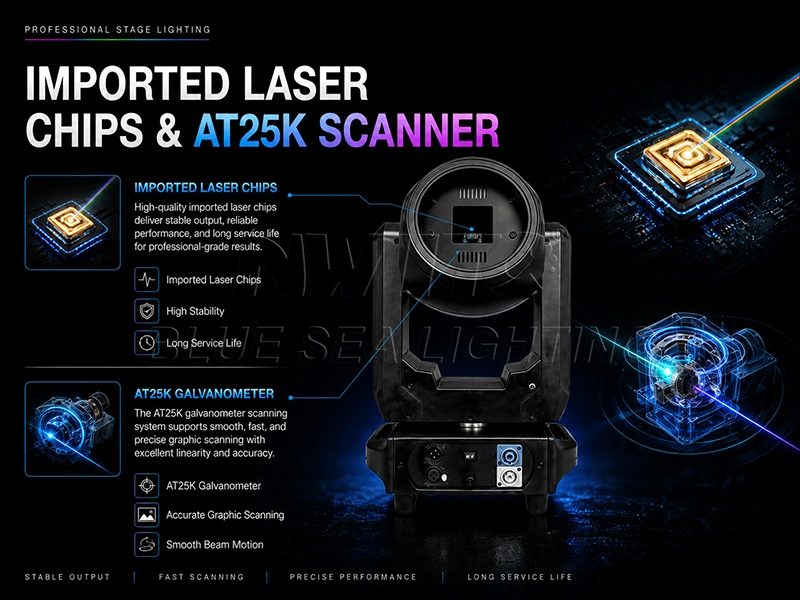

Scanner System: AT25K galvanometer.
Scan Angle: ±30° (60° total).
DMX Channels: 30CH / 52CH optional.

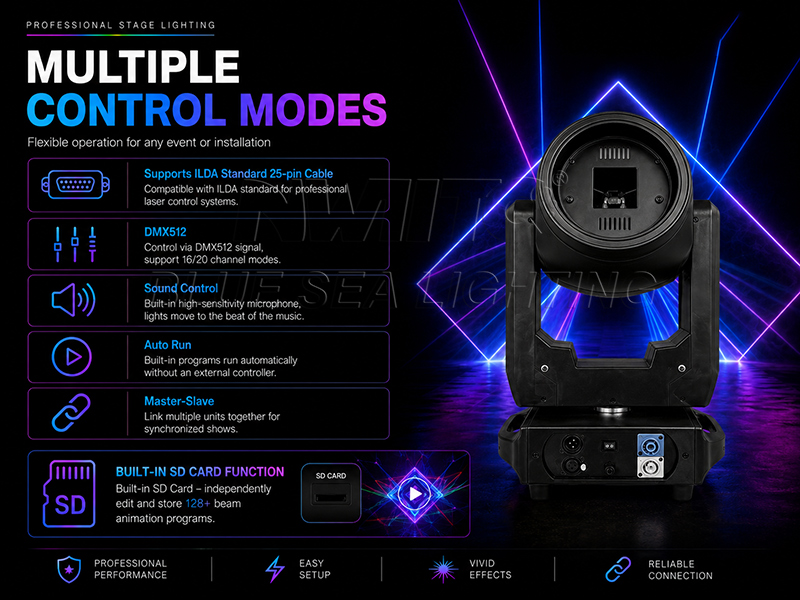

Control Modes: Built-in MCU control system, ILDA standard 25-pin cable, Sound Control, Auto Run, DMX512, Master-Slave, and built-in SD card with rich animation, line, and text effects. Supports various beam effects, complex graphics, and broken-line effects, with hundreds of built-in animation programs. Compatible with Pangolin FB4/FB3 controllers and PC synchronization.
Product Size: L280 × W400 × H520mm (Vertical: L300 × W290 × H610mm).
Packing Size: L455 × W360 × H575mm.
Net Weight: 12kg.
Gross Weight: 13.5kg.

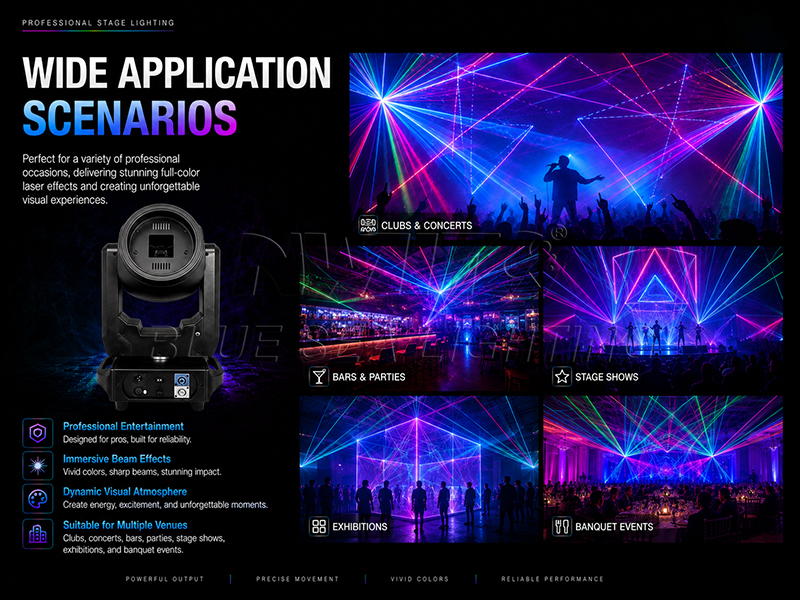

Applications: Bars, KTVs, live music bars, dance halls, hotel banquet halls, entertainment venues, etc.
Laser Source: Imported laser chips are used, with high stability and long service life.
Laser Design: Equipped with a power-off protection system, dustproof, moisture-proof, anti-corrosion, rust-proof, and a well-sealed structure. The efficient cooling system covers 50% of the chassis area.
Temperature Control System: Built-in intelligent temperature control system, automatically adjusts temperature and operates stably from -30°C to 50°C.
Safety Devices: Stable control system, safety key switch, laser delay start protection, and scan failure protection.
SD Card Function: An SD card is installed on the back of the laser unit, allowing users to edit programs independently. The SD card contains more than 128 BEAM animation programs.
Timer Function: Supports automatic timer on/off operation.
Pan/Tilt: 540° Pan / 360° Tilt, 16-bit.
Display: Color LCD display with Chinese/English language switching and reversible display.
Laser Power: 10W-20W optional.
RGBW LED Strip: RGBW color strip with LED auxiliary lighting.
Input Voltage: AC90-250V, 50/60Hz.
Output Power: ≤150W.
Laser Module: RGB single-mode diode combination.
Laser Divergence: ＜1.6mrad (full angle).
Laser Beam Diameter: ≤6.5mm at the aperture.
Modulation Frequency: ≤100KHz.
Scanner System: AT25K galvanometer.
Scan Angle: ±30° (60° total).
DMX Channels: 30CH / 52CH optional.
Control Modes: Built-in MCU control system, ILDA standard 25-pin cable, Sound Control, Auto Run, DMX512, Master-Slave, and built-in SD card with rich animation, line, and text effects. Supports various beam effects, complex graphics, and broken-line effects, with hundreds of built-in animation programs. Compatible with Pangolin FB4/FB3 controllers and PC synchronization.
Product Size: L280 × W400 × H520mm (Vertical: L300 × W290 × H610mm).
Packing Size: L455 × W360 × H575mm.
Net Weight: 12kg.
Gross Weight: 13.5kg.
Applications: Bars, KTVs, live music bars, dance halls, hotel banquet halls, entertainment venues, etc.
