The Birth of the IP 18pcs 18w RGBWA UV LED Par
Where Innovation Begins: The Vision Behind a New Outdoor Fixture
Every successful lighting product starts with a need, and in the professional stage industry, outdoor fixtures face some of the toughest challenges. Music festivals, cityscape lighting, touring shows and open-air productions all demand lighting that is bright enough, stable enough and tough enough to survive extreme conditions such as rain, snow, heat and humidity. With these needs in mind, the R&D team at Blue Sea Lighting began asking a simple yet crucial question: “Can we create an outdoor Par light that performs flawlessly in any environment?” That question became the earliest spark behind what would later become the IP 18pcs 18w RGBWA UV 6in1 LED Par Light.
As the concept evolved, the team clarified the technical direction: deliver powerful output with 18 × 18W RGBWA UV 6-in-1 LEDs, provide a wider and smoother color-mixing experience, and build a truly reliable outdoor structure capable of long-term all-weather operation. They also determined that the fixture must offer a 50,000-hour LED lifespan, multiple beam angle options, a built-in temperature protection system and a flexible control scheme including stand-alone, master-slave, auto mode and DMX512. With every round of engineering discussions—about structural rigidity, heat-flow dynamics, waterproofing, PCB layout and optical stability—the blueprint became more mature. A new generation of outdoor LED Par lighting was ready to take shape, representing not only technical ambition but also Blue Sea Lighting’s dedication to excellence.
Structural Engineering and Precision Design: Building the Core Foundation
A reliable outdoor Par light must go far beyond brightness; structural engineering is the true foundation. To ensure long-term outdoor durability, the design team focused on three essential pillars: waterproofing, dust protection and heat dissipation. For waterproofing, we adopted a structural sealing approach by integrating high-precision silicone O-rings at all critical junctions—between the housing and lens, around screw interfaces and at every cable entry point. In some areas, a dual-seal system was added to extend waterproof performance over time. Even if the first seal aged slightly after long use, the second seal would continue to protect the interior. Waterproof cable glands further reinforced the fixture’s outdoor-grade reliability.
To strengthen protection around sensitive electronic components, selective potting techniques were applied. LED modules received thermal silicone gel to enhance heat transfer, while the driver and PCB areas were reinforced with epoxy or PU gel to shield against moisture, vibration and corrosion. This not only improved waterproof performance but also created a more efficient thermal pathway. Heat management itself follows an advanced engineering approach: the fixture uses a high-conductivity aluminum structure, optimized air-flow design and separated heat zones that prevent LED and driver heat buildup. With intelligent thermal monitoring, the IP 18pcs 18w RGBWA UV 6in1 LED Par Light maintains a stable, safe operating state even in demanding outdoor environments. This combination of engineering methods forms the powerful internal backbone of the product.
From Components to Assembly: The Real Production Process Behind the Fixture
Every fixture begins with strict incoming-material inspection. LED modules are tested for brightness consistency and spectrum range; drivers undergo stability checks for voltage and current output; aluminum PCBs are tested for thermal conductivity; and waterproof seals are inspected for elasticity and flawless mold shaping. Only components that meet our standards are authorized to enter assembly.
On the assembly line—shown clearly in your photos—workers follow standardized procedures with precision. LED modules are first coated with high-quality thermal paste and mounted firmly onto designated cooling surfaces within the housing. This ensures efficient heat transfer during operation. Next, technicians solder high-temperature wires according to the circuit design, securing each connection to prevent looseness during vibration or transport. In the mid-assembly stage, the main control board is installed, along with the driver connections, DMX signal lines, temperature sensor and internal wiring harness.
The scene in the second image shows workers carefully arranging and securing wire paths—a vital part of maintaining long-term reliability. After all internal components are fixed, the lens, housing cover and O-rings are mounted and locked into place. Each step is designed to guarantee absolute structural integrity and waterproof performance. These processes collectively turn raw components into a sophisticated professional lighting fixture.
Multi-Stage Quality Inspection: Ensuring Every Fixture Meets Professional Standards
At Blue Sea Lighting, quality is not a slogan—it is a system. Every IP 18pcs 18w RGBWA UV 6in1 LED Par Light must pass multiple layers of inspection before leaving the factory. The first step is power-on testing during assembly and after full assembly. Here, technicians verify LED consistency, color-mixing performance, driver stability, current balance and overall system response. Any abnormality is corrected immediately.
Next comes the aging test—one of the most crucial quality-control phases. Fixtures are placed on aging racks and powered continuously for 24 to 72 hours. During this period, temperature changes are logged, LED behavior monitored, and the system inspected for possible failures such as dimming, dead LEDs or unstable drivers. Only lights that pass this long-term endurance verification move on to waterproof testing. Specialized IP-grade simulation equipment applies water spray, moisture exposure and environmental cycling to ensure reliable sealing. After the test, units are inspected internally for any trace of water intrusion. The final stage is cosmetic and structural inspection: housing finish, screws, labels, ports and lens clarity must all meet strict standards. Through these steps, we guarantee that every fixture shipped represents genuine professional quality.
From Factory to Stage: A Fixture Built to Perform Anywhere

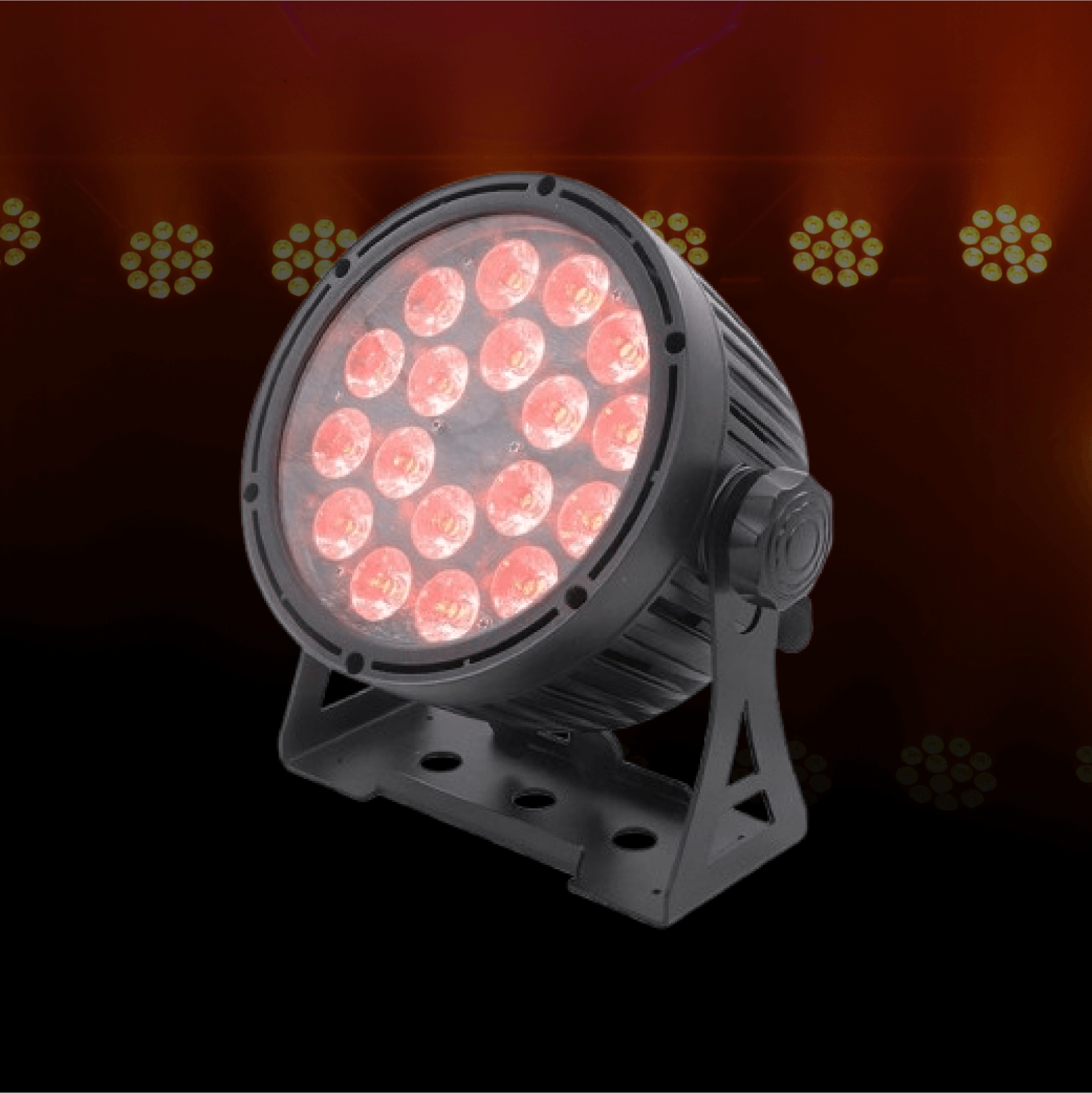

When all testing and inspections are complete, a true professional outdoor lighting fixture is born. The IP 18pcs 18w RGBWA UV 6in1 LED Par Light offers vibrant output, smooth color transitions, UV enhancement, multiple beam angles and versatile control options through DMX512 or stand-alone modes. Thanks to its intelligent thermal management and rugged waterproof housing, it performs confidently in outdoor shows, touring events, architectural lighting, festivals and large-scale installations.
Its reliable outdoor design—combined with powerful LEDs and precision optical engineering—allows lighting designers to create atmospheric washes, intense color scenes and dynamic special effects across a wide range of environments. Whether mounted on truss, placed on the ground or used for architectural projection, the fixture demonstrates consistent brightness, long lifespan and stable performance. Behind every beam of light lies the craftsmanship, engineering excellence and dedication of Blue Sea Lighting, turning an idea into a product that brings creativity and professional beauty to real-world stages.
