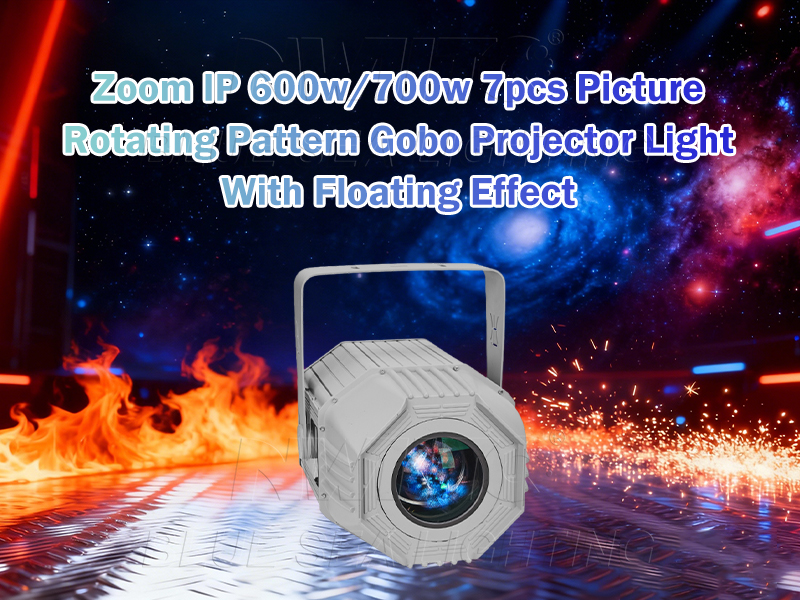

High-Performance Outdoor Gobo Projector

A powerful and versatile lighting fixture designed for professional stage and architectural applications.

Featuring 600W/700W high-output light source, IP66 protection, and precise optical control, it delivers stable performance in demanding environments while ensuring sharp projection and long service life.

Zoom IP 600w/700w 7pcs Picture Rotating Pattern Gobo Projector Light With Floating Effect Application Scenarios
Bluesea Lighting's Zoom IP 600w/700w 7pcs Picture Rotating Pattern Gobo Projector Light With Floating Effect is ideal for: architectural projection, landmark lighting, cultural tourism projects, building façade projection, theme parks, festivals and outdoor landscape lighting, creating vivid image projection and dynamic visual effects.

1. Light Source & Power

Input Voltage: AC100–240V / 50–60Hz
Maximum Power: 620W / 720W
Power Factor: PFC >0.98
Light Source Type: 600W / 700W Modular Light Source
Lamp Color Temperature: 7500K

2. Optics & Projection Effects

Beam Angle: 6°–50° Electronic Zoom
Electronic Focus: 10%–0–10%
Spot Shape: Circular
Flicker Speed: 1–20Hz / second
Modulation Curve: Level 1

Color Wheel: 8 Colors + White Light
Light Cutting System: 8 Controllable Blades (Irregular Shape Splicing)
Pattern:1 Rotating Gobo Wheel + 7 Gobos + White Light
Pattern Rotation: Bi-directional Rotation + Positioning Function
Prism Effect: Rotating 4-Prism (Customizable)

3. Control & Operation

Control Channels: 11–30 Channels
Control Protocol: DMX512 / RDM Bidirectional Control
Connection Method: Daisy-chain Connection

Display:LCD Color Screen (Chinese/English Switchable, Screen Flip)
Signal Interface: Waterproof Connector + XLR Male/Female

Control System: Manual Control + Self-editing System
Offline Mode: Automatic Operation
Adjustment Angle: Tilt >90°
Temperature Control: Real-time Monitoring
Noise Level: 35dB (0.5m)

4. Build, Cooling & Environment

Housing Material: Aluminum Alloy
Heat Dissipation: Conductive Cooling System
Ventilation:Vent Valve + Air Vents

Protection System: Overheat Protection + Moisture-proof Treatment
Power Device: Full Power Overheat Protection
Salt Spray: UV Resistant & Corrosion Resistant Coating

Operating Temperature: -25°C ~ +35°C
Protection Rating: IP66

Quick Image Change Window
Adjustment Method: Manual

Product Size: 547.5 × 298 × 358.6mm
Net Weight: 28KG

Zoom IP 600w/700w 7pcs Picture Rotating Pattern Gobo Projector Light With Floating Effect Benefits

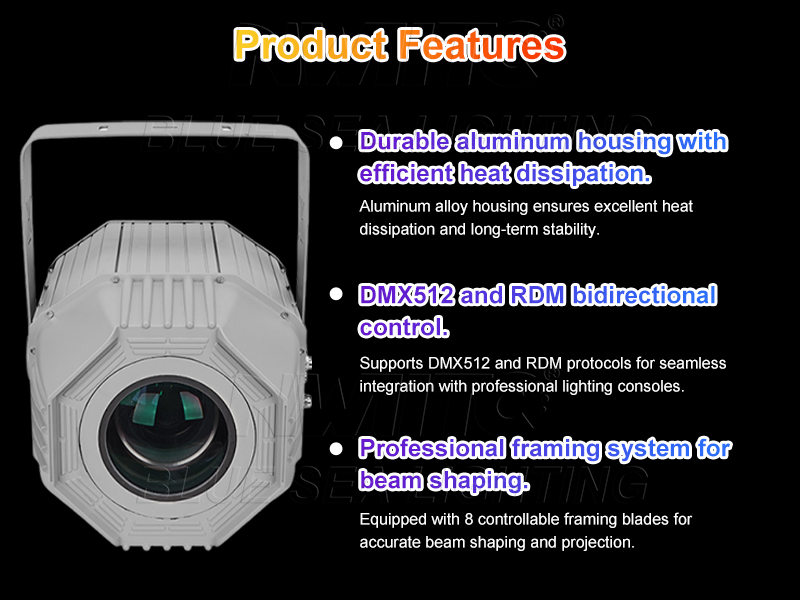

Professional Design & Advanced Control Features

Built with a durable aluminum housing, the fixture ensures efficient heat dissipation and long-term reliability.

SupportingDMX512 and RDM bidirectional control, along with a professional framing system, it allows precise beam shaping and seamless integration into complex lighting setups.

IP66 Waterproof for Outdoor Environments

Designed for demanding outdoor conditions, the projector features an IP66waterproof rating that ensures reliable performance in rain, humidity and harsh weather.

The robust structure makes it suitable for permanent outdoor installations, landscape lighting and architectural projection projects.

Dynamic Floating Projection Effects

Equipped with an advanced floating effect system, the projector creates vivid, multi-layered visuals with smooth motion and depth.

From floral patterns to snowflake projections, the effect enhances stage atmosphere and brings creative lighting designs to life with strong visual impact.

Flexible 6°–50° Electronic Zoom

The projector features a 6°–50° electronic zoom system with electronic focus, allowing flexible adjustment for different installation heights and projection distances.

This ensures clear image projection and accurate beam controlfor architectural lighting and outdoor projection mapping.

Why Choose Bluesea Lighting's Zoom IP 600w/700w 7pcs Picture Rotating Pattern Gobo Projector Light With Floating Effect?

High-End Stage Lighting Quality — Without the High-End Price

With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, andcompetitive pricingto deliveroutstanding valuefor lighting professionals worldwide.

Dynamic Rotating Gobo Projection Effects

Equipped with a rotating gobo wheel and multiple projection patterns, the fixture creates vibrant and dynamic visual effects.

Ideal for architectural projection, cultural tourism lighting, landmark decoration and stage events, it allows buildings and landscapes to display creative graphic projections.

Creative Architectural Projection Effects

The projector creates vivid and large-scale architectural projection effects, transforming buildings into dynamic visual displays.

With sharp image clarity and vibrant colors, it is ideal for landmarks, cultural tourism lighting, festivals, theme parks and outdoor events, bringing creative patterns, graphics and animations to architectural surfaces.
