4-in-1 Beam · Spot · Wash · Framing

CombinesBeam, Spot, Wash, and Framing functions in one fixture, delivering strong versatility for professional stage, concert, and architectural lighting applications.

Supports fast mode switching to meet different creative demands within a single show or installation.

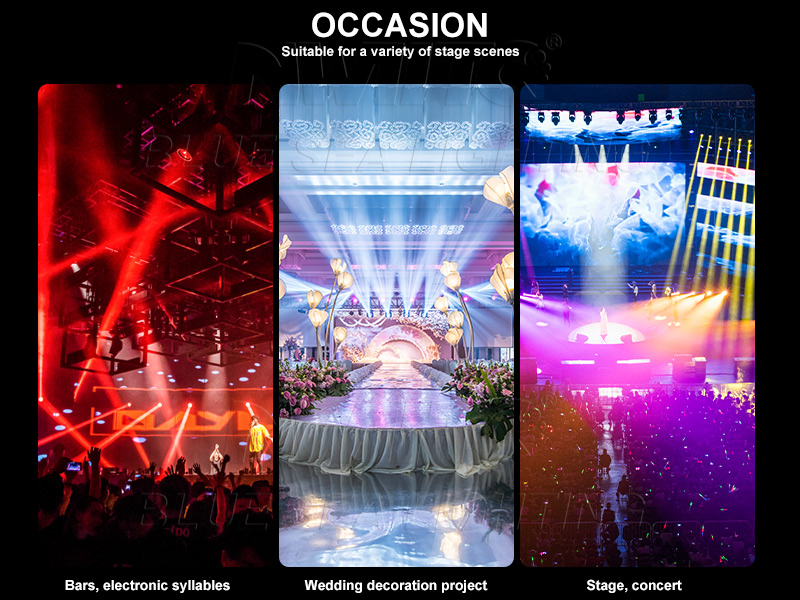

Wide Application Scenarios

Designed for bars, concerts, weddings, and large-scale stage projects, providing consistent performance and flexible visual effects across different event environments.

Ideal for both indoor and outdoor use where precision lighting and visual impact are required.

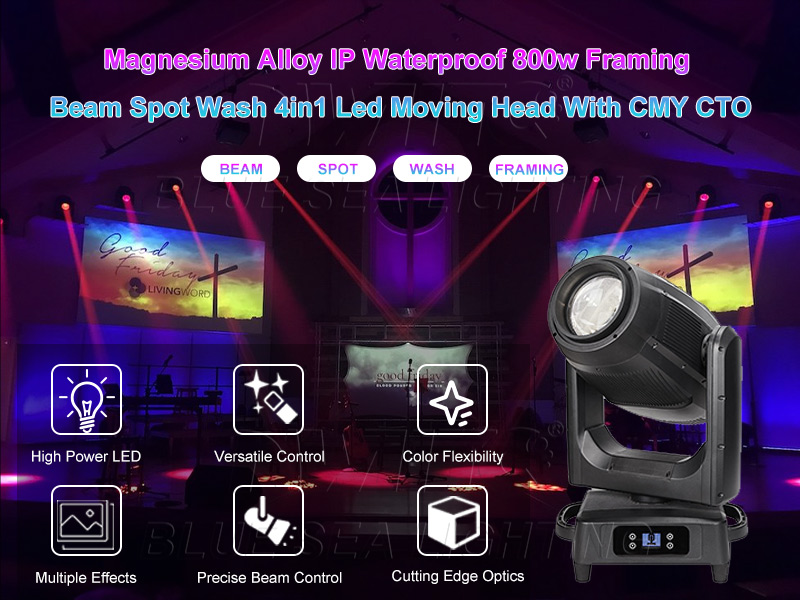

Magnesium Alloy IP Waterproof 800w Framing Beam Spot Wash 4in1 Led Moving Head With CMY CTO Application Scenarios
Bluesea Lighting's Magnesium Alloy IP Waterproof 800w Framing Beam Spot Wash 4in1 Led Moving Head With CMY CTO is ideal for: concert stages, touring shows, outdoor music festivals, theaters, landmark lighting projects, and architectural lighting applications.

1. Power & Light Source

Input Voltage: AC100–240V, 50/60Hz
Rated Power: 950W
Light Source: 800W LED module
LED Lifetime: 50,000 hours
Color Temperature: 8000K
CRI: Ra>75 (standard), Ra>90 (high rendering)

2. Optics & Color System

Color System: 5 colors + white
Color Mixing: Independent CMY color mixing system
CTO Adjustment: Independent CTO 2800–6000K linear adjustment
Beam / Spot / Wash Angles:
• Beam mode: 2°–6°
• Spot mode: 10°–48°
• Wash mode: 0°–52°

3. Effects & Framing

Prism Disk: Bi-directional rotating 5-prism system
Effect Disk: Dynamic flame, gurgling water, and other effects
Fixed Gobo: 6 gobos + white circle
Rotating Gobo: 7 gobos (pluggable) + 1
Framing System: 4 independent blades, each rotatable 180°
Aperture: 5%–100% smooth adjustment
Frost / Atomization system included

4. Control, Movement & Protection

Control Mode: DMX512, RDM
Channel Mode: 34CH
Display: LCD screen, CN/EN, 180° rotatable
Pan / Tilt: 540° / 270° (16-bit precision)
Dimming: 0–100% linear
Strobe: Up to 25Hz, random & pulse strobe
Housing: Die-cast aluminum + aviation magnesium alloy
Protection Rating: IP65
Working Temperature: 0–45℃
Size: 42 × 28 × 68 cm
Net Weight: 26.7 kg

Magnesium Alloy IP Waterproof 800w Framing Beam Spot Wash 4in1 Led Moving Head With CMY CTO Benefits

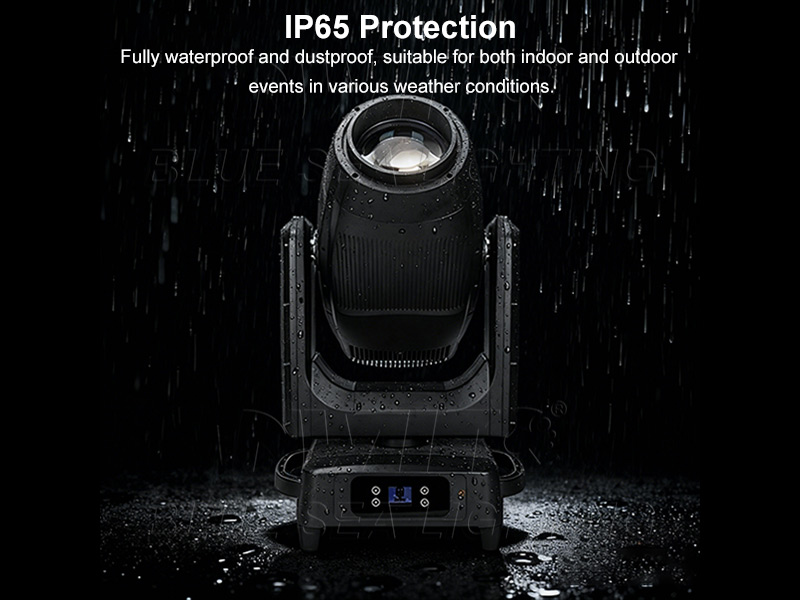

IP65 Waterproof Protection

Features afully waterproof and dustproof design, ensuring reliable operation in outdoor environments, rain, humidity, and complex weather conditions.

Well suited for touring productions, outdoor stages, and permanent exterior installations.

Multiple Dynamic Effects

Supportsrotating prisms, dynamic flame simulations, water ripple effects, and other visual elements to enhance stage depth and movement.

Creates rich, layered lighting scenes that elevate audience engagement.

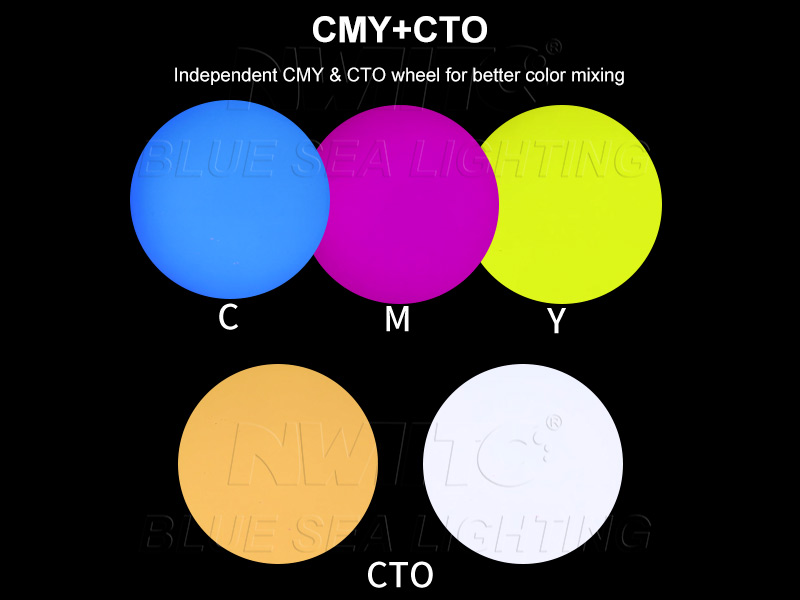

CMY + CTO Color Mixing

Built with independent CMY and CTO systems for smooth color mixing and precise color temperature adjustment.

Delivers natural tones and accurate color control for stage, broadcast, and architectural lighting needs.

Gobo Wheel & Glass Gobos

Features a rotating gobo wheelwithhigh-quality glass gobosforcrisp projectionandsmooth rotation effects.
Combined with color mixingandmovement, the gobo system adds motion,texture, and storytelling elements to lighting designs.

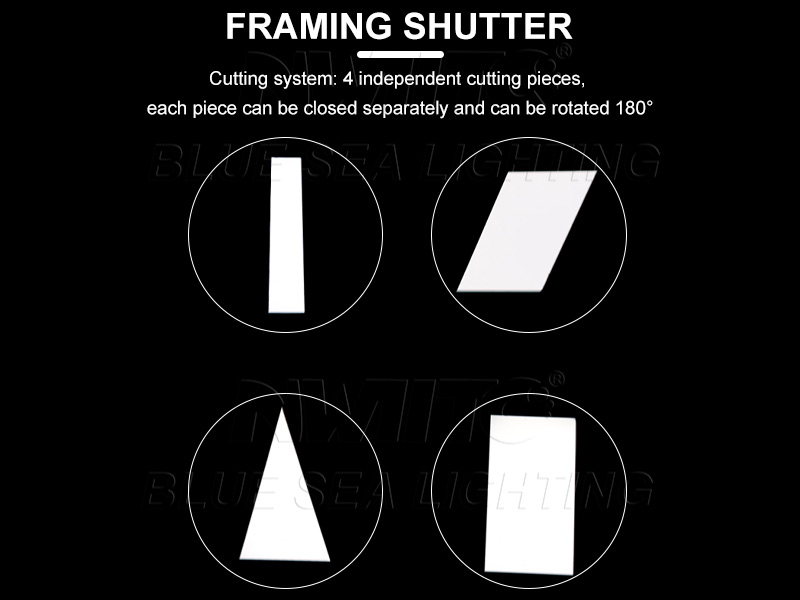

Framing Shutter System

Equipped withfour independent framing shutters, each blade can be individually adjusted and rotated up to 180°for precise beam shaping.


This system enables sharp edge control, ideal for framing stages, walls, logos, and architectural elements with clean light boundaries.

Why Choose Bluesea Lighting's Magnesium Alloy IP Waterproof 800w Framing Beam Spot Wash 4in1 Led Moving Head With CMY CTO?

High-End Stage Lighting Quality — Without the High-End Price

With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, andcompetitive pricingto deliveroutstanding valuefor lighting professionals worldwide.

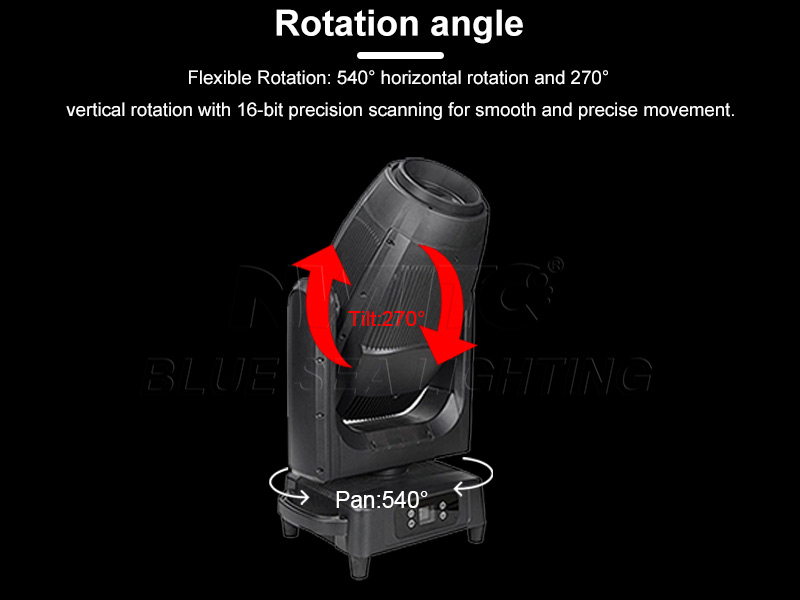

Wide Rotation Range

Supports540° panand270° tilt movement with 16-bit precision scanningfor smooth, accurate positioning.

Fast and stable rotation ensures reliable performance in dynamic lighting scenes and complex programmed movements.

Precise Beam Control

Offers adjustable beam angles from2°–6° in BEAM modeand10°–48° in SPOT mode, delivering sharp and consistent output.

This flexibility allows seamless switching between narrow aerial beams and wide, even coverage depending on application needs.

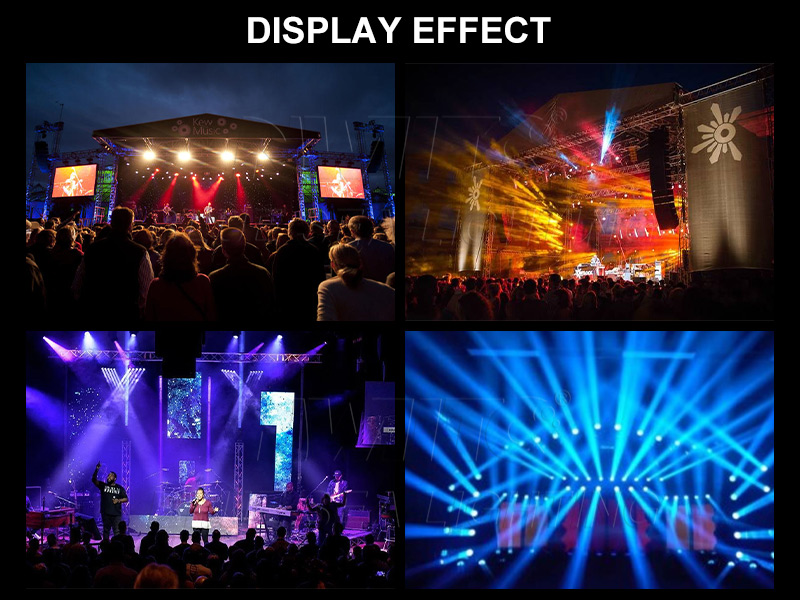

Live Performance Display Effects

Designed forconcerts, festivals, and large venues, producing powerful beams,vivid colors, and layered visual impact.

The fixture integrates easily into professional lighting systems, supporting creative programmingforimmersive live experiences.
