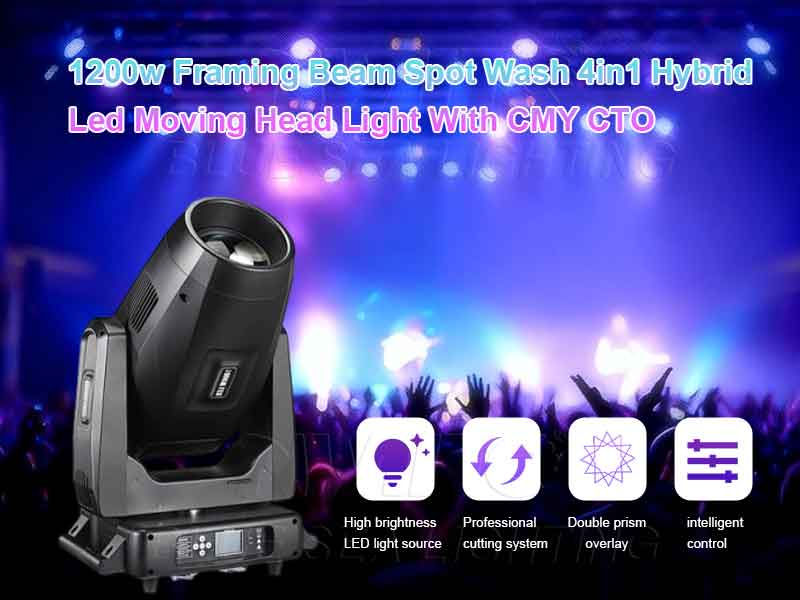

1200w Framing Beam Spot Wash 4in1 Hybrid Led Moving Head Light With CMY CTO

BLM1200PB

⭐ High Brightness & Powerful Output: This 1200W 4-in-1 moving head light with a 1020W LED module delivers up to 38000LM luminous flux, easily meeting the lighting needs of large venues.
⭐ Professional & Accurate Color Performance: Equipped with independent CMY color mixing and linear CTO adjustment, plus a high CRI mode (Ra>90) for true-to-life color reproduction.
⭐ Multi-Effect Integration & Versatile Applications: Supports dual prisms, dual gobo wheels, an effect wheel, and precise framing shutters to create beam, wash, gobo, and framing effects.
⭐ Precise & Stable Control: Features 16-bit precision 540° pan/270° tilt movement, motorized zoom, and linear dimming for smooth and flicker-free operation.
⭐ Durable & Reliable Design: With an IP20 rating, 50,000-hour LED lifespan, and flame-retardant, high-temperature resistant housing, it suits various performances and fixed installations.

Quantity:

Contact Now

add to cart

1200w Framing Beam Spot Wash 4in1 Hybrid Led Moving Head Light With CMY CTO Product Description
Overall Introduction The1200W Framing Beam Spot Wash 4in1 Hybrid LED Moving Head Light is an all-in-one professional stage lighting fixture designed for versatility and high performance. It combines beam, spot, wash, and framing functions into a single unit, making it ideal for concerts, theaters, events, and large-scale productions.
1200w Framing Beam Spot Wash 4in1 Hybrid Led Moving Head Light With CMY CTO Application Scenarios Bluesea Lighting's 1200w Framing Beam Spot Wash 4in1 Hybrid Led Moving Head Light With CMY CTO is ideal for: Large concerts, live music festivals, theater and opera stages, TV studios, landmark light shows, theme parks, corporate events, and high-end fixed installations.
1200w Framing Beam Spot Wash 4in1 Hybrid Led Moving Head Light With CMY CTO Technical Specifications
1. Light Source & Brightness Main Light Source: 1020W high-power LED module Rated Power: 1400W Luminous Flux: 38000LM LED Lifespan: 50,000 hours Color Rendering Index: Standard mode Ra>70, high CRI mode Ra>90 Color Temperature: 6500K, with independent CTO 2800K-6500K linear adjustment 2 Optics & Effects Beam Aperture: 5.5°~60° fast motorized linear zoom Color Mixing: Independent CMY color mixing system Prisms: Rotating 3-faced prism + 6-faced linear prism, overlay supported Gobo Wheels: 11 fixed gobos + 7 pluggable rotating gobos Framing System: 4 individually positionable shutter blades (±90° rotation) Additional Effects: Dual frost system, 6%~100% iris adjustment, strobe up to 25Hz	3. Control & Modes Channel Mode: 36CHs Control Methods: DMX512, RDM, Auto Mode, Master-Slave, Sound Activation Display System: 2.8-inch touch LCD, bilingual (CN/EN), 180° rotation Pan/Tilt:540° pan / 270° tilt (16-bit precision scanning) with magnetic encoding positioning 4. Build & Protection Signal Interface: 3-pin XLR (5-pin XLR optional) Protection Rate: IP20 Working Environment: 0-45℃ Housing: Flame retardant, high temperature resistant, with folding clamp Dimensions: 510×345×800mm (product) / 730×690×590mm (carton) Weight: 43KG (net) / 51.5KG (gross)
1200w Framing Beam Spot Wash 4in1 Hybrid Led Moving Head Light With CMY CTO Benefits

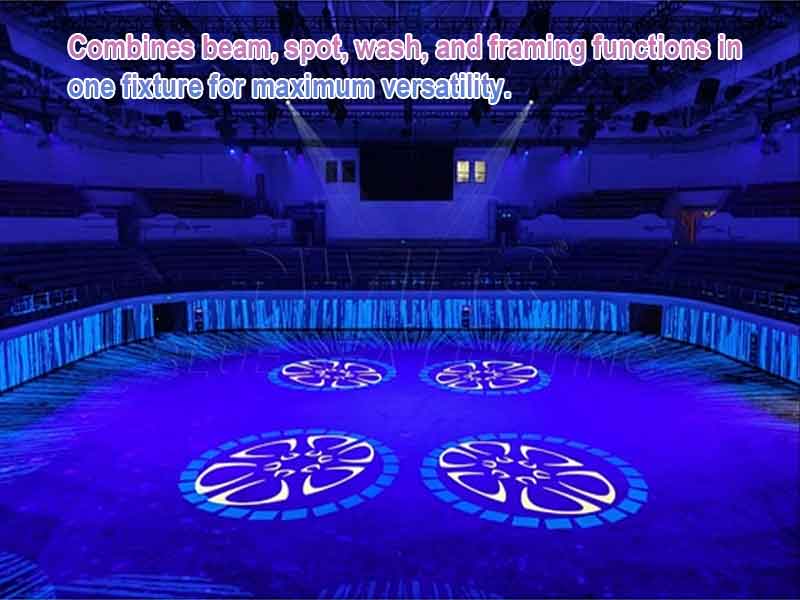

4-in-1 Versatile Functionality This hybrid light merges beam, spot, wash, and framing capabilitiesin one fixture, eliminating the need for multiple separate lights. It adapts seamlessly to various stage design needs, from sharp beam effects to soft wash lighting and precise framing, maximizing creative flexibility.

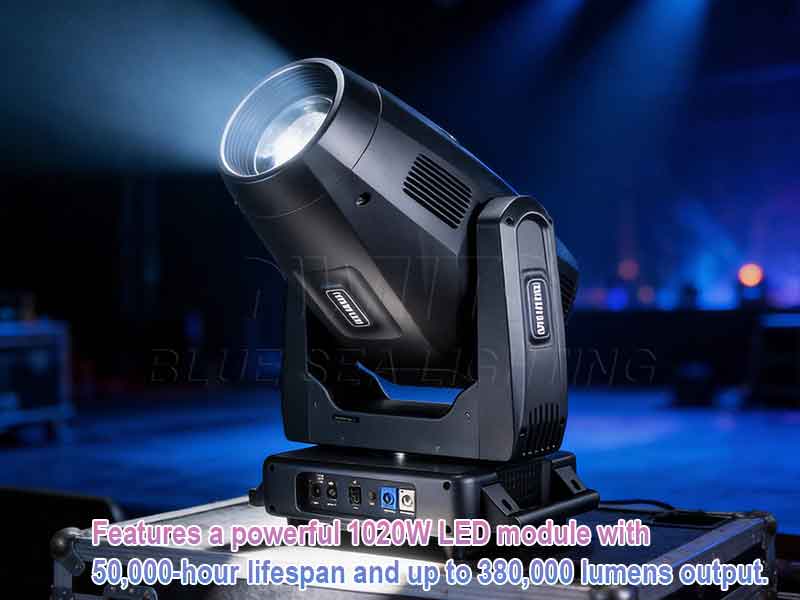

	High-Power Light Source & Core Performance Equipped with a powerful 1020W LED module, this fixture delivers a maximum luminous flux of 38000LM, ensuring exceptional brightness even in large venues. With a long LED lifespan of 50,000 hours, it offers reliable, low-maintenance operation for extended use.

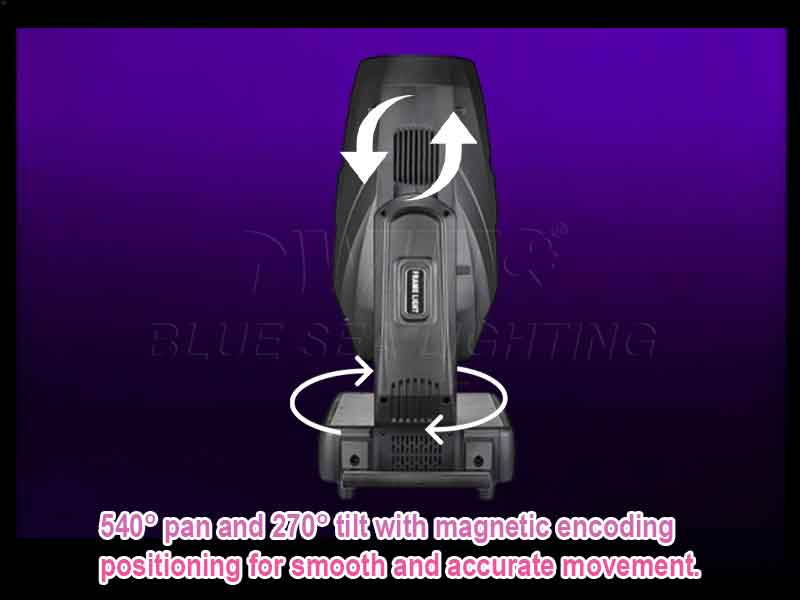

Smooth & Precise Movement Control Featuring540° pan and 270° tilt movementwithmagnetic encoding positioning, the light delivers ultra-smooth, accurate scanning and positioning. The five-phase motor ensures stable, flicker-free operation, even during fast-paced choreographed movements.

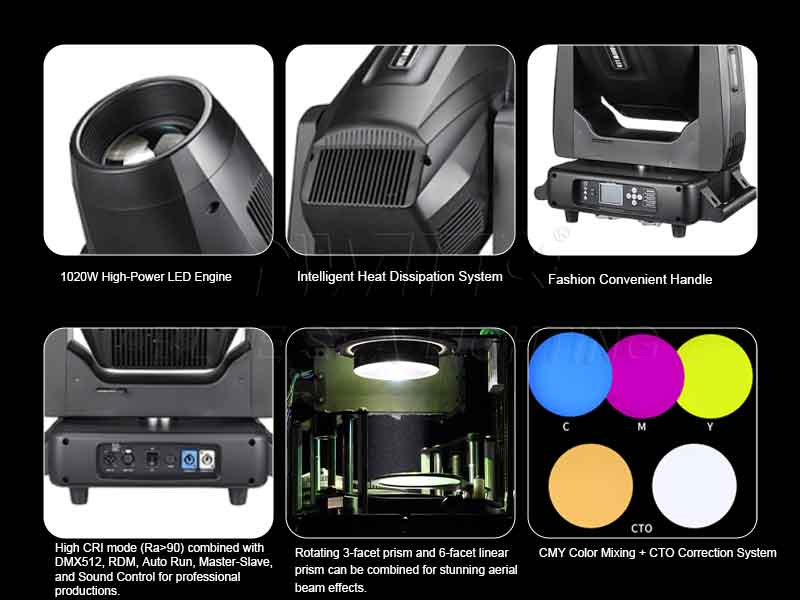

	Advanced Optical & Control System This overview highlights the light’s core components: 1020W high-power LED engine,CMY color mixing + CTO correction, dual prisms, high CRI (Ra>90), multi-mode control interfaces, and intelligent heat dissipation.
Why Choose Bluesea Lighting's 1200w Framing Beam Spot Wash 4in1 Hybrid Led Moving Head Light With CMY CTO? High-End Stage Lighting Quality — Without the High-End Price With19 years of professional stage lighting manufacturing experience,Bluesea Lightingcombinespremium quality,innovative design, andcompetitive pricingto deliveroutstanding valuefor lighting professionals worldwide.

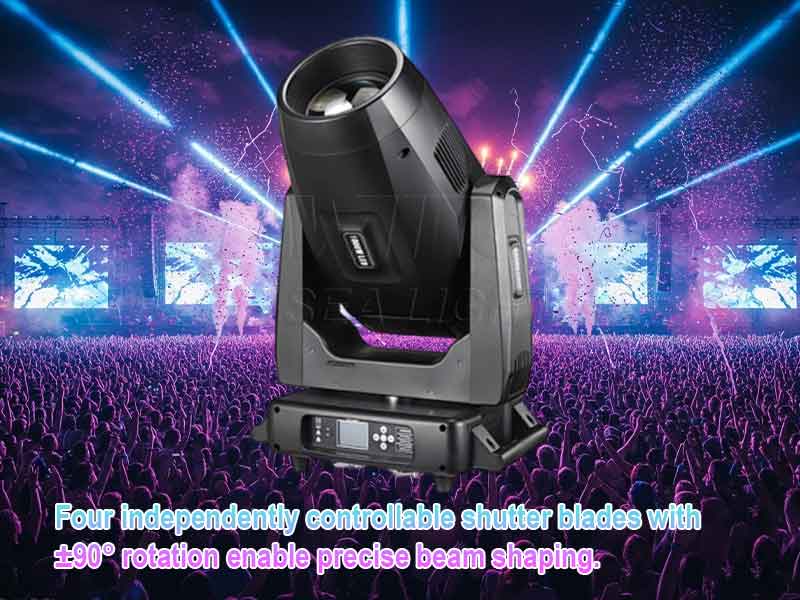

Precise Framing & Beam Shaping System This moving head light features four independently controllable shutter blades, each rotatable ±90°, enabling precise beam shaping and framing. Designed for live performances, it creates sharp, customizable light beams that enhance the visual impact of concerts and large-scale events.

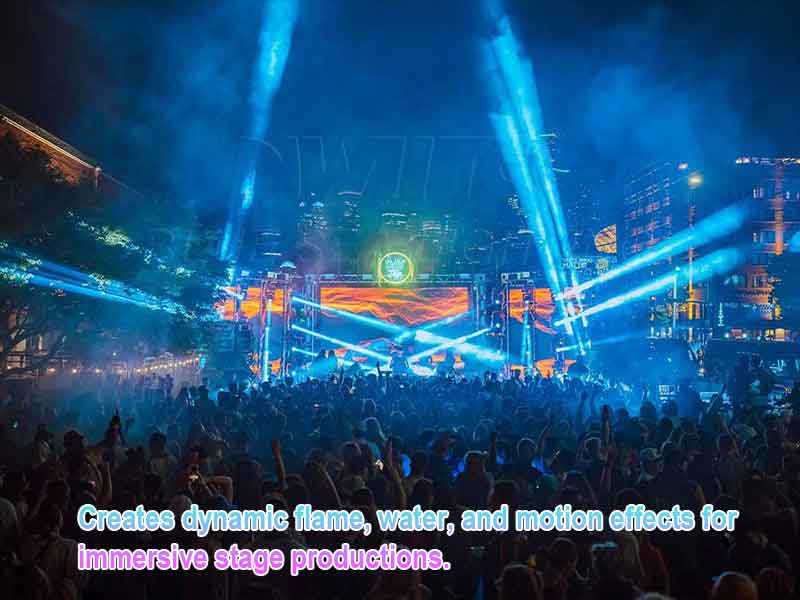

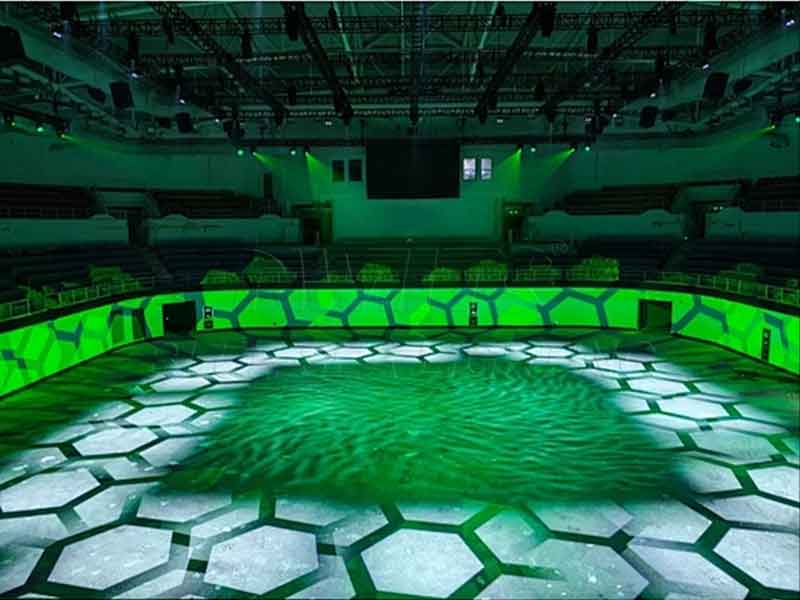

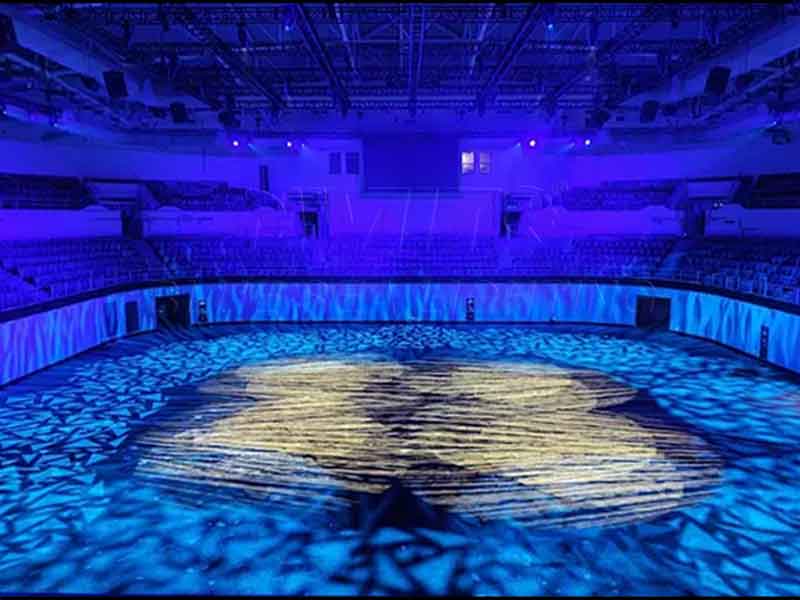

	Immersive Stage Effects Featuresstrobe, iris and frost functions, and creates vivid effects like simulated flames and flowing water patterns. It delivers rich visual experiences to liven up various performance scenes.
