LED Kinetic Ball
LED Kinetic Ball

LED Kinetic Ball

Model NO.
BKB01
Quantity:

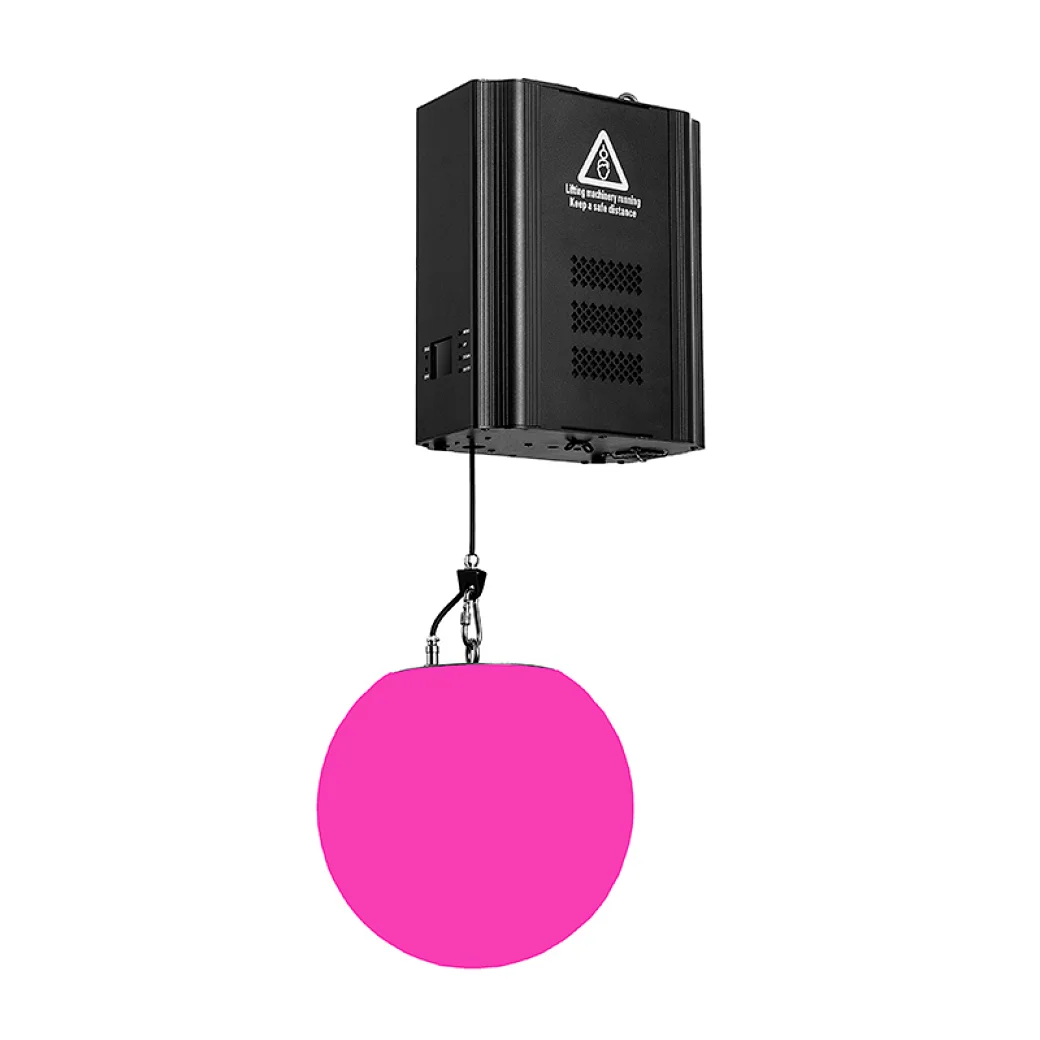

LED Kinetic Ball
Model: BKB01(3m)
            BKB02(6m)
            BKB03(9m)
            BKB04(12m)

Technical Parameters:
One winch+ one ball
Input Voltage: AC100V-240V,50/60HZ
Total power: 100W
Activity schedule: 3 meters/6 meters/9 meters/12 meters optional, can be customized
Color: red/green/blue
Maximum load: ≤2KG
Speed: ≤1.2m/s
Control method: DMX512, ArtNet
Control channel: 9 channels
Connector: 3-pin/5-pin XLR input/output
Information screen: 4-digit digital tube display
Tensile life >500000 times
Protection level: IP20
Working environment: -25℃-45℃
Anti-fall protection: Physical braking, electronic protection
Installation method: vertical hoisting
Chassis size: 164mm*128mm*261mm
Chassis weight: 5.6kg
G.W.: 7kg
LED ball diameter: 12cm/15cm/20cm/25cm/30cm optional
