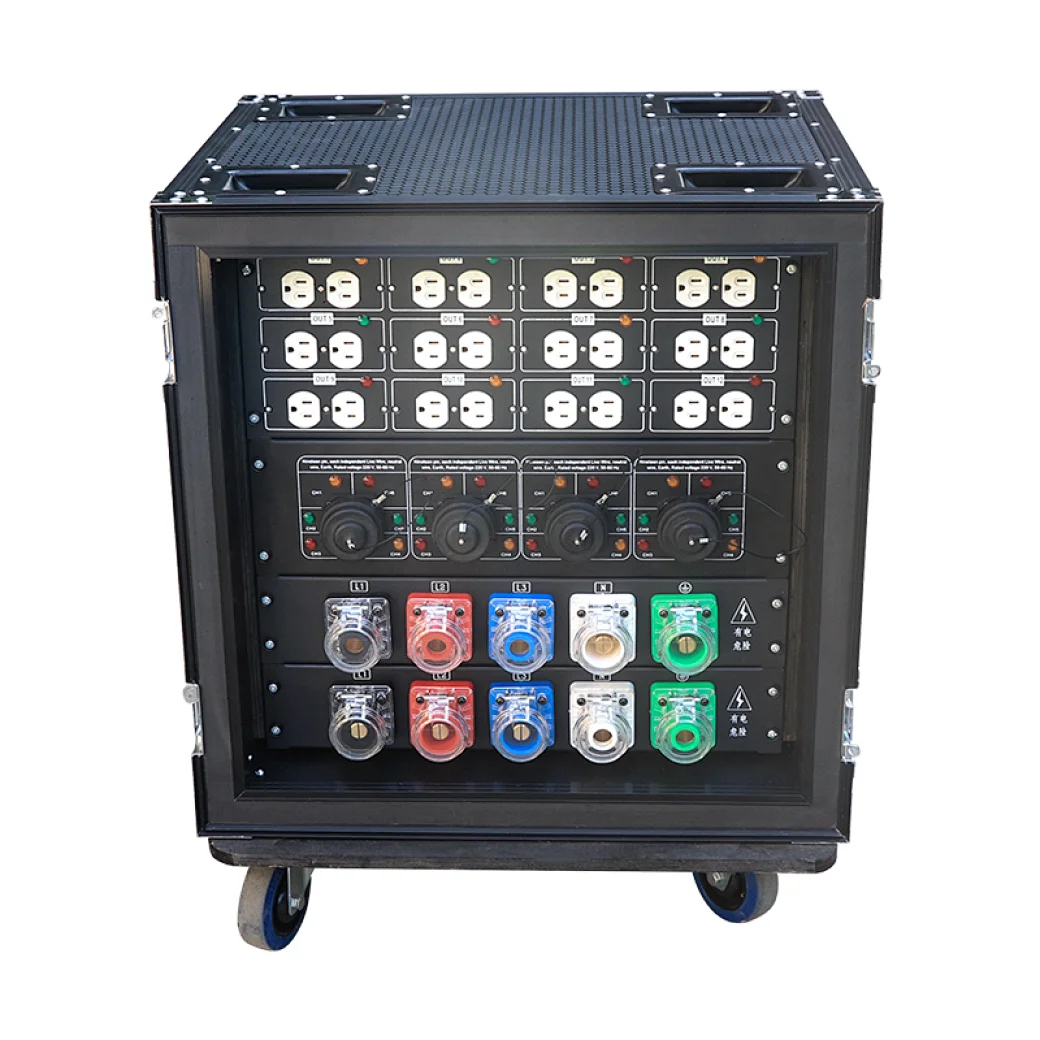

12 Road 20A American Plugs Output 4 Road 19 Pin input output Power Distributor
Model No.: BPD1220419+

Technical parameters:
1. Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%
2. Input current: self-locking 400A rhino plug (IN & OUT)
3. Display: With three-phase A.B.C direct-reading independent liquid crystal current and voltmeter display, various data can be monitored in real time without switching
4. Output: 12-way US plug + 4-way 19-pin output, each output has an indicator light display
5. Body: It adopts exquisite and durable double-layer shock-proof hexagonal plate; 11U standard cabinet.
6. Control system: the total control adopts 200A total air switch; each independent separate air switch is C20A, with overload and short circuit double protection

Normal working environment:
1. Ambient temperature: 0-±45C
2. Relative humidity: 40%-80%
Equipped with LED blue light work light
Product size (mm): L670×W600×H730
