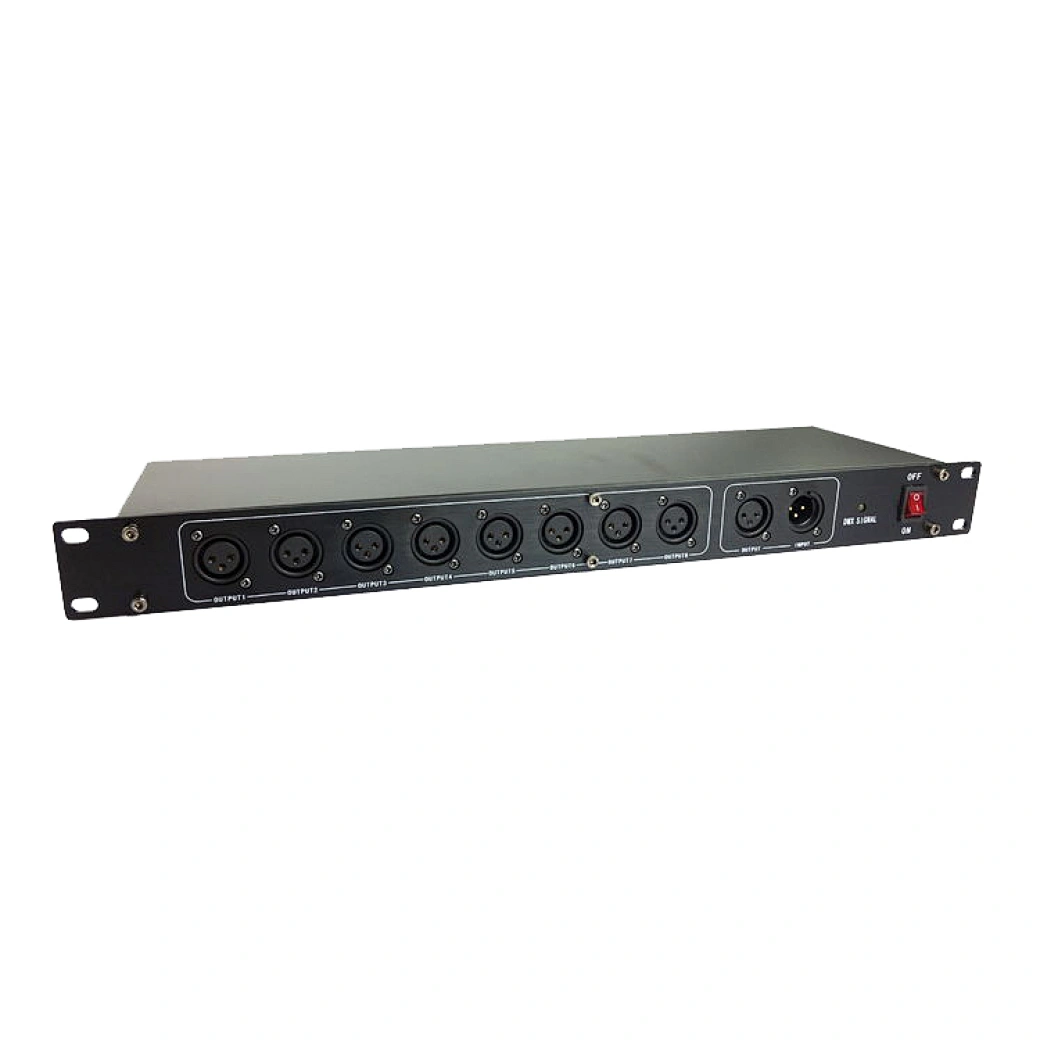

8 Channels DMX512 Splitter
8 Channels DMX512 Splitter

8 Channels DMX512 Splitter

Model NO.
BDS8
Quantity:

8 Channels DMX512 Splitter
Model No.: BDS8

Technical parameter:
Input Voltage: AC100-240Vac 50/60HZ
Power: 15W
Fully compliant to DMX-512 (1990) speciflcation.
Inputs and outputs are true RS-485 rated.
3 pin XLR input and a passive loop through.
8 way isolated DMX splitter output.
Input isolated from outputs over 1000VDC.
Outputs are isolated from each other over 1000VDC.
1U high 19 inch rack mount construction.
Size: 484*45*140mm"19"1U
Weight: 2.1kg
