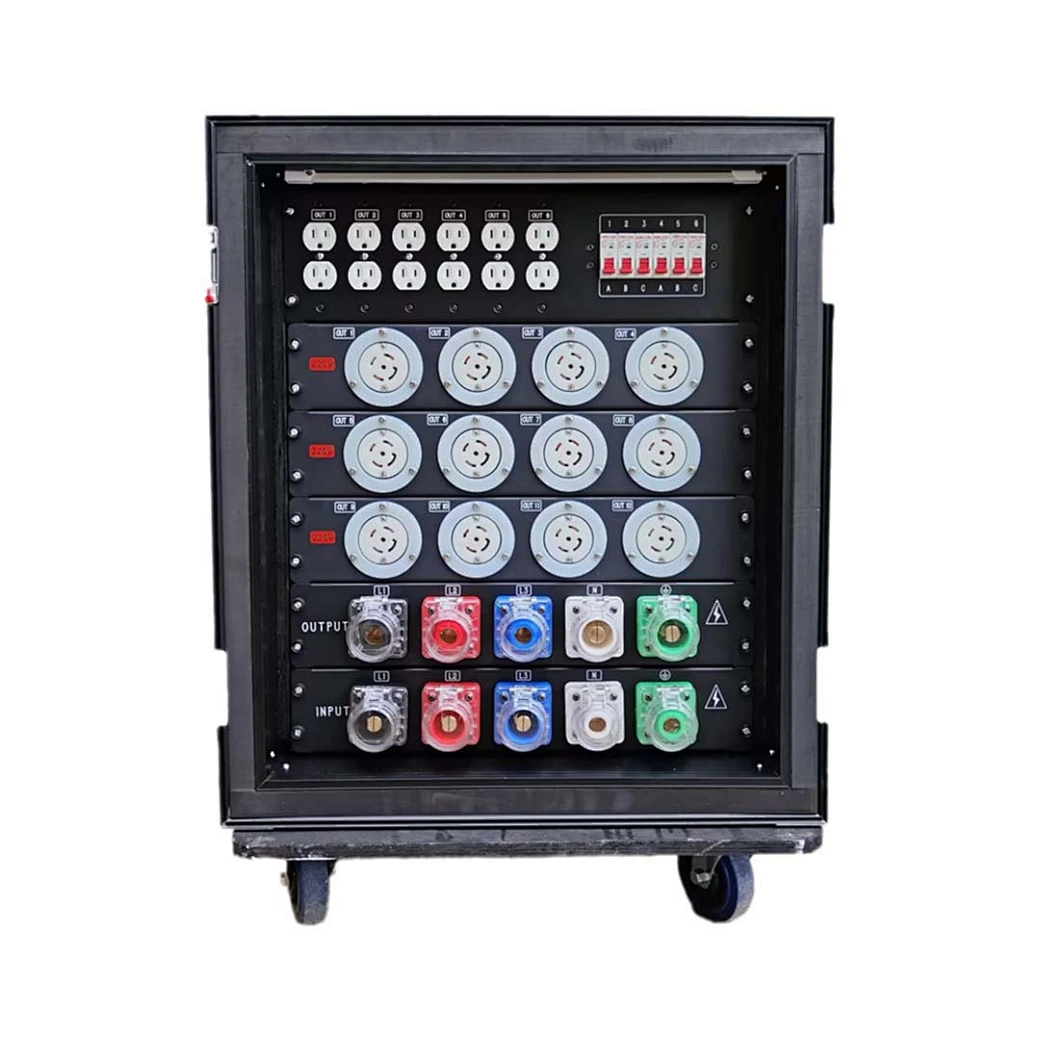

6-channel Edsion110V+12-channel L21-30 208V output Camlock plug in and out Power Distribution
BPDC17
6-channel Edsion110V+12-channel L21-30 208V output Camlock plug in and out Power Distribution
Quantity
6-channel Edsion110V+12-channel L21-30 208V output Camlock plug in and out Power Distribution
1. Power supply: three-phase five-wire AC220/208V±10%, frequency 50Hz/60Hz±5%
2. Input current: Self-locking staggered zero-fire 400A Rhino plug-in & reverse 400A
3. Display: Equipped with three-phase A.B.C direct-reading independent LCD current and voltmeter display; each data can be monitored in real time without switching.
4. Output: 6 heads Edsion (12CH) 110V + 12 heads L21-30 208V
5. Body: Made of exquisite and durable double-layer shock-proof hexagonal plate; 13U standard cabinet.
6. Control system: The main control adopts 250A 3P main circuit breaker; each independent circuit breaker is C20A 1P/32A 3P, with overload and short circuit dual protection.
Normal working environment:
1. Ambient temperature: 0-±45C
2. Relative humidity: 40%-80%
Equipped with LED blue light work light
Product size (mm): L680×W600×H850
