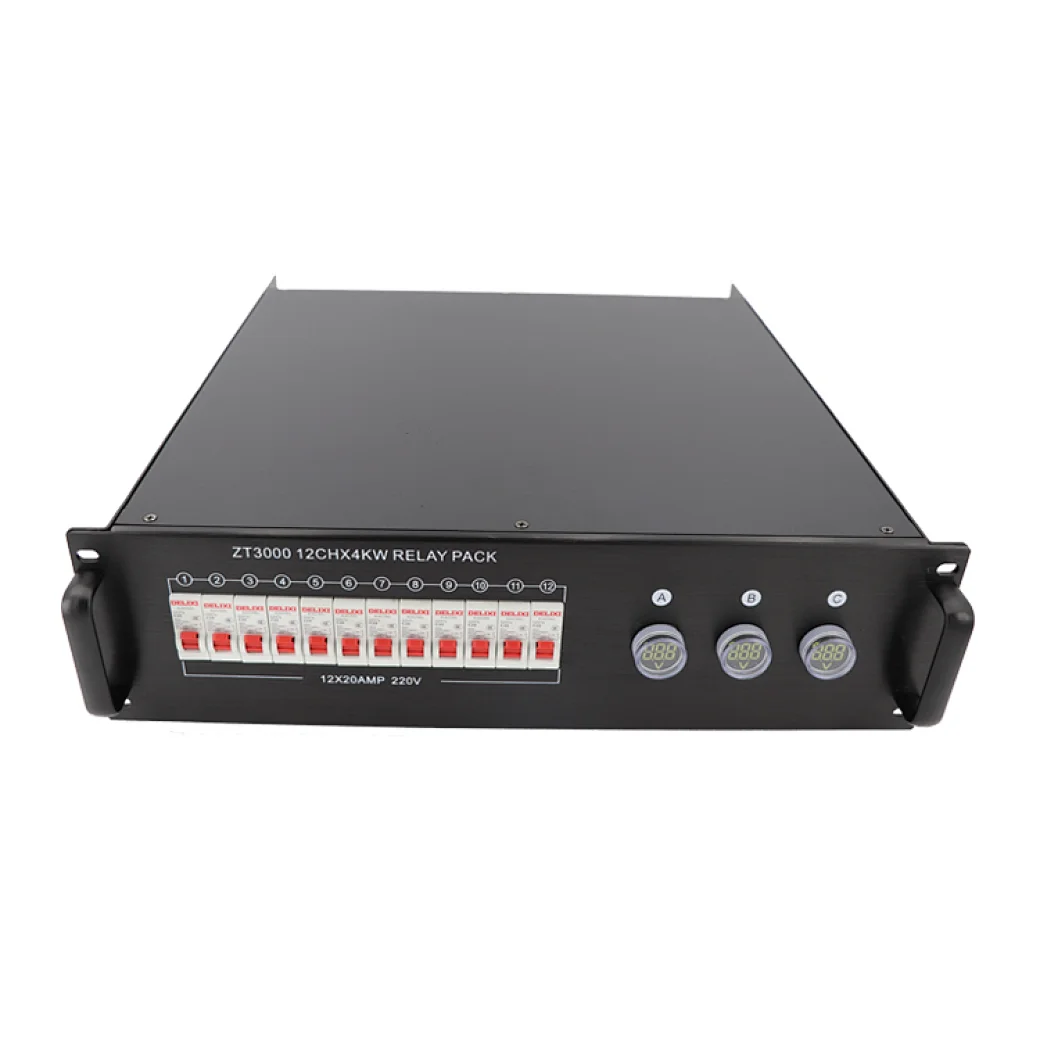

12 Road 4KW Power Distributor
12 Road 4KW Power Distributor
12 Road 4KW Power Distributor

12 Road 4KW Power Distributor

Model NO.
BPD-124KW
Quantity:

12 Road 4KW Pass Through Box
Model: BPB-124KW

Technical parameters:
Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%
Input current: 150A rhino plug/crimping terminal type, both are optional
Input specifications: National standard 10-16 square cable * 3 phase wireless
Display: With three-phase A.B.C direct-reading independent voltmeter display, various data can be monitored in real time without switching
Output: 12-way 40A bakelite female socket (2 cores); optional 10A; 32A (grounded)
Body: adopt international standard 3U cabinet.
Control: Each circuit is independently divided into C20A, with double protection of overload and short circuit. Normal working environment:
Ambient temperature: 0-±45C
Relative humidity: 40%-80%
Good ventilation, no large amount of smoke and dust, no battery interference
Product size: L500*W480*H133mm
Packing size: 575*530*205mm
Weight: 13.5kg
